Range Rover Evoque: Tow bar dimensions
Land Rover Range Rover Evoque L538 (2011–2018) Owner's Manual / Towing / Tow bar dimensions

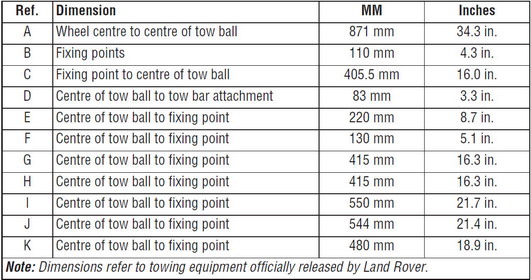

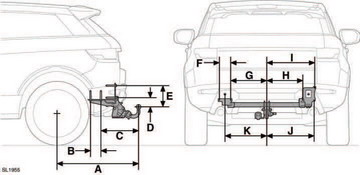

Tow bar dimensions
