Range Rover Evoque: Anti-Lock Control - Stability Assist
Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Brake System / Anti-Lock Control - Stability Assist
Accelerometer
Removal
NOTES:
Removal steps in this procedure may contain installation details.
LHD illustration shown, RHD is similar.
Vehicles with automatic transmission

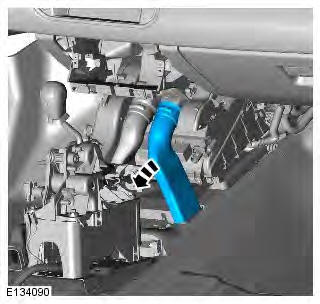

1. Refer to: Floor Console Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

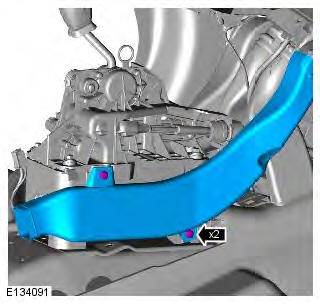

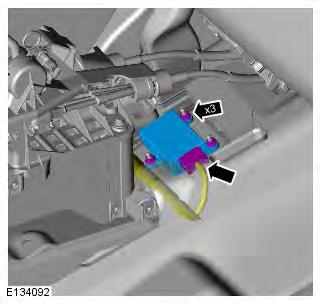

2. Torque: 9 Nm

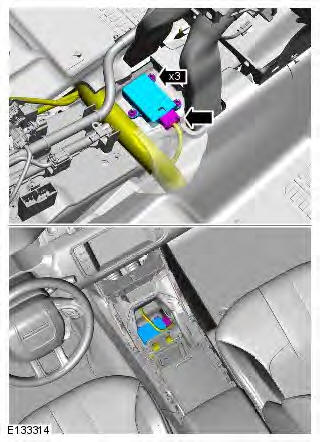

Vehicles with manual transmission
3. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
4.
5.
6. Torque: 9 Nm
Installation
1. To install, reverse the removal procedure.
2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
