Headlamp levelling (halogen only)

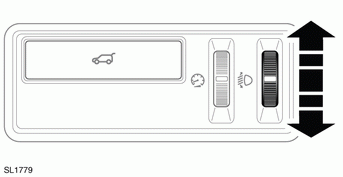

Use the headlamp levelling control to account for vehicle loading changes.
