Manual seats
Do not adjust
the seat while the
vehicle is moving. Doing so could
cause loss of vehicle control and
personal injury.

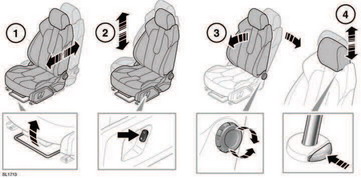

1. Forward and back adjustment.
2. Height adjustment.
3. Backrest adjustment.
4. Head restraint adjustment.
