Electric seats

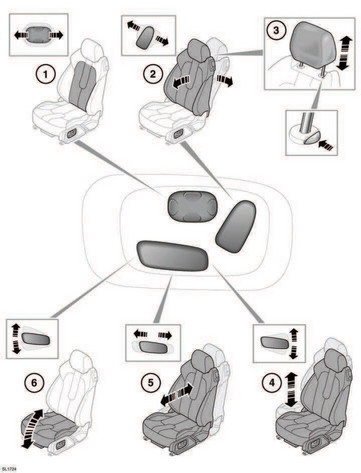

1. Lumbar support adjustment.
2. Backrest adjustment.
3. Head restraint adjustment.
4. Height adjustment.
5. Forward and back adjustment.
6. Cushion angle adjustment.
To adjust the seats, the Smart Key must be inside the vehicle.
Do not adjust
the seat while the
vehicle is moving. Doing so could
cause loss of vehicle control and
personal injury.
