Range Rover Evoque: Radiator
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is
always correct.
1. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2. Refer to: Cooling System Partial Draining, Filling and Bleeding
(303-03B Engine Cooling - GTDi 2.0L Petrol, General Procedures).
3. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and
Charging - GTDi 2.0L Petrol (412-00 Climate Control System -
General Information, General Procedures).
4. Refer to: Condenser - GTDi 2.0L Petrol (412-01 Climate Control,
Removal and Installation).
5. Torque: 5 Nm
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3709.jpg)
6.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3710.jpg)
7.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3711.jpg)
8. Torque: 5 Nm
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3712.jpg)
9.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3713.jpg)

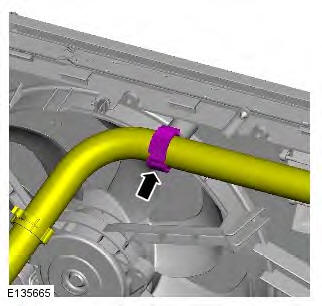

10.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3714.jpg)
11. CAUTION: Take extra care not to damage the
component.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3715.jpg)
12. NOTE: Do not disassemble further if the
component is removed for access only.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3716.jpg)
13. Torque: 3 Nm
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3717.jpg)
14. NOTE: This step is only required if a new
component is installed.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3718.jpg)
15.
![Range Rover Evoque. Engine Cooling - GTDi 2.0L Petrol](images/books/3096/evoque_radiator_3719.jpg)
Installation
1. To install, reverse the removal procedure.
