Range Rover Evoque: Active On-Demand Coupling Vehicles With: M66 6-Speed Manual Transmission AWD

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Driveline / Rear Drive Axle/Differential / Active On-Demand Coupling Vehicles With: M66 6-Speed Manual Transmission AWD

Removal

1. WARNING: Make sure to support the vehicle with axle stands. Raise the vehicle on a lift.

2. Remove the exhaust system.

Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).

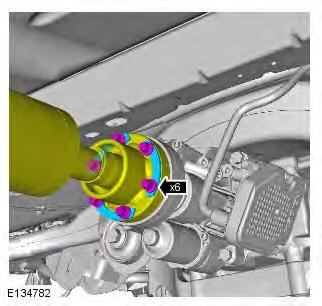

3. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

Range Rover Evoque. Rear Drive Axle/Differential

4.

Range Rover Evoque. Rear Drive Axle/Differential

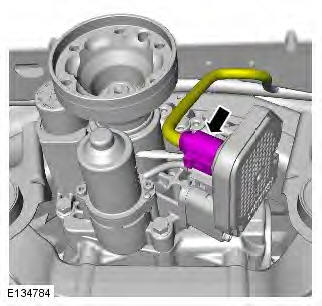

5. CAUTIONS:

Be prepared to collect escaping oil.

Remove and discard the O-ring seal.

Range Rover Evoque. Rear Drive Axle/Differential

Installation

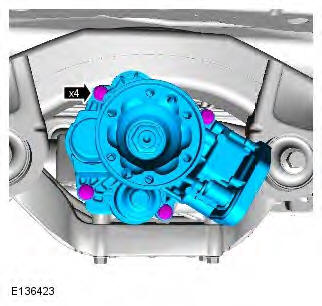

1. CAUTIONS:

Make sure that the area around the component is clean and free of foreign material.

A new O-ring seal is to be installed Lubricate the O-ring seals.

Only use the specified material to lubricate the seals.

Torque: 24 Nm

Range Rover Evoque. Rear Drive Axle/Differential

2.

Range Rover Evoque. Rear Drive Axle/Differential

3. CAUTION: Make sure that new bolts are installed.

NOTE: Tighten the retaining bolts working diagonally. Torque: 40 Nm

Range Rover Evoque. Rear Drive Axle/Differential

4. Check and top-up the active on-demand coupling fluid level.

Refer to: Active On-Demand Coupling Filling (205-02 Rear Drive Axle/Differential, General Procedures).

5. Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).

Drive Pinion Flange Vehicles With: M66 6-Speed Manual Transmission AWD

Special Tool(s)

205-053
Retainer, Drive Flange

Removal

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).

3. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

Range Rover Evoque. Rear Drive Axle/Differential

4. CAUTIONS:

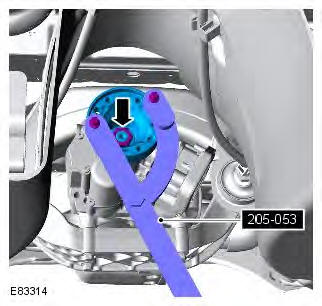

Discard the nut.

Be prepared to collect escaping oil.

Range Rover Evoque. Rear Drive Axle/Differential

Installation

1. WARNING: Make sure that a new nut is installed.

Range Rover Evoque. Rear Drive Axle/Differential

2. CAUTION: Make sure that new bolts are installed.

NOTE: Tighten the retaining bolts working diagonally. Torque: 40 Nm

Range Rover Evoque. Rear Drive Axle/Differential

3. Check and top-up the active on-demand coupling fluid level.

Refer to: Active On-Demand Coupling Filling (205-02 Rear Drive Axle/Differential, General Procedures).

4. Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).
