Range Rover Evoque: Driver Seat Cushion Vehicles With: Sports Seats

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Body and Paint / Seating / Driver Seat Cushion Vehicles With: Sports Seats

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Cushion Cover - Vehicles With: Sports Seats (501-10 Seating, Removal and Installation).

Vehicles with heated front seats

4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

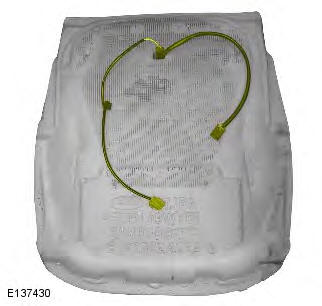

Range Rover Evoque. Driver Seat Cushion Vehicles With: Sports Seats

5.

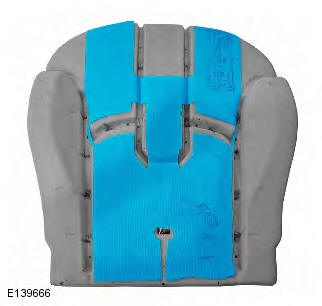

Range Rover Evoque. Driver Seat Cushion Vehicles With: Sports Seats

Installation

1. To install, reverse the removal procedure.

Driver Seat Cushion Heater Mat Vehicles With: Sports Seats

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Cushion Cover - Vehicles With: Sports Seats (501-10 Seating, Removal and Installation).

4. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Range Rover Evoque. Driver Seat Cushion Heater Mat Vehicles With: Sports Seats

5.

Range Rover Evoque. Driver Seat Cushion Heater Mat Vehicles With: Sports Seats

Installation

1. To install, reverse the removal procedure.
