Range Rover Evoque: Front Halfshaft RH FWD

Special Tool(s)

205-857
Remover, Halfshaft

Removal

CAUTIONS:

Nuts and bolts must be tightened with the weight of the vehicle on the suspension.

Do not allow halfshafts to hang unsupported at one end or joint damage will occur.

Make sure the halfshaft constant velocity (CV) joints do not over articulate. Failure to follow this instruction may result in damage to the CV joints.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

3. CAUTION: Discard the nut.

Range Rover Evoque. Front Drive Halfshafts

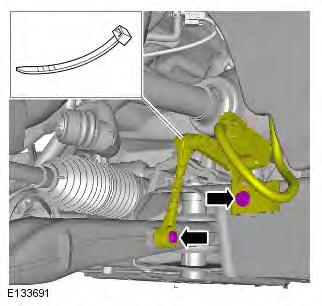

4.

Range Rover Evoque. Front Drive Halfshafts

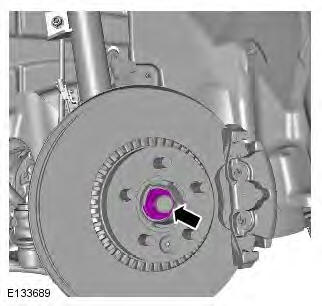

5. CAUTIONS:

Do not use air tools to remove the nut.

Discard the nut.

Range Rover Evoque. Front Drive Halfshafts

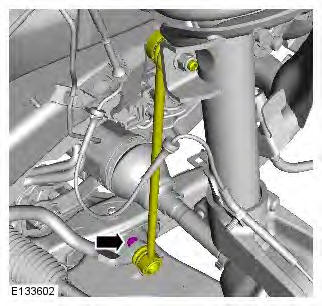

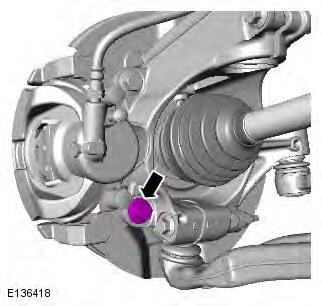

6. CAUTION: Discard the bolt.

Range Rover Evoque. Front Drive Halfshafts

7.

Range Rover Evoque. Front Drive Halfshafts

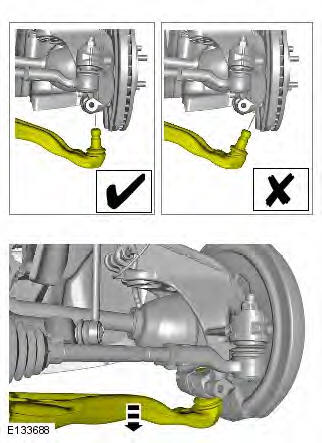

8.

Range Rover Evoque. Front Drive Halfshafts

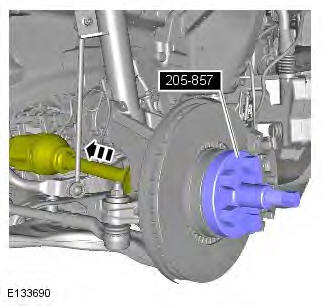

9. CAUTIONS:

Make sure that the driveshaft is supported with suitable retaining straps.

Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft. Special Tool(s): 205-857

Range Rover Evoque. Front Drive Halfshafts

10.

Range Rover Evoque. Front Drive Halfshafts

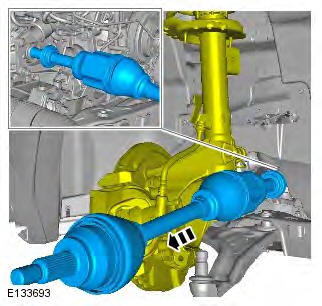

11. WARNING: Be prepared to collect escaping fluids.

CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

Range Rover Evoque. Front Drive Halfshafts

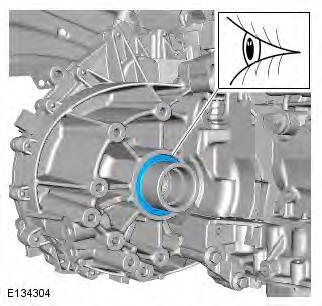

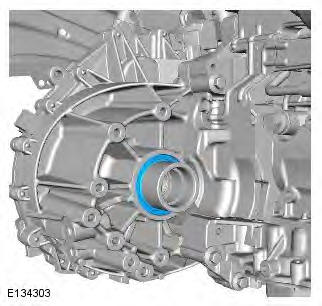

12. CAUTION: Inspect the seal, replace if damaged

Range Rover Evoque. Front Drive Halfshafts

Installation

1. NOTE: This step is only required if previously removed.

Range Rover Evoque. Front Drive Halfshafts

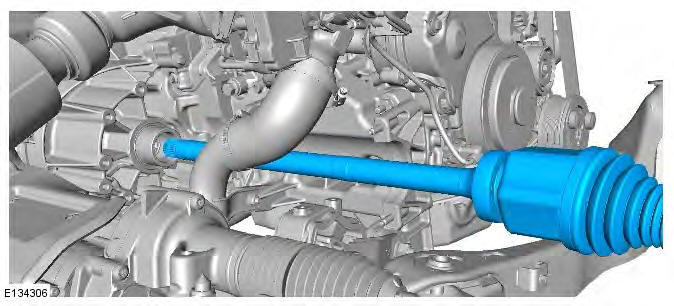

2. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

Range Rover Evoque. Front Drive Halfshafts

3. CAUTION: LH illustration shown, RH is similar.

Range Rover Evoque. Front Drive Halfshafts

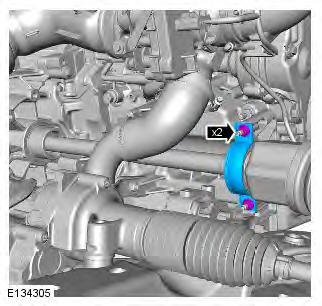

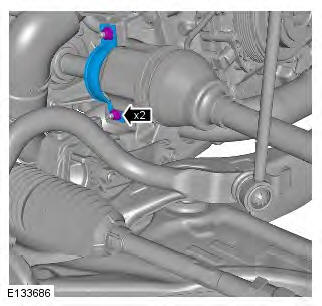

4. CAUTION: Make sure that the halfshaft bearing is correctly located in the support bracket before installing the retaining nuts. Torque: 25 Nm

Range Rover Evoque. Front Drive Halfshafts

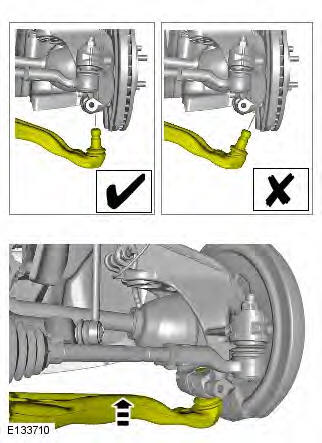

5.

Range Rover Evoque. Front Drive Halfshafts

6. Torque: 110 Nm

Range Rover Evoque. Front Drive Halfshafts

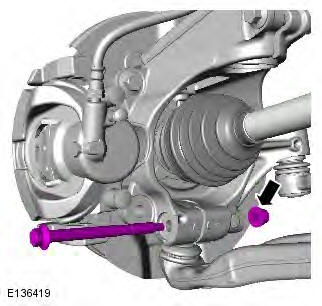

7. CAUTION: Make sure that a new bolt is installed. Torque: 200 Nm

Range Rover Evoque. Front Drive Halfshafts

8. WARNING: Make sure that a new nut is installed.

CAUTIONS:

Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Install the halfshaft nut finger tight.

Tighten the nut without the weight of the vehicle on the suspension.

Torque:

Stage 1: 120 Nm
Stage 2: 60
