Range Rover Evoque: Shock Absorber and Spring Assembly Vehicles Without: Dynamic Suspension

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Suspension / Front Suspension / Shock Absorber and Spring Assembly Vehicles Without: Dynamic Suspension

Special Tool(s)

205-754A
Splitter, Ball Joints

205-857
Remover, Halfshaft

Range Rover Evoque. Front SuspensionJLR-204-804
Lever, Wheel Knuckle

General Equipment

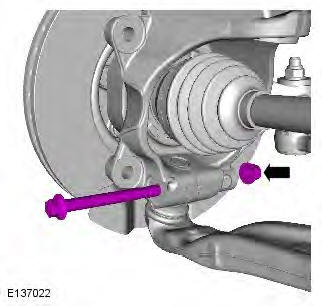

Removal

CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

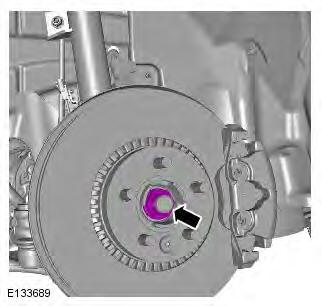

3. CAUTIONS:

Do not use air tools to remove the nut.

Discard the nut.

Range Rover Evoque. Front Suspension

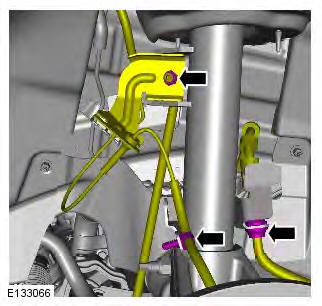

4.

Range Rover Evoque. Front Suspension

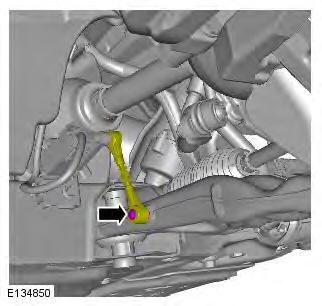

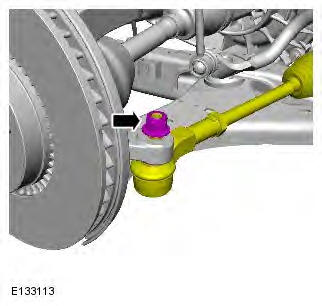

5. CAUTION: Discard the nut.

Range Rover Evoque. Front Suspension

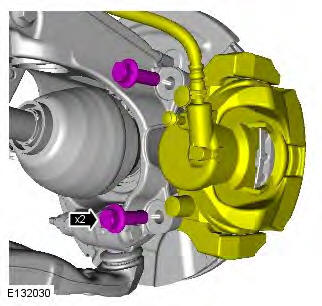

6. CAUTIONS:

Discard the bolts.

Make sure that no load is placed on the brake hose.

Tie aside with a suitable tie strap.

Range Rover Evoque. Front Suspension

7.

Range Rover Evoque. Front Suspension

8.

Range Rover Evoque. Front Suspension

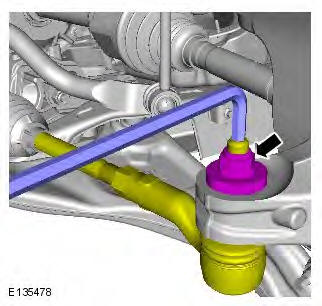

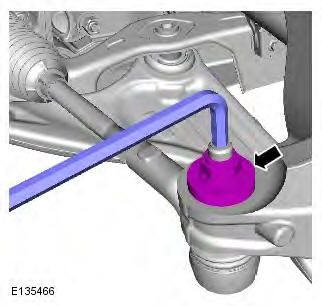

9. CAUTION: Make sure that the ball joint ball does not rotate.

Range Rover Evoque. Front Suspension

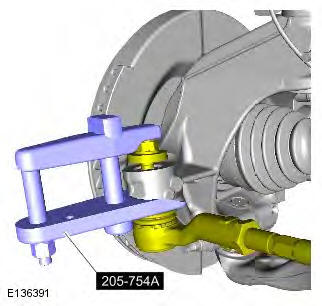

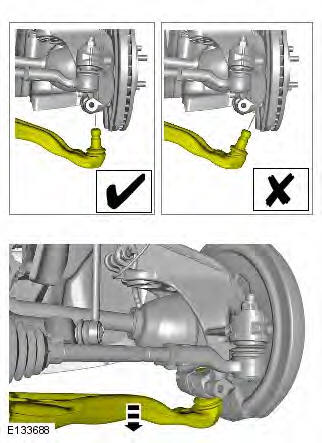

10. CAUTION: Make sure that the ball joint seal is not damaged. Special Tool(s): 205-754A

Range Rover Evoque. Front Suspension

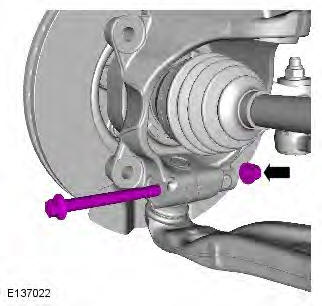

11. CAUTION: Discard the nut.

Range Rover Evoque. Front Suspension

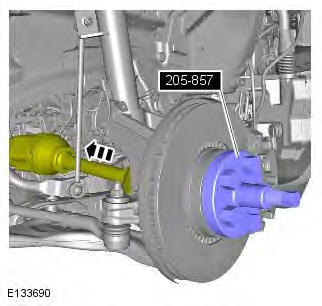

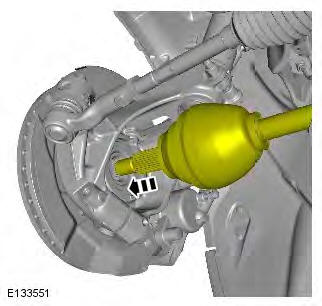

12. CAUTIONS:

Make sure that the driveshaft is supported with suitable retaining straps.

Do not use a hammer to detach the halfshaft from the hub assembly, failure to follow this instruction may result in damage to the halfshaft.

Special Tool(s): 205-857

Range Rover Evoque. Front Suspension

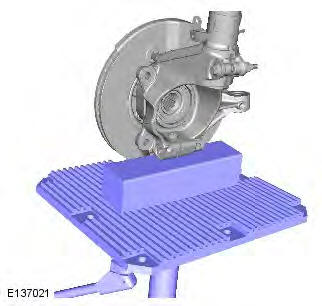

13.

Range Rover Evoque. Front Suspension

14.

Range Rover Evoque. Front Suspension

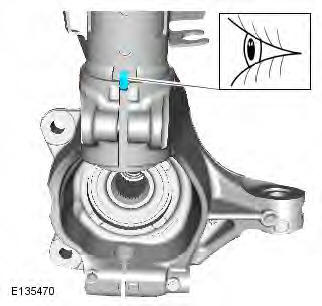

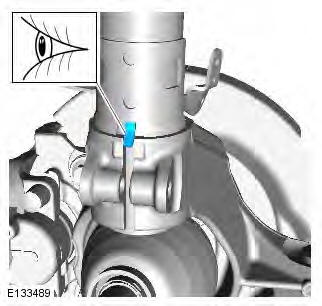

15. CAUTION: Note the fitted position of the component prior to removal.

Range Rover Evoque. Front Suspension

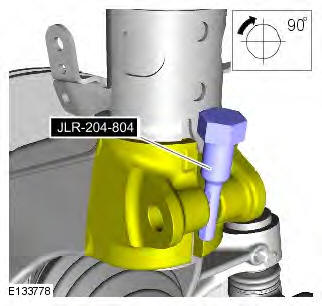

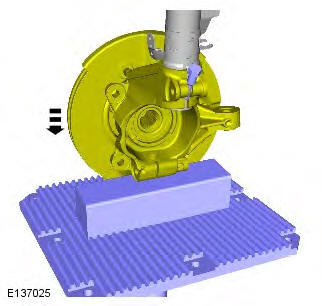

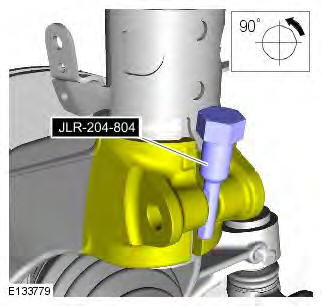

16. Special Tool(s): JLR-204-804

Range Rover Evoque. Front Suspension

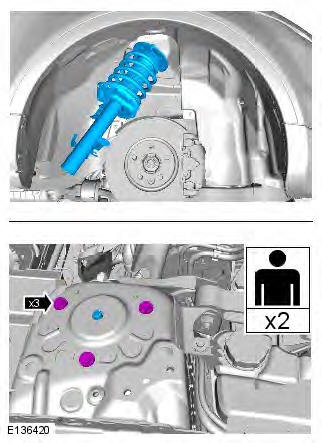

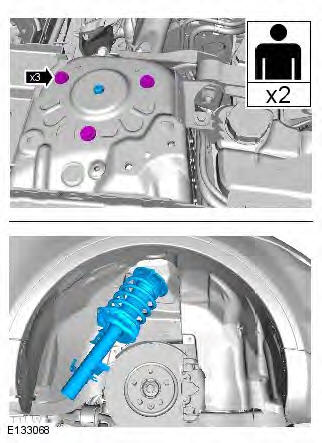

17.

Range Rover Evoque. Front Suspension

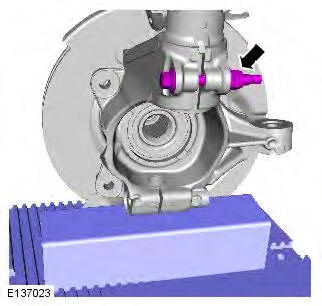

18. NOTE: Note the orientation of the component prior to removal.

Range Rover Evoque. Front Suspension

Installation

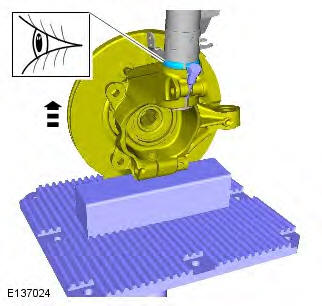

1. NOTE: Make sure that the component is installed to the noted removal position.

Torque: 32 Nm

Range Rover Evoque. Front Suspension

2.

Range Rover Evoque. Front Suspension

3. NOTE: Make sure that this component is installed to the noted removal position.

Range Rover Evoque. Front Suspension

4. Remove the special tool.

Range Rover Evoque. Front Suspension

5. Torque: 110 Nm

Range Rover Evoque. Front Suspension

6.

Range Rover Evoque. Front Suspension

7.

Range Rover Evoque. Front Suspension

8. WARNING: Make sure that a new nut is installed.

CAUTION: Make sure that the ball joint ball does not rotate.

Torque: 133 Nm

Range Rover Evoque. Front Suspension

9.

Range Rover Evoque. Front Suspension

10. Torque: 110 Nm

Range Rover Evoque. Front Suspension

11. CAUTION: Make sure that new bolts are installed. Torque: 200 Nm

Range Rover Evoque. Front Suspension

13. WARNING: Make sure that a new nut is installed. Torque: 60 Nm

Range Rover Evoque. Front Suspension

13.

Range Rover Evoque. Front Suspension

14. WARNING: Make sure that a new nut is installed.

CAUTIONS:

Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Install the halfshaft nut finger tight.

Tighten the nut without the weight of the vehicle on the suspension.

Torque:

Stage 1: 120 Nm
Stage 2: 60
