Range Rover Evoque: Smart key system transmitters
Land Rover Range Rover Evoque L538 (2011–2018) Owner's Manual / Technical specifications / Smart key system transmitters

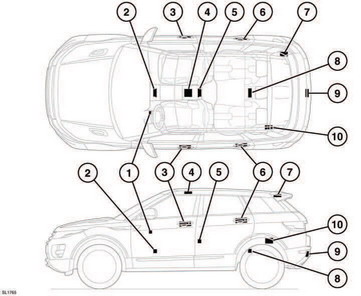

1. Steering column backup transmitter.
2. Front cockpit transmitters.
3. Front exterior door handle transmitters.
4. Roof keyless receiver.
5. Floor console front transmitter.
6. Rear exterior door handle transmitters.
7. Loadspace transmitter.
8. Floor console rear transmitter.
9. Tailgate passive entry receiver.
10. Keyless start module.
Any person fitted with an
implanted
medical device should ensure that the
device is kept at a distance of at least
22 cm (8.7in) away from any
transmitter mounted in the vehicle.
This is to avoid any possibility of
interference between the system and
the device.
