Range Rover Evoque: Rear Shock Absorber Vehicles Without: Dynamic Suspension

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Suspension / Rear Suspension / Rear Shock Absorber Vehicles Without: Dynamic Suspension

General Equipment

Removal

WARNINGS:

Make sure the spring compressor Safe Working Load (SWL) meets or exceeds the spring rating quoted in the Specifcations section.

Always follow the spring compressor manufacturer's instructions.

The spring is under extreme tension, care must be taken at all times. Failure to follow these instuctions may result in personal injury.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Shock Absorber and Spring Assembly - Vehicles Without: Dynamic Suspension (204-02 Rear Suspension, Removal and Installation).

3.

Range Rover Evoque. Rear Suspension

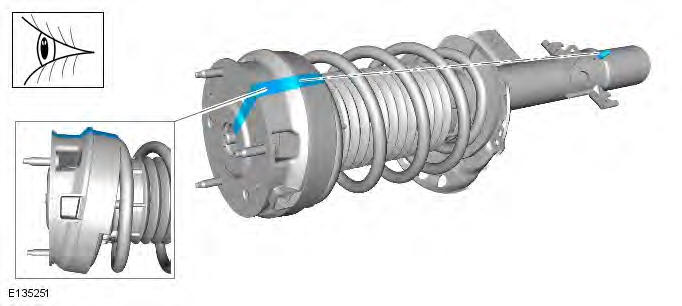

4. CAUTION: Mark the components to aid installation.

Range Rover Evoque. Rear Suspension

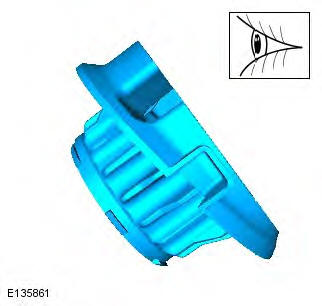

5.

Range Rover Evoque. Rear Suspension

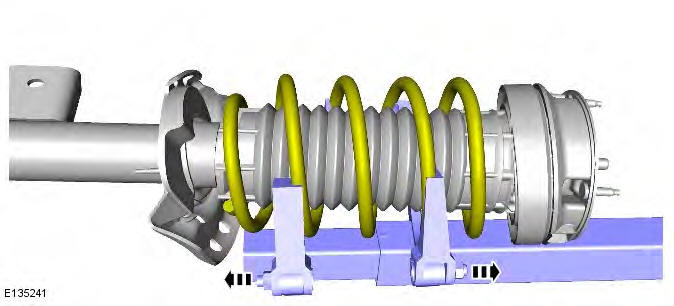

6.

Range Rover Evoque. Rear Suspension

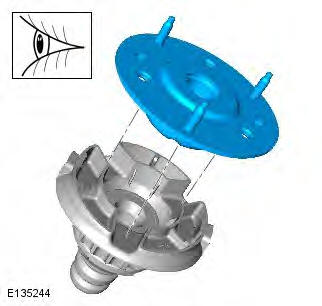

7.

Range Rover Evoque. Rear Suspension

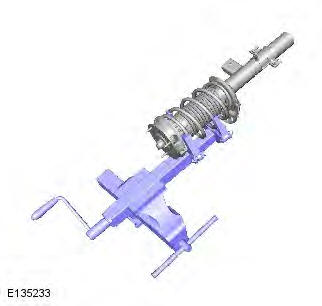

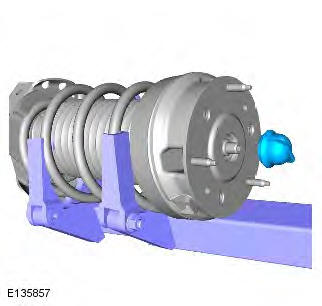

8. WARNING: Make sure to support the shock absorber.

CAUTION: Discard the nut.

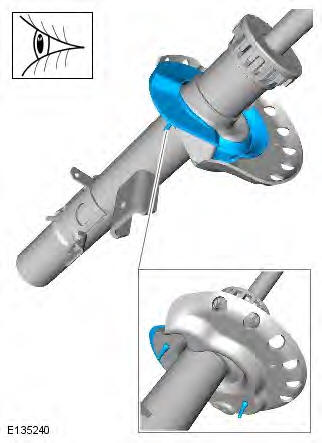

Range Rover Evoque. Rear Suspension

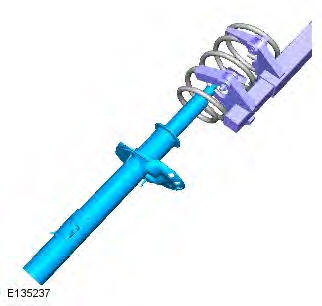

9.

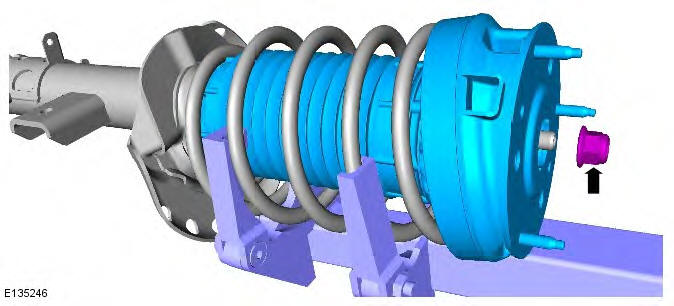

Range Rover Evoque. Rear Suspension

10.

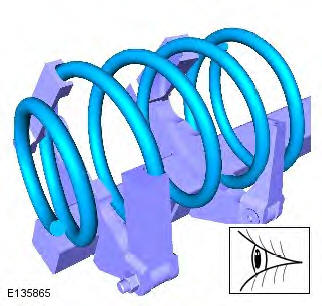

Range Rover Evoque. Rear Suspension

Installation

1. Make sure the correct vehicle suspension components are installed.

Refer to: Specifications (204-00 Suspension System - General Information, Specifications).

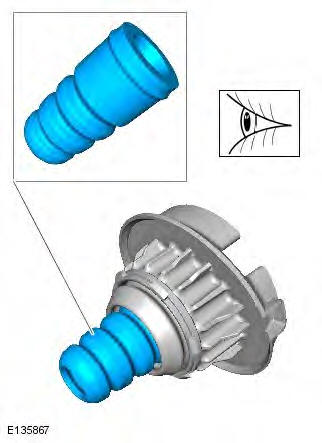

2. Inspect the component and install a new one if damaged.

Range Rover Evoque. Rear Suspension

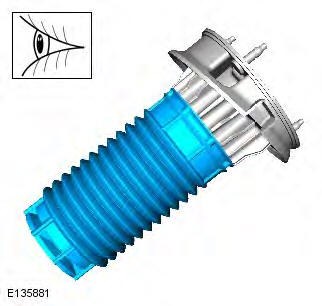

3. Inspect the component and install a new one if damaged.

Range Rover Evoque. Rear Suspension

4. Inspect the component and install a new one if damaged.

Range Rover Evoque. Rear Suspension

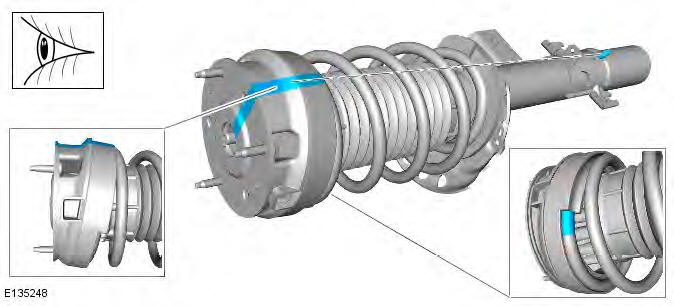

5. CAUTION: Make sure the component is aligned as shown.

NOTE: Make sure that the component is installed to the position noted on removal. Inspect the component and install a new one if damaged.

Range Rover Evoque. Rear Suspension

6. Inspect the component and install a new one if damaged.

Range Rover Evoque. Rear Suspension

7. Inspect the component and install a new one if damaged.

Range Rover Evoque. Rear Suspension

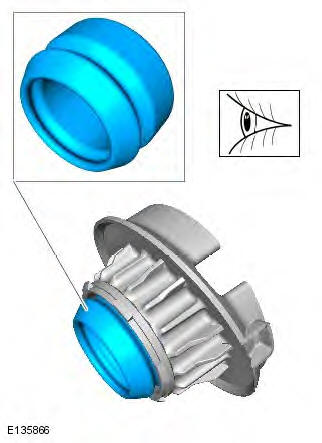

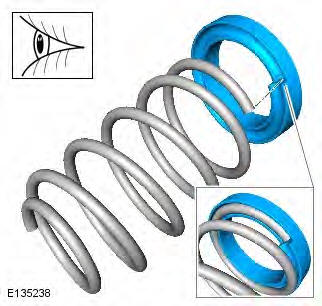

8. CAUTION: Make sure the component is aligned as shown.

Range Rover Evoque. Rear Suspension

9.

Range Rover Evoque. Rear Suspension

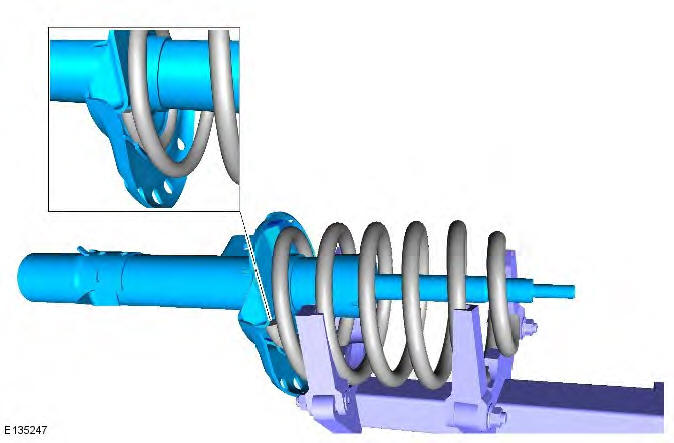

10. WARNING: Make sure to support the shock absorber.

CAUTIONS:

Make sure the component is aligned as shown.

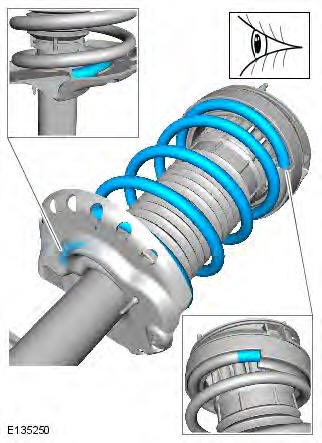

Make sure that the spring is installed to the damper assembly with the paint marks (located on the spring) at the top.

Range Rover Evoque. Rear Suspension

11. WARNINGS:

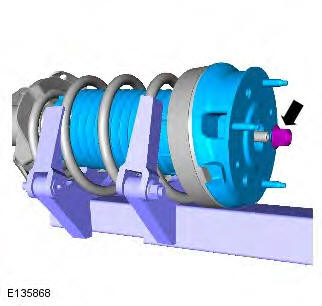

Make sure that a new nut is installed.

Make sure to support the shock absorber.

Torque: 67 Nm

Range Rover Evoque. Rear Suspension

12.

Range Rover Evoque. Rear Suspension

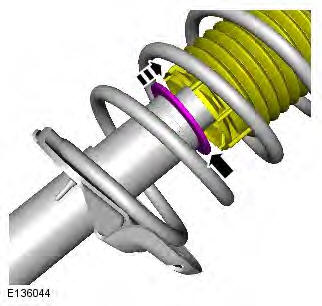

13. CAUTION: Make sure the components are aligned as shown.

Range Rover Evoque. Rear Suspension

14.

Range Rover Evoque. Rear Suspension

15.

Range Rover Evoque. Rear Suspension

16. CAUTION: Make sure the components are aligned as shown.

Range Rover Evoque. Rear Suspension

17. CAUTION: Make sure the components are aligned as shown.

Range Rover Evoque. Rear Suspension

18. Refer to: Shock Absorber and Spring Assembly - Vehicles Without: Dynamic Suspension (204-02 Rear Suspension, Removal and Installation).

19. Check the suspension system ride height.
