Range Rover Evoque: Stoplamps

Principle of Operation

For information on the description and operation of the system, refer to relevant section of the workshop manual. REFER to: (417-01 Exterior Lighting)

Note that the stoplamps will be activated automatically under certain conditions when the ride and handling optimization function is used.

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

1. Verify the customer concern.

2. Visually inspect for obvious electrical faults.

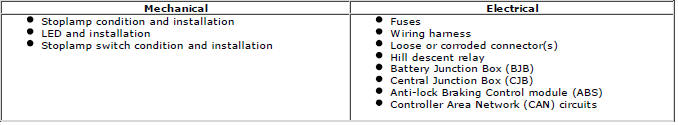

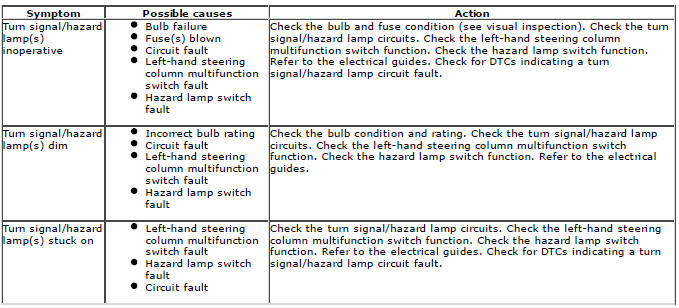

Visual Inspection Chart

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart or DTC index.

• Because the DTCs are stored in more than one module, a complete vehicle read is recommended.
• Make sure that all DTCs are cleared following rectification

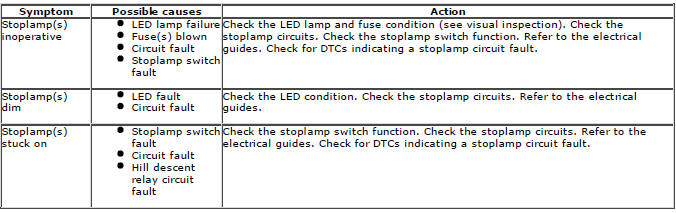

Symptom Chart

DTC index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).

Turn Signal and Hazard Lamps

Principle of Operation

For information on the description and operation of the system, refer to relevant section of the workshop manual. REFER to: (417-01 Exterior Lighting)

When diagnosing cornering/static bending lamp faults note that the operating principle differs slightly when the headlamp system is installed with the Adaptive Front Lighting System (AFS).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

1. Verify the customer concern.

• Note that intermittent fault reports may be due to the cycling operation of the field effect transistors (FETs)

2. Visually inspect for obvious electrical faults.

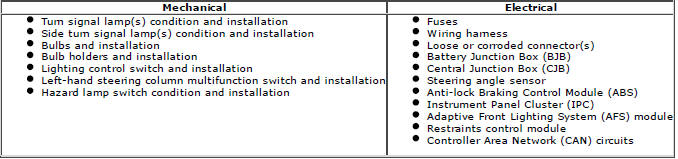

Visual Inspection Chart

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart or DTC index.

• Because the DTCs are stored in more than one module, a complete vehicle read is recommended
• Make sure that all DTCs are cleared following rectification

Symptom Chart

DTC index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).

Parking, Rear and License Plate Lamps

Principle of Operation

For information on the description and operation of the system, refer to relevant section of the workshop manual. REFER to: (417-01 Exterior Lighting)

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

1. Verify the customer concern.

2. Visually inspect for obvious electrical faults.

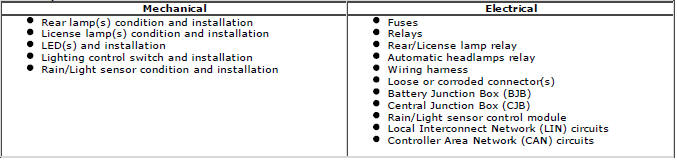

Visual Inspection Chart

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart or DTC index.

• Because the DTCs are stored in more than one module, a complete vehicle read is recommended
• Make sure that all DTCs are cleared following rectification

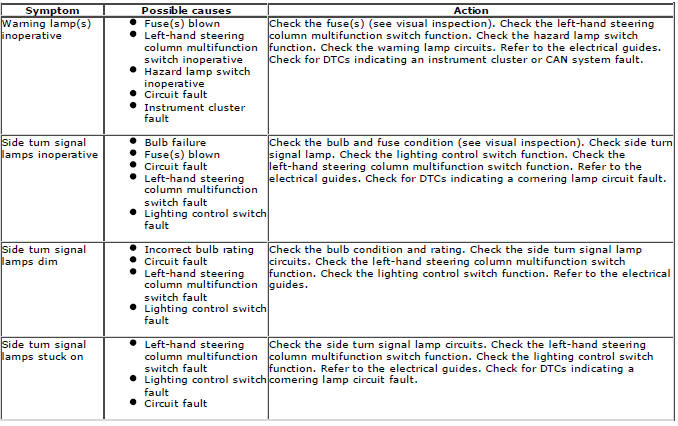

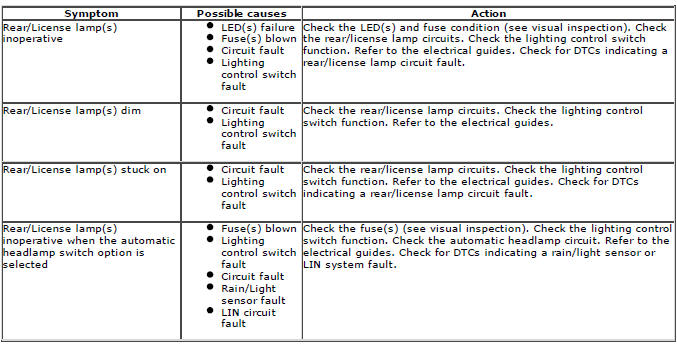

Symptom Chart

DTC Index

For a list of Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).

Fog Lamps

Principle of Operation

For information on the description and operation of the system, refer to relevant section of the workshop manual. REFER to: (417-01 Exterior Lighting)

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

1. Verify the customer concern.

2. Visually inspect for obvious mechanical or electrical faults.

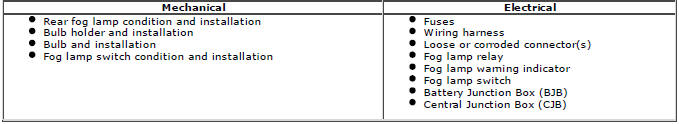

Visual inspection

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. Use the approved diagnostic system or a scan tool to retrieve any diagnostic trouble codes (DTCs) before moving onto the symptom chart or DTC index.

• Because the DTCs are stored in more than one module, a complete vehicle read is recommended.
• Make sure that all DTCs are cleared following rectification

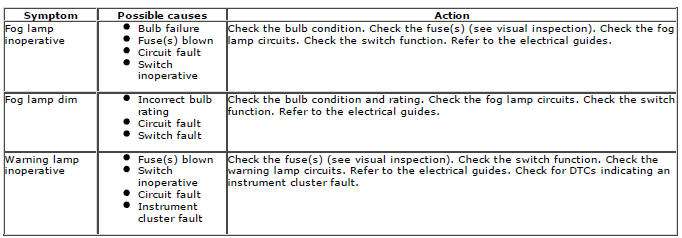

Symptom Chart

DTC index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).

Reversing Lamps

Principle of Operation

For a detailed description of the reversing lamps operation, refer to the relevant Description and Operation section of the workshop manual.

REFER to: Exterior Lighting (417-01 Exterior Lighting, Description and Operation) / Exterior Lighting (417-01 Exterior Lighting, Description and Operation) / Exterior Lighting (417-01 Exterior Lighting, Description and Operation).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

1. Verify the customer concern.

2. Visually inspect for obvious signs of damage and system integrity.

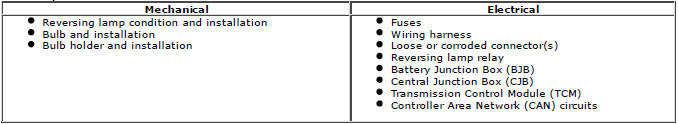

Visual Inspection

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the cause is not visually evident check the system for any logged Diagnostic Trouble Codes (DTCs) and proceed to the DTC Index, alternatively, verify the customer concern and refer to the Symptom Chart.

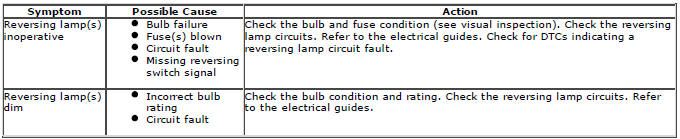

Symptom Chart

DTC Index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).

Trailer Lamps

Principle of Operation

For a detailed description of the trailer lamps operation, refer to the relevant Description and Operation section of the workshop manual. REFER to: (417-01 Exterior Lighting)

Prior to carrying out fault diagnosis of the trailer lamp system, verify the operation of the towing vehicle lighting system with the trailer lighting plug(s) disconnected from the vehicle socket(s).

Note that intermittent fault reports may be due to the cycling operation of the Field Effect Transistors (FETs).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

1. Verify the customer concern.

2. Visually inspect for obvious signs of damage and system integrity.

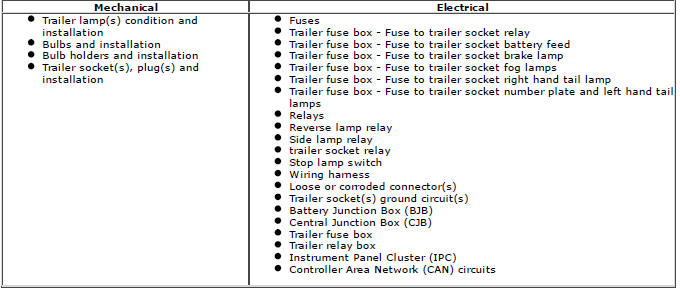

Visual Inspection

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the cause is not visually evident check the system for any logged Diagnostic Trouble Codes (DTCs) and proceed to the DTC Index, alternatively, verify the customer concern and refer to the Symptom Chart.

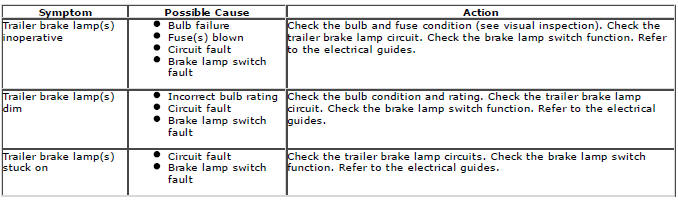

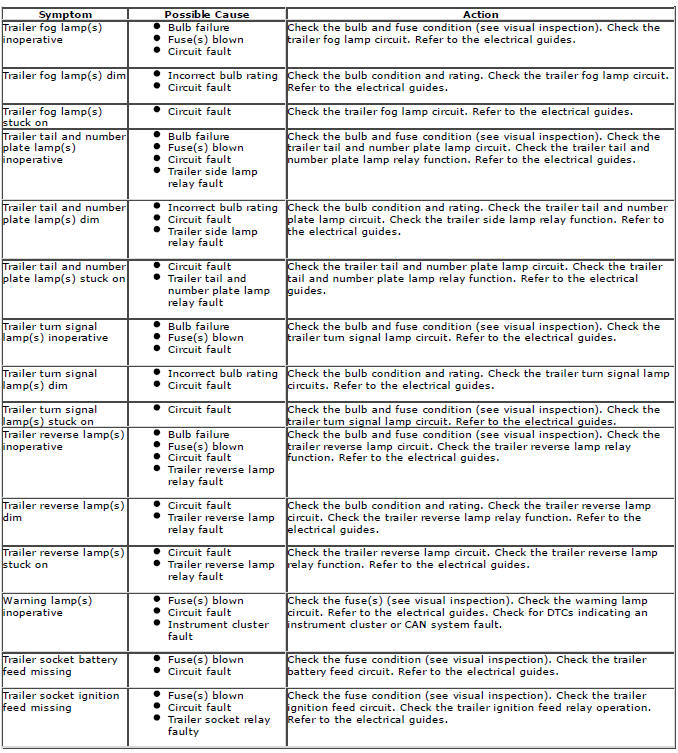

Symptom Chart

DTC Index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).

Autolamps

Principle of Operation

Two systems of headlamp leveling are available: static and dynamic. Prior to diagnosis, identify the headlamp leveling system installed to the vehicle. Dynamic headlamp leveling is only available on vehicles with an adaptive Front Lighting System (AFS).

For information on the description and operation of the system, refer to relevant section of the workshop manual. REFER to: (417-01 Exterior Lighting)

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does not guarantee confirmation of a fault and may also cause additional faults in the vehicle being checked and/or the donor vehicle.

1. Verify the customer concern.

2. Visually inspect for obvious signs of damage and system integrity.

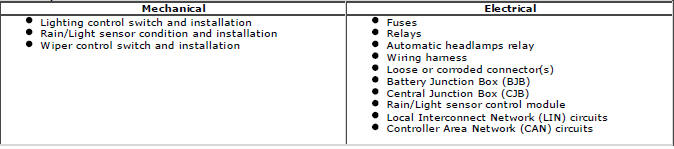

Visual Inspection

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.

4. If the cause is not visually evident check the system for any logged Diagnostic Trouble Codes (DTCs) and proceed to the DTC Index, alternatively, verify the customer concern and refer to the Symptom Chart.

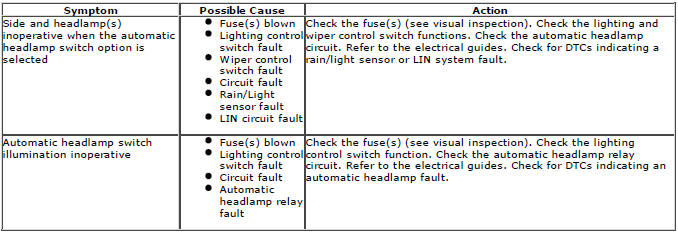

Symptom Chart

DTC index

For a complete list of all Diagnostic Trouble Codes (DTCs) that could be logged on this vehicle, please refer to Section 100-00.

REFER to: Diagnostic Trouble Code (DTC) Index - DTC: Central Junction Box (CJB) (100-00 General Information, Description and Operation).
