Range Rover Evoque: Throttle Body
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some illustrations may show the engine removed for clarity.
1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
2. Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
3. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

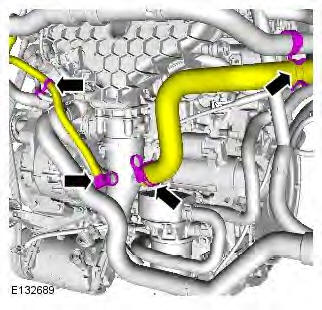

4.

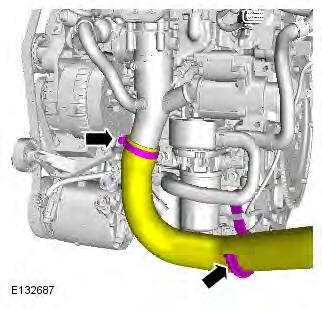

5.
6.

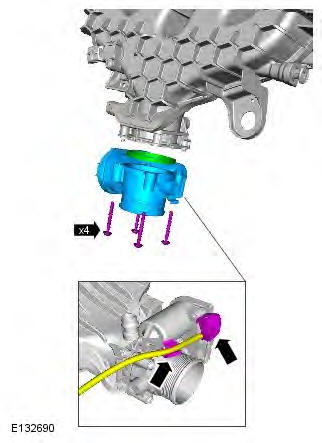

7. NOTE: Install a new O-ring seal. Torque: 8 Nm
Installation
1. To install, reverse the removal procedure.
Fuel Injectors
Removal
1. Refer to: Fuel Rail (303-04C Fuel Charging and Controls - GTDi 2.0L Petrol, Removal and Installation).
Installation
1. To install, reverse the removal procedure.
Fuel Charging Wiring Harness
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
3. Refer to: Intake Manifold (303-01B Engine - GTDi 2.0L Petrol, Removal and Installation).

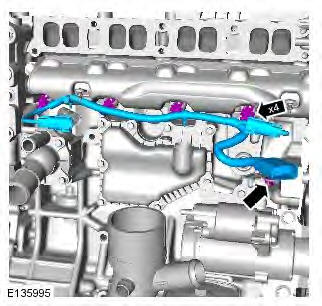

4.

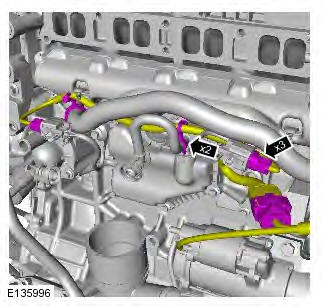

5.
Installation
1. To install, reverse the removal procedure.
