Range Rover Evoque: Torque Converter Seal TD4 2.2L Diesel

Special Tool(s)

307-597
Installer, Torque Converter Seal

307-613
Holding Pins, Torque Converter

Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Transmission - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal).

4. CAUTIONS:

Be prepared to collect escaping oil.

Make sure that all openings are sealed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

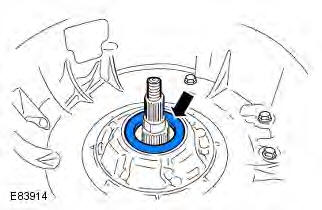

5. CAUTION: Take extra care when removing the component, prevent damage to the mating faces.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

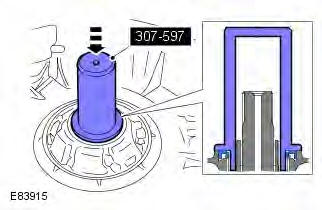

1. CAUTIONS:

Extreme cleanliness must be exercised when handling this component.

Make sure that the mating faces are clean and free of foreign material.

Special Tool(s): 307-597

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

2. CAUTIONS:

Make sure that the mating faces are clean and free of foreign material.

Take extra care when handling the component.

Align the torque converter and oil pump drive before installing the torque converter.

Make sure the torque converter is fully located into the oil pump drive.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

3. Refer to: Transmission - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Installation).

4. Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Torque Converter TD4 2.2L Diesel

Special Tool(s)

307-613
Holding Pins, Torque Converter

Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Transmission - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal).

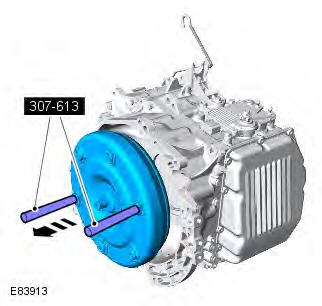

4. CAUTIONS:

Be prepared to collect escaping oil.

Make sure that all openings are sealed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

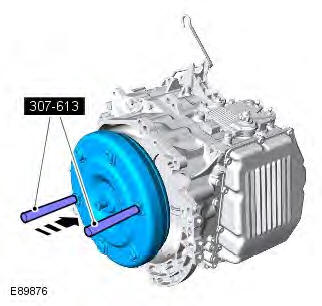

1. CAUTIONS:

Make sure that the mating faces are clean and free of foreign material.

Take extra care when handling the component.

Align the torque converter and oil pump drive before installing the torque converter.

Make sure the torque converter is fully located into the oil pump drive.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

2. Refer to: Transmission - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Installation).

3. Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Input Shaft Speed (ISS) Sensor TD4 2.2L Diesel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Transmission Fluid Pan - TD4 2 2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

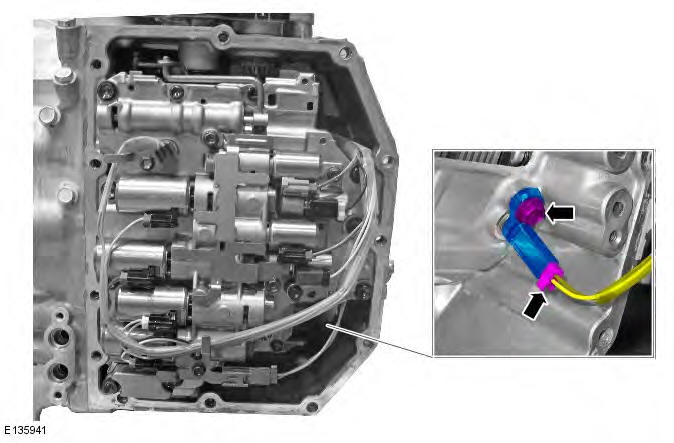

4. CAUTION: Extreme cleanliness must be exercised when handling this component. Torque: 6 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

1. To install, reverse the removal procedure.
