Range Rover Evoque: Transfer Case Seal RH TD4 2.2L Diesel

Special Tool(s)

100-012
Slide Hammer

205-872
Installer, Transfer Case Seal

308-615
Remover, Seals

308-617
Depth Drill, Seal Remover

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Halfshaft Seal RH - Vehicles With: M66 6-Speed Manual Transmission AWD (308-03 Manual Transmission/Transaxle, Removal and Installation).

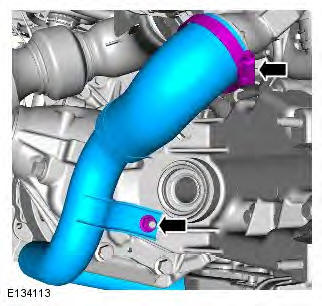

3. Torque: 12 Nm

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

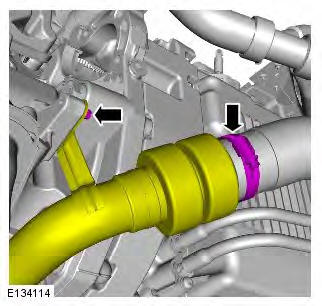

4. Torque: 12 Nm

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

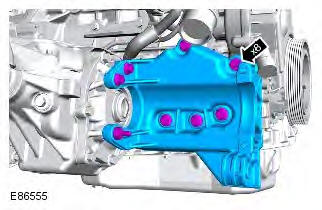

5. Torque: 65 Nm

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

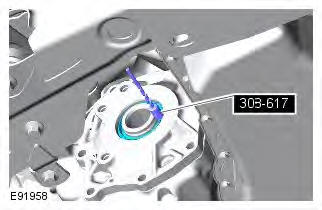

6.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

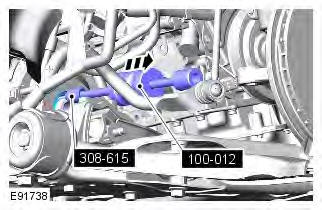

7. CAUTIONS: Make sure that the area around the component is clean and free of foreign material.

Take extra care not to damage the mating faces.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

Installation

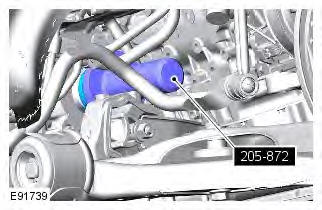

1.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic

2. To install, reverse the removal procedure.

3. Check and top-up the transfer case fluid level.

Refer to: Transfer Case Fluid Level Check (308-07B Transfer Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual Transmission AWD, General Procedures).

Transfer Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual Transmission AWD

Lubricants, Fluids, Sealers and Adhesives

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic

Capacities

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

General Specification

Torque Specifications

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD
