Range Rover Evoque: Transmission Control Module (TCM) GTDi 2.0L
Petrol
Removal
1. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
2. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering -
TD4 2.2L Diesel, Removal and Installation).
3.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4067.jpg)
4.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4068.jpg)
5. CAUTION: Discard the component.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4069.jpg)
6.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4070.jpg)
7.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4071.jpg)
Installation

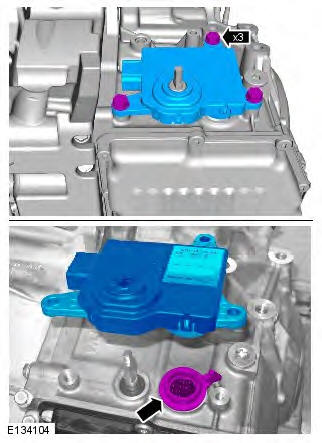

1. Torque: 25 Nm
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4072.jpg)

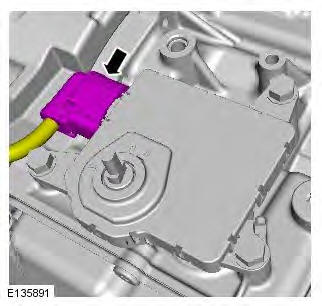

2.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4073.jpg)

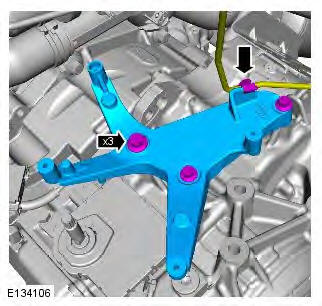

3. Torque:
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4074.jpg)

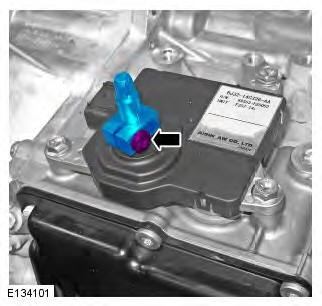

4. CAUTION: Make sure that new components are
installed.
NOTE: Do not fully tighten the clamp at this
stage.
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4075.jpg)

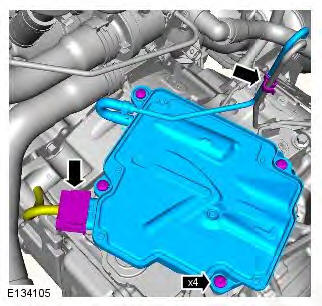

5. Torque: 10 Nm
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4076.jpg)

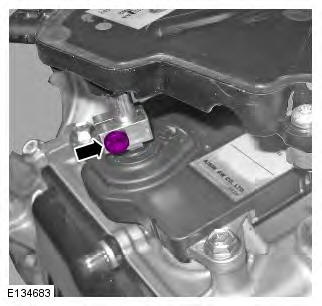

6. Torque: 10 Nm
![Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission](images/books/3096/evoque_petrol_4077.jpg)
7. Refer to: Air Cleaner (303-12A Intake Air Distribution and Filtering -
TD4 2.2L Diesel, Removal and Installation).
8. Reconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
9.
- Using the diagnostic tool, calibrate the transmission control
module (TCM).
- Using the diagnostic tool, re-calibrate the gear shift module
(GSM).
