Range Rover Evoque: Transmission GTDi 2.0L Petrol - Installation

Installation

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

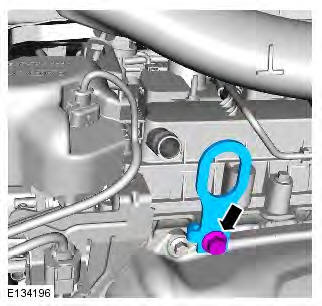

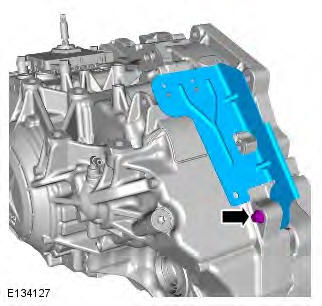

1. NOTE: This step is only required if previously removed.

Torque: 12 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

2. NOTE: This step is only required if previously removed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

3. CAUTION: Make sure that the seal is correctly located.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

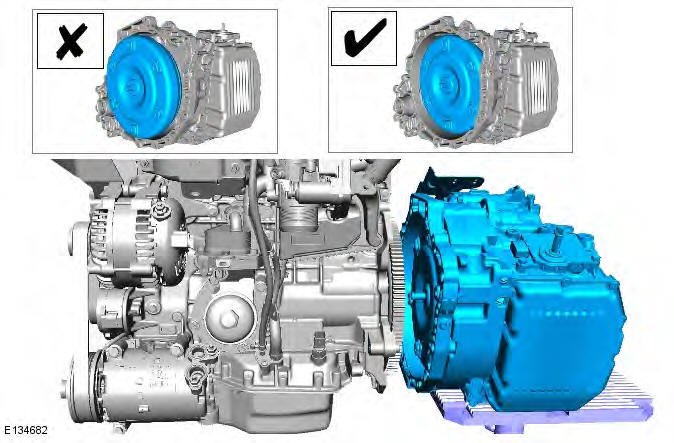

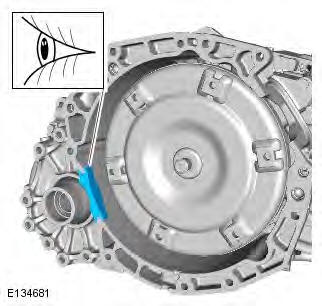

4. CAUTIONS:

Make sure that the component is correctly located on the locating dowels.

Make sure that the mating faces are clean and free of corrosion and foreign material.

Apply grease of the correct specification to the torque converter spigot.

Make sure the torque converter is fully located into the oil pump drive.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

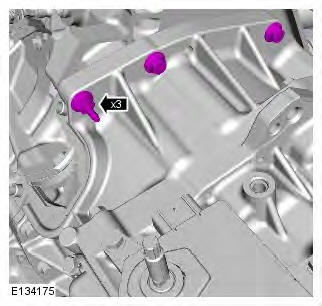

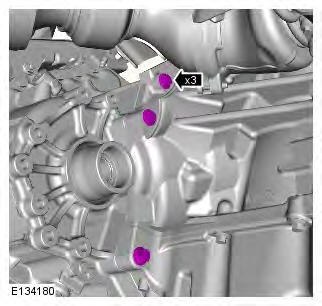

5. Torque: 48 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

6. Torque: 48 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

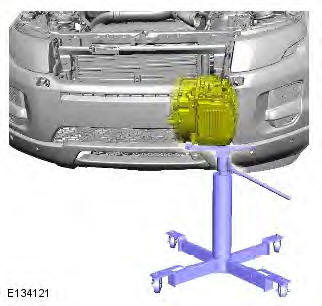

7. Remove the transmission jack.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

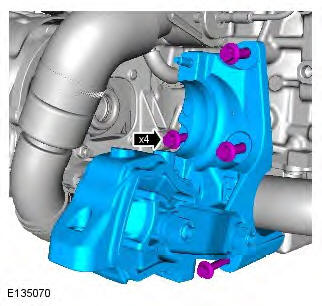

8. CAUTION: Make sure that new bolts are installed.

Torque: 60 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

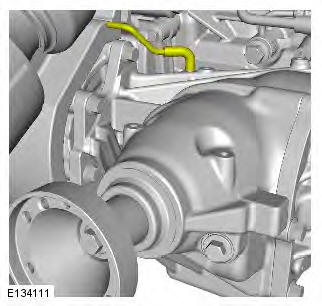

9.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

10. Torque: 65 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

11.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

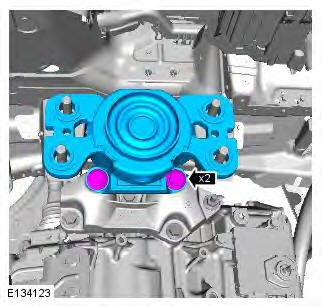

12. Torque: 65 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

13. Torque: 12 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

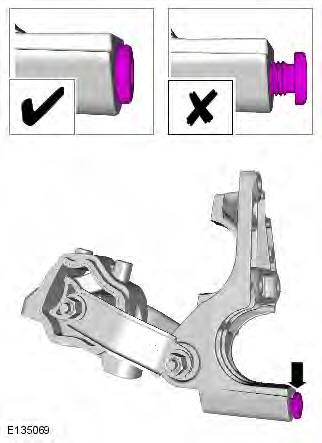

14. CAUTION: Tighten the component finger tight first.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

15. CAUTION: Only tighten the bolts finger-tight at this stage.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

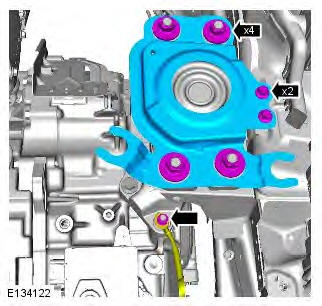

16. Torque: 65 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

17.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

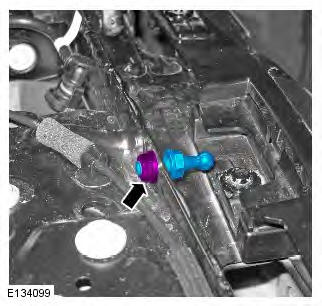

18. Torque: 4 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

19. Torque: 35 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

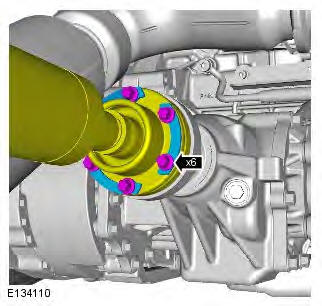

20. CAUTION: Make sure that new bolts are installed. Torque: 40 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

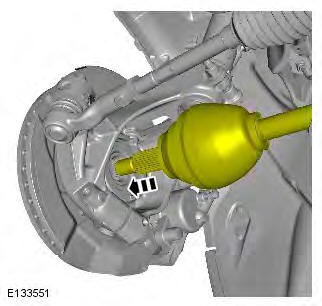

21. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

22. CAUTION: LH illustration shown, RH is similar.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

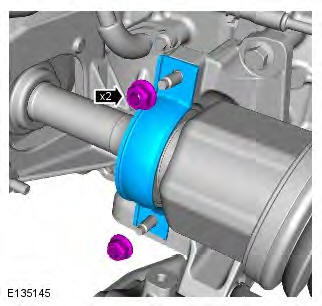

23. CAUTION: Only tighten the nuts finger-tight at this stage.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

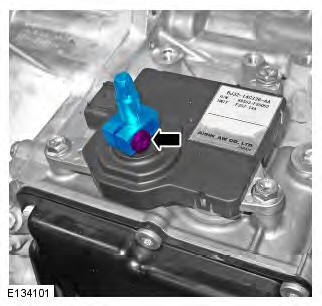

24. Torque: 2 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

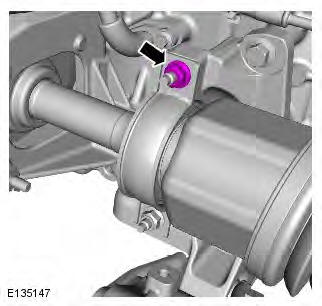

25. Torque: 24 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

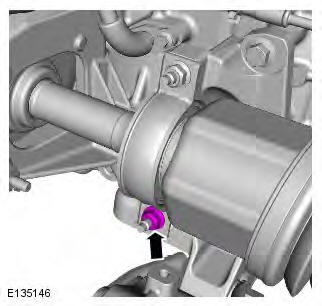

26. Torque: 24 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

27. WARNING: Make sure that a new nut is installed.

CAUTIONS:

Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Install the halfshaft nut finger tight.

Torque: 120 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

28. NOTE: This step is only required if previously removed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

29.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

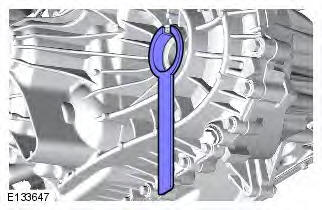

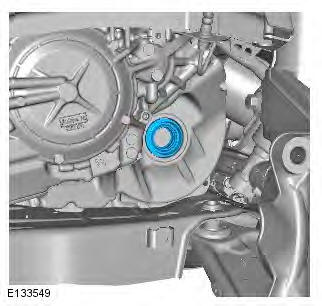

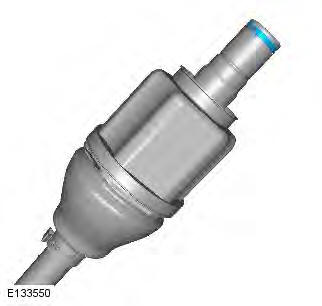

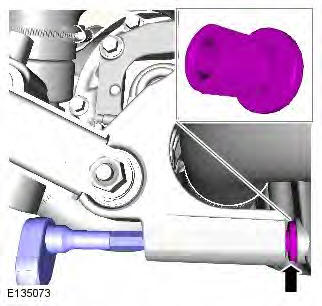

30. To prevent oil seal damage use the protector when installing the shaft into the transmission. It is not a special tool but is available from the Parts Catalogue.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

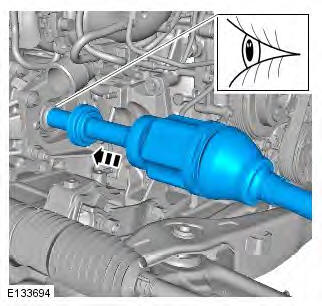

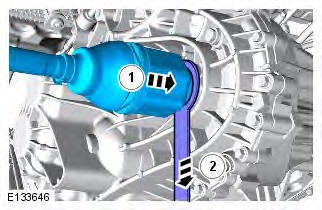

31. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

NOTE: Do not fully engage the halfshaft until the oil seal protector has been removed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

32.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

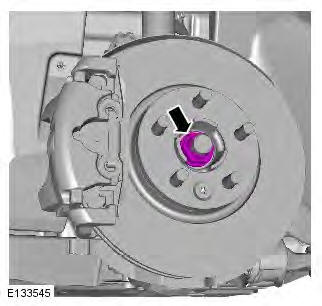

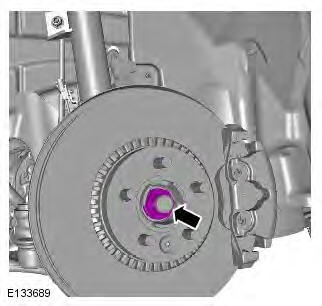

33. WARNING: Make sure that a new nut is installed.

CAUTIONS:

Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Install the halfshaft nut finger tight.

Torque: 120 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

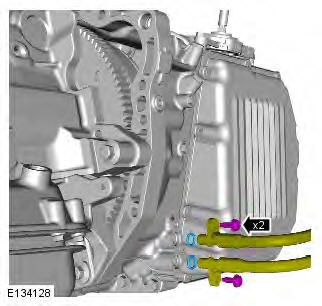

34. CAUTIONS:

Install new o-ring seals Make sure that the area around the component is clean and free of foreign material.

Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

35. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

36. Install the front wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

37. Lower the vehicle.

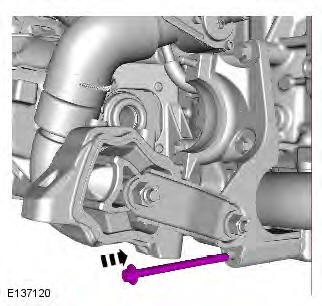

38. Torque: 80 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

39. Torque: 175 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

40. Torque:

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

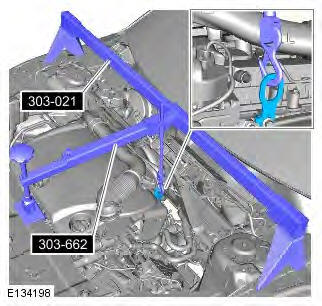

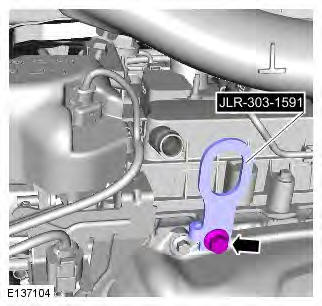

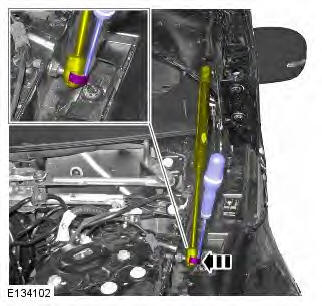

41. Remove the special tools.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

42. Remove the special tool.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

43. Torque: 24 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

44.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

45.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

46.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

47.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

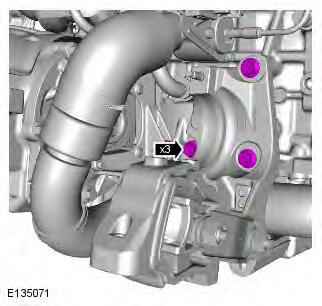

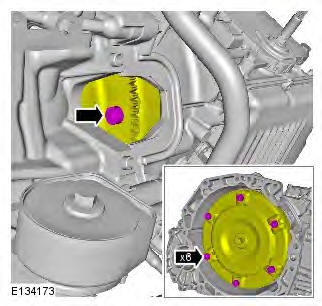

48. Torque: 48 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

49. Torque: 25 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

50. Torque:

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

51. CAUTION: Make sure that new components are installed.

NOTE: Do not fully tighten the clamp at this stage.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

52. Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

53. Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

54. Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

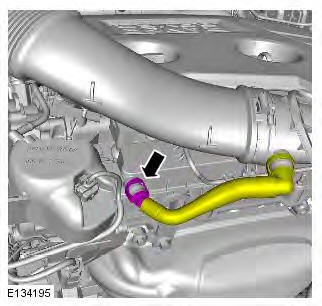

55.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

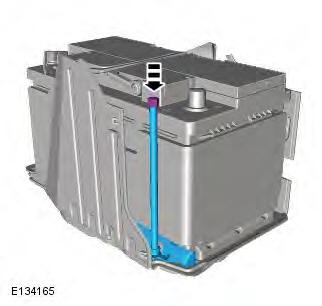

56. Torque: 12 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

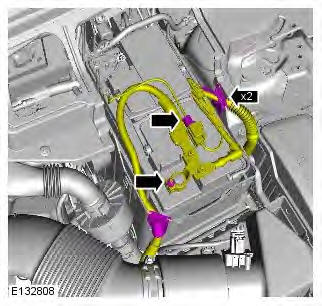

57.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

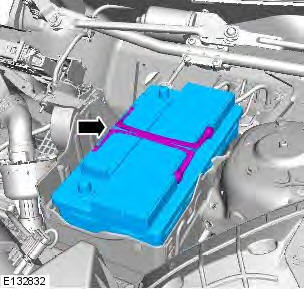

58.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

59.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

60. Refer to: Starter Motor (303-06B Starting System - GTDi 2.0L Petrol, Removal and Installation).

61. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

62. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

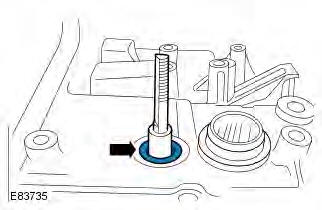

63. CAUTION: The fluid level plug and drain plug both use the same point on the transmission. The inner plug is for level indication and the outer plug is to drain the fluid.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

64. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

65. Lower the vehicle.

66.

Selector Shaft Seal TD4 2.2L Diesel

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

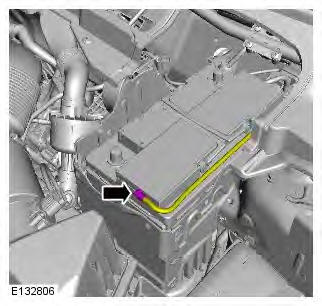

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

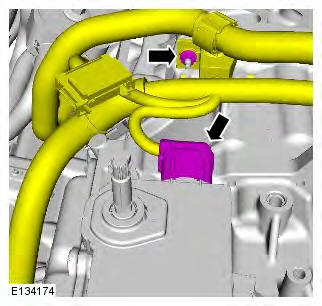

2. Refer to: Transmission Control Module (TCM) - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

3. CAUTIONS:

Take extra care not to damage the mating faces.

Make sure that a new component is installed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

1. CAUTIONS:

Make sure that the mating faces are clean and free of foreign material.

Install the seal, flush with the transmission case.

To install, reverse the removal procedure.
