Range Rover Evoque: Transmission Control Module (TCM) TD4 2.2L Diesel

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Automatic Transmission & Transaxle / Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission / Transmission Control Module (TCM) TD4 2.2L Diesel

Removal

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Air Cleaner (303-12, Removal and Installation).

3.

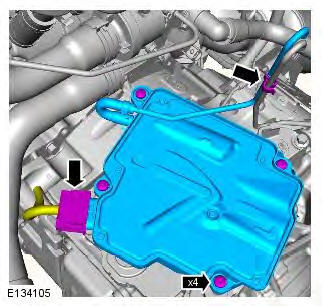

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

4.

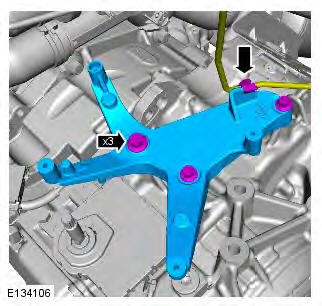

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

5. CAUTION: Discard the component.

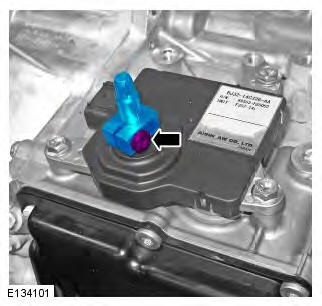

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

6.

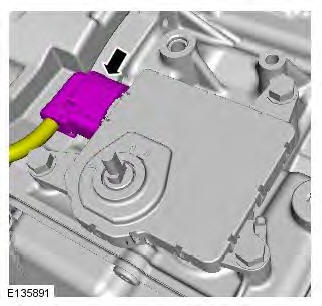

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

7.

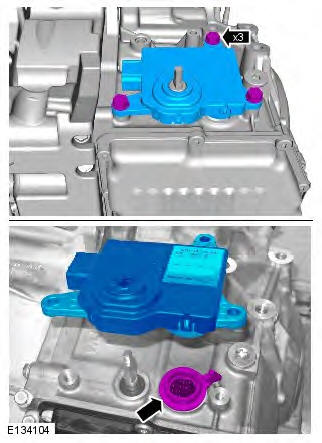

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

1. Torque: 25 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

2.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

3. Torque:

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

4. CAUTION: Make sure that new components are installed.

NOTE: Do not fully tighten the clamp at this stage.

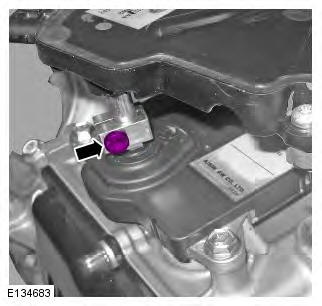

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

5. Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

6. Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

7. Refer to: Air Cleaner (303-12, Removal and Installation).

8. Reconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

9.
