Range Rover Evoque: Active On-Demand Coupling Vehicles With: AWF21 6-Speed Automatic Transmission

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Driveline / Rear Drive Axle/Differential / Active On-Demand Coupling Vehicles With: AWF21 6-Speed Automatic Transmission

Removal

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).

3. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

Range Rover Evoque. Rear Drive Axle/Differential

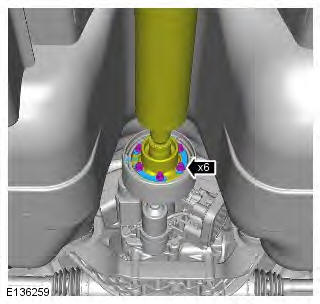

4. CAUTIONS:

Mark the position of the driveshaft flange in relation to the drive pinion flange.

To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.

Range Rover Evoque. Rear Drive Axle/Differential

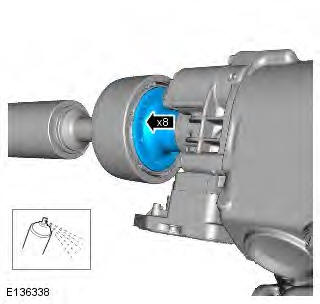

5. NOTE: Use penetrating oil - spray through the driveshaft bolt holes as shown.

Range Rover Evoque. Rear Drive Axle/Differential

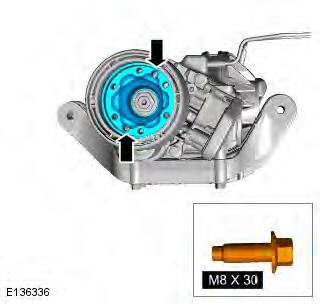

6. NOTE: Driveshaft joint shown removed for clarity.

Range Rover Evoque. Rear Drive Axle/Differential

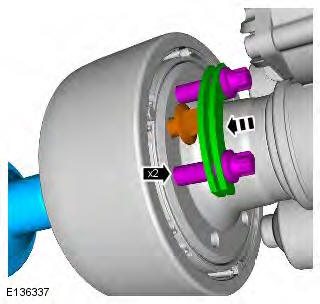

7. NOTES:

Two washers must be installed to the assist in the removal of the driveshaft.

Alternate tighten the bolts until the movement of the driveshaft joint is detected.

Range Rover Evoque. Rear Drive Axle/Differential

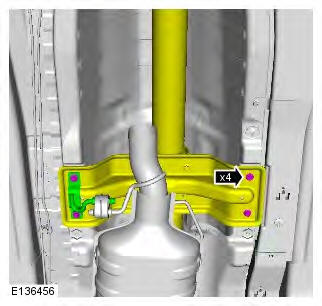

8. CAUTION: Make sure that the driveshaft is supported with suitable retaining straps.

Range Rover Evoque. Rear Drive Axle/Differential

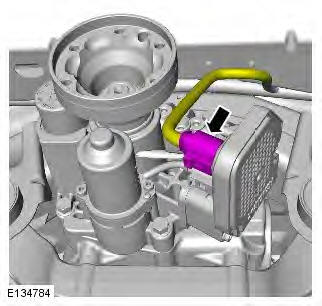

9.

Range Rover Evoque. Rear Drive Axle/Differential

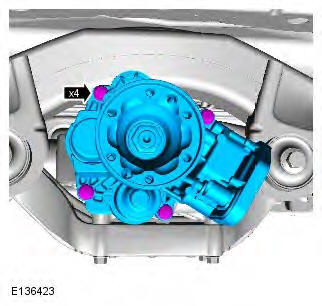

10. CAUTION: Be prepared to collect escaping oil.

NOTE: Remove and discard the O-ring seal.

Range Rover Evoque. Rear Drive Axle/Differential

Installation

1. CAUTIONS:

Make sure that the area around the component is clean and free of foreign material.

Lubricate the O-ring seals.

Only use the specified material to lubricate the seals.

Torque: 24 Nm

Range Rover Evoque. Rear Drive Axle/Differential

2.

Range Rover Evoque. Rear Drive Axle/Differential

3. CAUTION: The component must be aligned with the installation markings. Torque: 40 Nm

Range Rover Evoque. Rear Drive Axle/Differential

4. Torque: 25 Nm

Range Rover Evoque. Rear Drive Axle/Differential

5. Check and top-up the active on-demand coupling fluid level.

Refer to: Active On-Demand Coupling Filling (205-02 Rear Drive Axle/Differential, General Procedures).

6. Refer to: Exhaust System (309-00B Exhaust System - TD4 2.2L Diesel, Removal and Installation).
