Range Rover Evoque: Defrost Vent/Register Blend Door Actuator LHD AWD/LHD
FWD
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
2. Refer to: Glove Compartment (501-12 Instrument Panel and Console,
Removal and Installation).

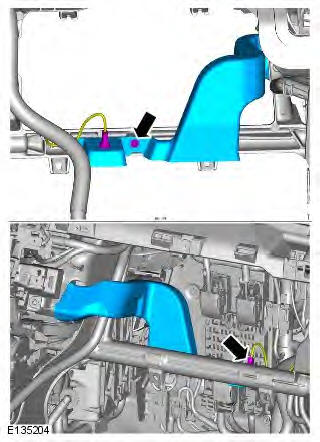

3.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5090.jpg)
4.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5091.jpg)

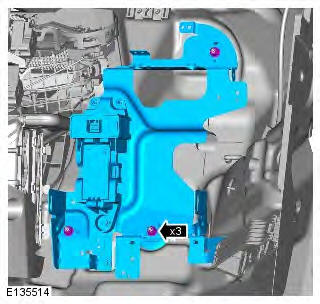

5. Torque: 10 Nm
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5092.jpg)

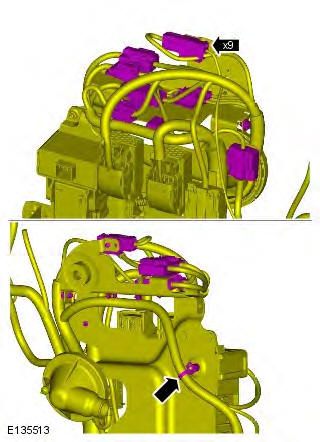

6.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5093.jpg)
7.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5094.jpg)

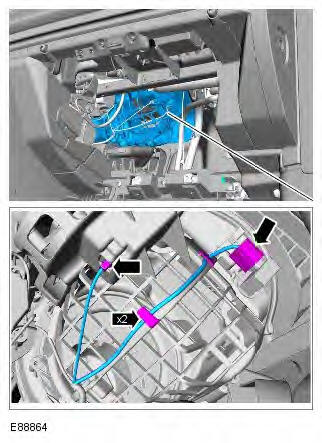

8.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5095.jpg)

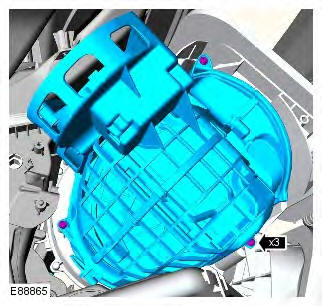

9.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5096.jpg)

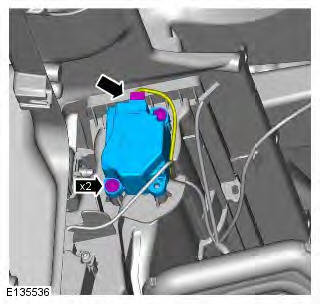

10.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5097.jpg)
Installation
1. To install, reverse the removal procedure.
2. If a new component has been installed, configure using Land Rover
approved diagnostic equipment.
Ambient Air Quality Sensor
Removal
NOTES:
LHD shown, RHD is similar.
Removal steps in this procedure may contain installation details.
1. Disconnect the battery ground cable.
Refer to: Specifications (414-01 Battery, Mounting and Cables,
Specifications).
2. Refer to: Central Junction Box (CJB) (418-00 Module Communications
Network, Removal and Installation).

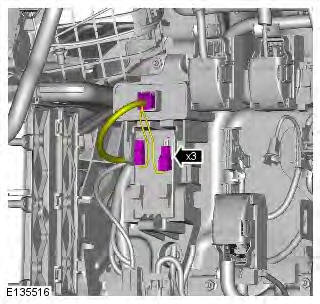

3.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5098.jpg)
4. Torque: 10 Nm
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5099.jpg)
5.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5100.jpg)

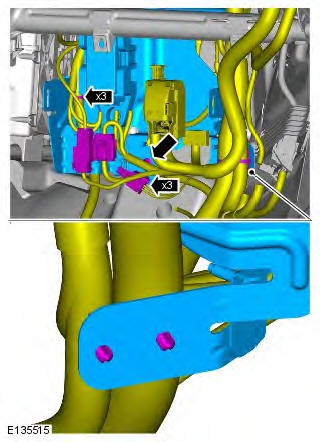

6.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5101.jpg)

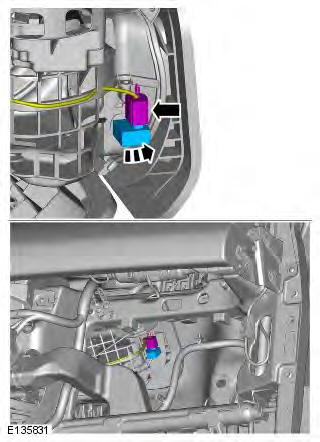

7.
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5102.jpg)
Installation
1. To install, reverse the removal procedure.
Climate Control

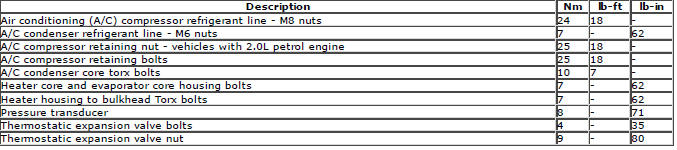

Torque Specifications
![Range Rover Evoque. Climate Control](images/books/3096/evoque_fwd_5103.jpg)
