Range Rover Evoque: Differential Rear Bushing

Special Tool(s)

205-860-09
Installer, Differential Bushing

205-861-01
Remover, Differential Bushing

205-861-02
Remover/Installer, Differential Bushing

205-861-03
Installer, Differential Bushing

205-861-04
Installer, Differential Bushing

205-861-05
Installer, Differential Bushing

LR-121
Hydraulic Cylinder 10t

Removal

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Remove both rear wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

3. Remove the rear differential.

Refer to: Differential Case - Vehicles With: M66 6-Speed Manual Transmission AWD (205-02 Rear Drive Axle/Differential, Removal and Installation).

Refer to: Differential Case - Vehicles With: AWF21 6-Speed Automatic Transmission (205-02 Rear Drive Axle/Differential, Removal and Installation).

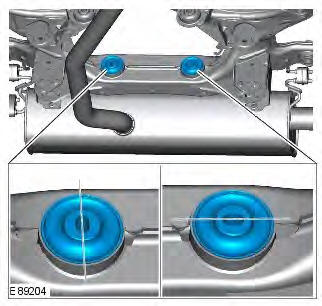

4. Take note of the fitted position of the rear bushings.

The RH bushing slot is positioned vertically and the LH bushing slot is positioned horizontally.

Range Rover Evoque. Rear Drive Axle/Differential

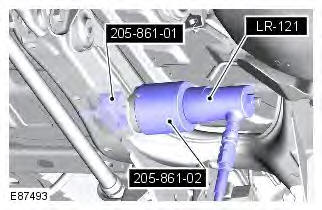

5. CAUTION: Note the fitted position of the component prior to removal. Using the special tool, remove the bushing.

Special Tool(s): 205-861-01, 205-861-02, LR-121

Range Rover Evoque. Rear Drive Axle/Differential

Installation

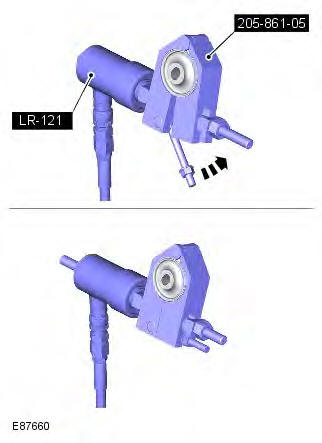

1. CAUTION: Only use the specified special tool. Using the special tool, compress the bushing.

Special Tool(s): 205-860-09, 205-861-05, LR-121

Range Rover Evoque. Rear Drive Axle/Differential

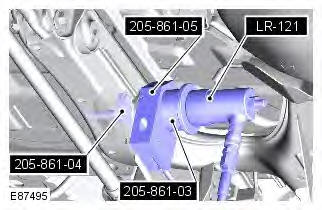

2. CAUTION: Make sure the correct special tool is used to install the bushings to the correct depth.

NOTE: Make sure that these components are installed to the noted removal position. Using the special tool, install the bushing, making sure the slot on the RH bushing is positioned vertically and the slot on the LH bushing is positioned horizontally.

Special Tool(s): LR-121, 205-861-04, 205-861-03, 205-861-05

Range Rover Evoque. Rear Drive Axle/Differential

3. Install the rear differential.

Refer to: Differential Case - Vehicles With: M66 6-Speed Manual Transmission AWD (205-02 Rear Drive Axle/Differential, Removal and Installation).

Refer to: Differential Case - Vehicles With: AWF21 6-Speed Automatic Transmission (205-02 Rear Drive Axle/Differential, Removal and Installation).

4. Install the rear wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).
