Engine compartment overview
Engine compartment overview

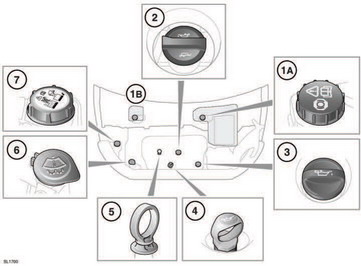

2.0L petrol engine

1. Brake/clutch fluid reservoir caps (beneath covers): A. Left-hand drive vehicles.

B. Right-hand drive vehicles.

2. Engine oil filler cap.

5. Oil level dipstick.

6. Washer fluid filler cap.

7. Engine coolant filler cap.

possibility Do not drive if there is a possibility that leaked fluid will come into contact with a hot surface, such as the exhaust.

2.2L Diesel engine

1. Brake/clutch fluid reservoir cap (beneath covers): A. Left-hand drive vehicles.

B. Right-hand drive vehicles.

3. Engine oil filler cap.

4. Oil level dipstick.

6. Washer fluid filler cap.

7. Engine coolant filler cap.
