Range Rover Evoque: Engine Timing

Special Tool(s)

Range Rover Evoque. Engine - GTDi 2.0L Petrol303-1565
Locking Tool, Camshaft

Range Rover Evoque. Engine - GTDi 2.0L Petrol308-511
Installer, Transmission Output Shaft Seal

Range Rover Evoque. Engine - GTDi 2.0L PetrolJLR-303-1594
Locking Tool, Driveplate

Range Rover Evoque. Engine - GTDi 2.0L PetrolJLR-303-748
Locking Tool, Crankshaft

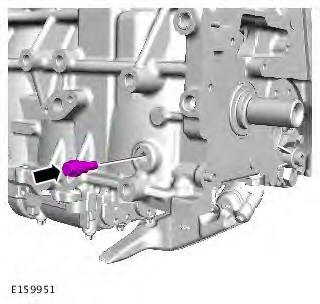

Activation

1.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

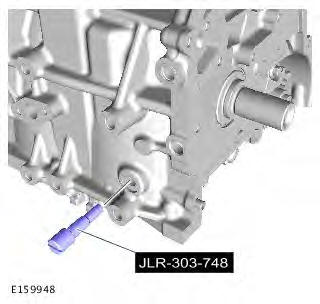

2. Install the special tool.

Special Tool(s): JLR-303-748

Range Rover Evoque. Engine - GTDi 2.0L Petrol

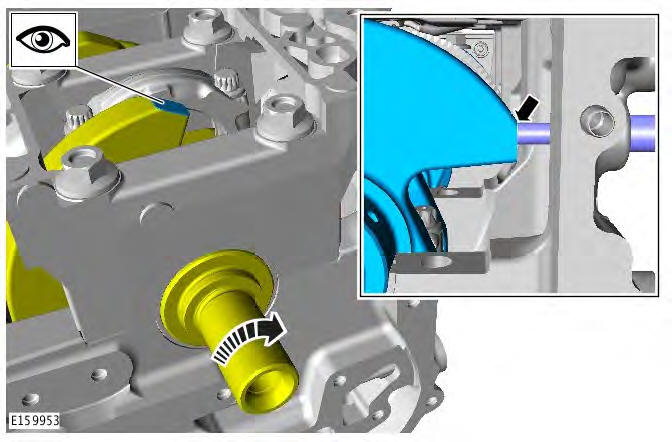

3. Rotate the engine clockwise until the crankshaft stops against the special tool as indicated.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

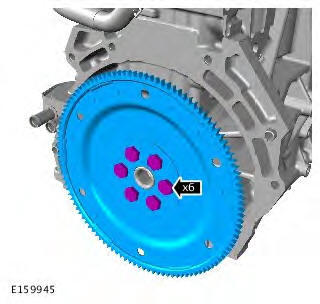

4. CAUTION: Make sure that new bolts are installed. Install all the bolts finger tight before final tightening.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

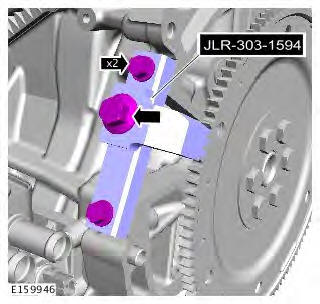

5. Install the special tool.

Special Tool(s): JLR-303-1594

Range Rover Evoque. Engine - GTDi 2.0L Petrol

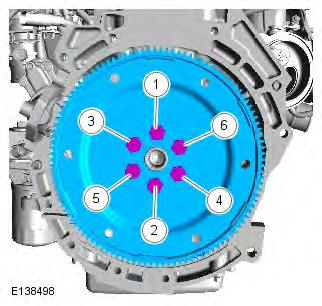

6. NOTE: Tighten the retaining bolts in the sequence shown.

Torque:

Range Rover Evoque. Engine - GTDi 2.0L Petrol

7. CAUTION: Note the orientation of the crankshaft sprocket.

NOTE: Install but do not tighten fixing at this stage.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

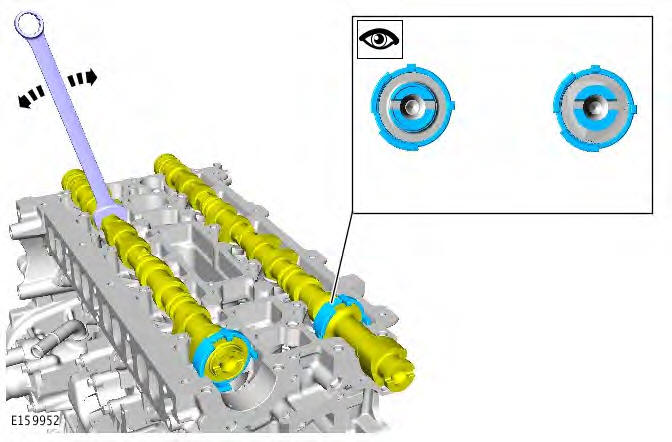

8. Rotate the engine until the trigger wheel gap and camshafts are positioned as indicated.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

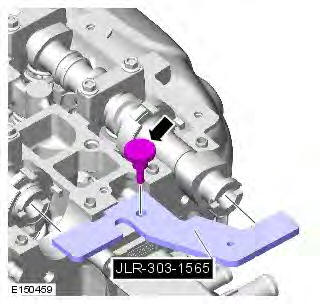

9. Install the special tool.

Special Tool(s): 303-1565

Range Rover Evoque. Engine - GTDi 2.0L Petrol

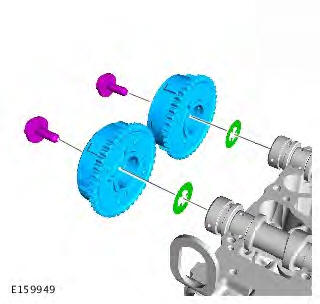

10. CAUTION: Make sure new washers are installed.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

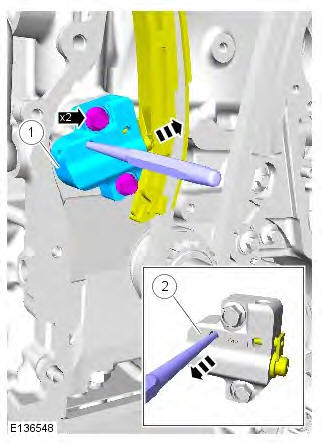

11. CAUTIONS:

Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning.

Make sure that these components are installed to the noted removal position.

Only tighten the bolts finger-tight at this stage.

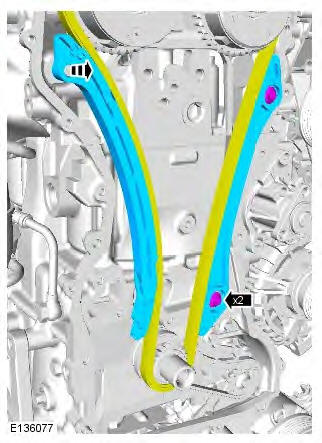

Range Rover Evoque. Engine - GTDi 2.0L Petrol

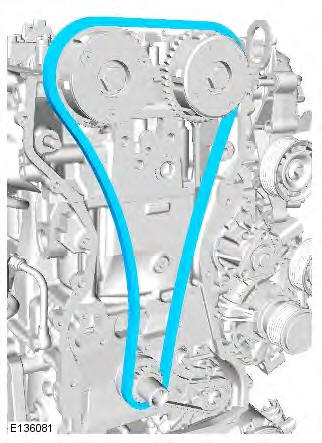

12.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

13. Torque: 9 Nm

Range Rover Evoque. Engine - GTDi 2.0L Petrol

14. Torque: 9 Nm

Range Rover Evoque. Engine - GTDi 2.0L Petrol

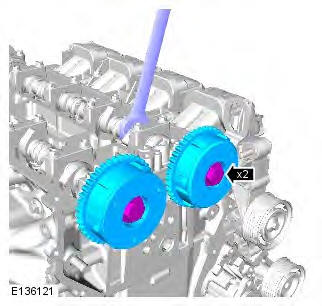

15. CAUTION: Use an open-ended wrench to hold the camshafts by the hexagon to prevent the camshafts from turning. Torque: 72 Nm

Range Rover Evoque. Engine - GTDi 2.0L Petrol

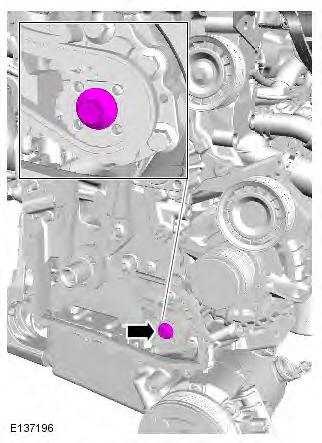

16. CAUTION: Using a suitable tool, hold the oil pump gear when installing the centre bolt. Torque: 25 Nm

Range Rover Evoque. Engine - GTDi 2.0L Petrol

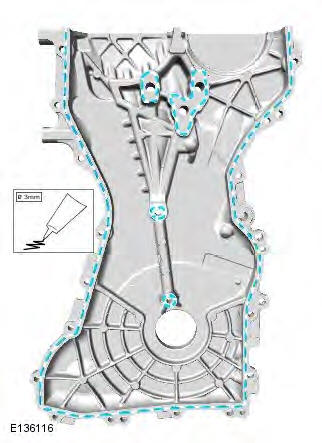

17. CAUTION: Apply sealant WSE-M4G323-A6 in a 4-7mm diameter on the engine front cover as shown.

The component must be installed and tightened within 10 minutes of sealant application.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

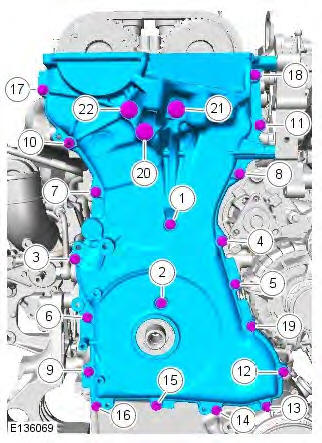

18. CAUTION: Tighten the bolts in the sequence shown.

Torque:

Range Rover Evoque. Engine - GTDi 2.0L Petrol

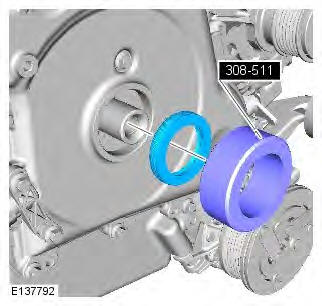

19. Special Tool(s): 308-511

Range Rover Evoque. Engine - GTDi 2.0L Petrol

20. CAUTIONS:

Only tighten the bolt finger-tight at this stage.

Make sure that the mating faces are clean and free of foreign material.

NOTE: Apply WSS-M2C913-B or WSS-M2C913-C oil on the damper sealing surface prior to installation.

Range Rover Evoque. Engine - GTDi 2.0L Petrol

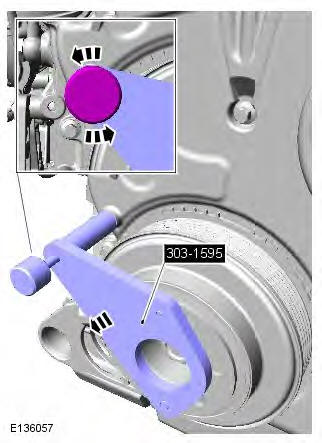

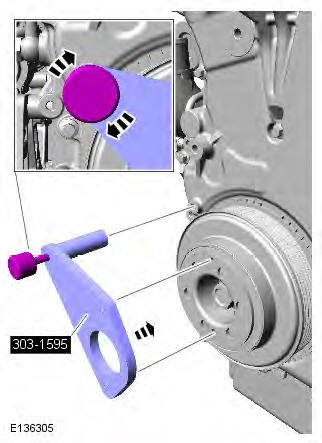

21. CAUTION: Rotate the crankshaft damper to align special tool 303-1595. Do not rotate the crankshaft. Install the special tool

Range Rover Evoque. Engine - GTDi 2.0L Petrol

22. Remove the special tool

Range Rover Evoque. Engine - GTDi 2.0L Petrol

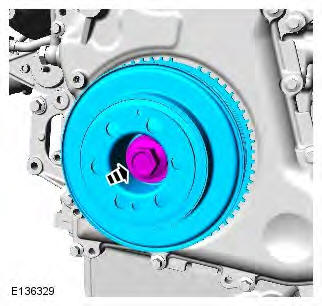

23.

Torque:
