Range Rover Evoque: Front Seat Cushion Cover Vehicles With: Sports Seats

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Body and Paint / Seating / Front Seat Cushion Cover Vehicles With: Sports Seats

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Prior to carrying out the step by step procedure below, Steps 2 and 3 must be followed for knowledge on how to correctly install and care for the seat cover.

2.

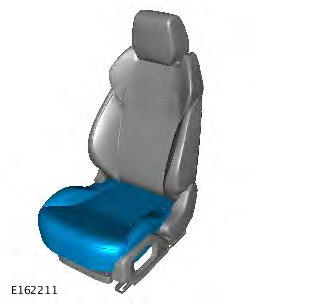

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

3.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

4. If required, follow the steps below to carry out the removal and installation procedure.

5. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

6. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

7. Refer to: Front Seat Control Switch (501-10 Seating, Removal and Installation).

8. Refer to: Front Seat (501-10 Seating, Removal and Installation).

9. NOTE: Note the fitted position of the component prior to removal.

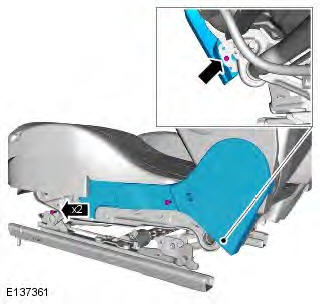

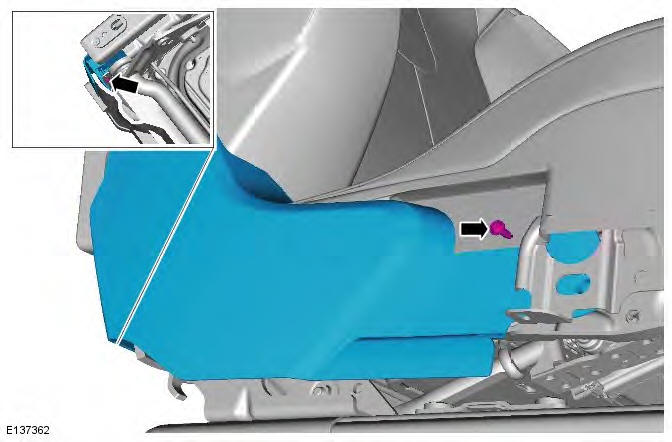

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

10.

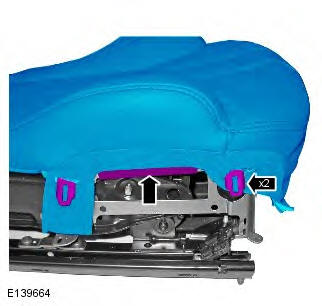

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

11.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

12.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

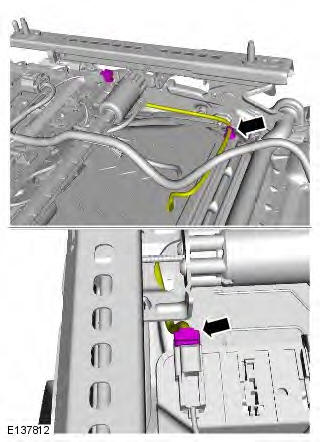

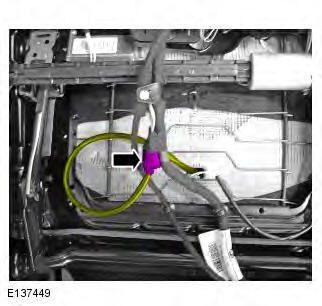

Vehicles with heated front seats

13. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

Non NAS vehicles

14. CAUTION: Make sure the component is aligned as shown.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

All vehicles

15.

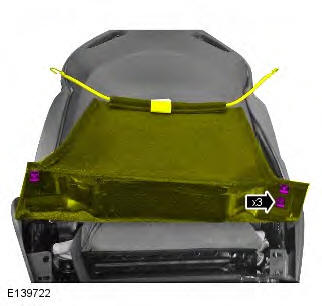

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

16.

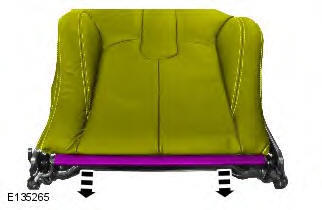

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

17.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

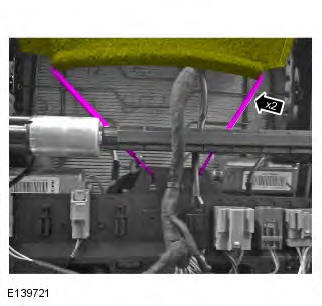

18. WARNING: Wear safety goggles and protective gloves.

NOTE: Do not disassemble further if the component is removed for access only.

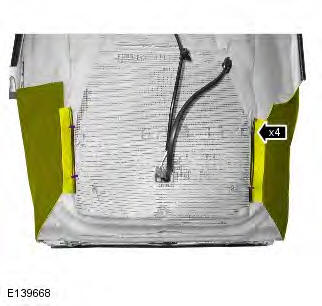

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

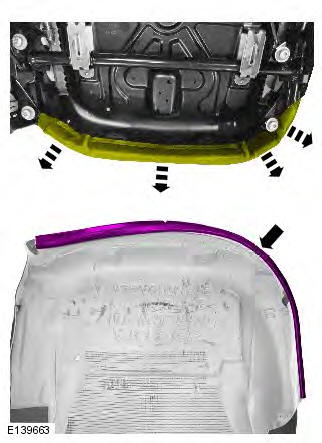

19. WARNING: Wear safety goggles and protective gloves.

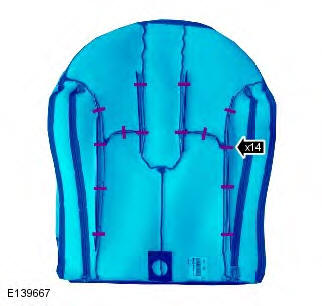

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

Installation

1. NOTES:

Make sure that new hog rings are installed.

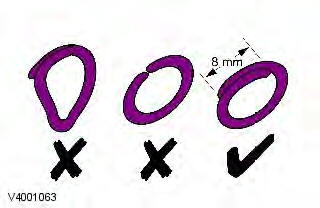

Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

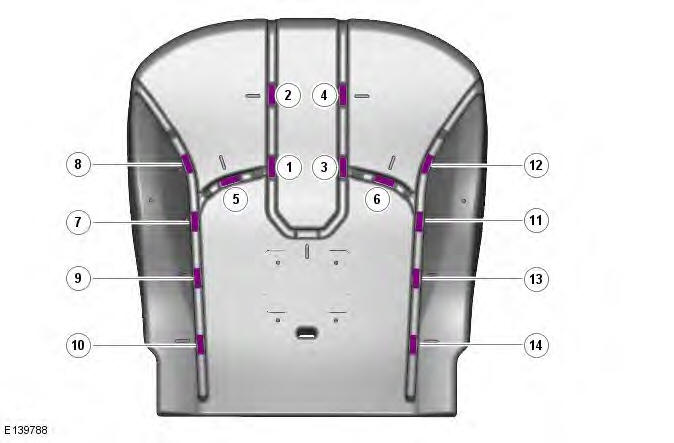

2. NOTE: Make sure that the hogrings are installed in the sequence shown.

Range Rover Evoque. Front Seat Cushion Cover Vehicles With: Sports Seats

3. To install, reverse the removal procedure.
