Range Rover Evoque: Fuel Charging and Controls - Component Location, System Operation and Component Description

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Engine / Fuel Charging and Controls - GTDi 2.0L Petrol / Fuel Charging and Controls - Component Location, System Operation and Component Description

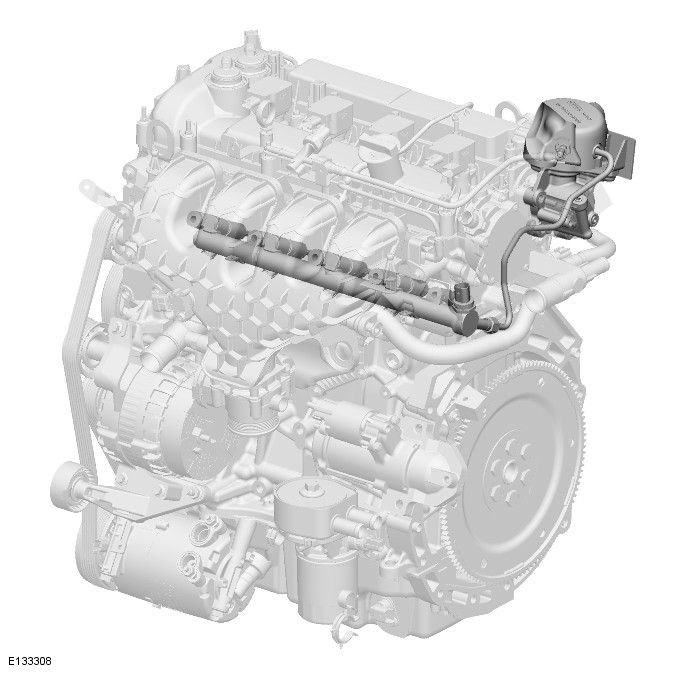

Component Location

COMPONENT LOCATION

Range Rover Evoque. Fuel Charging and Controls - GTDi 2.0L Petrol

Overview

OVERVIEW

The 2.0L GTDi engine is equipped with a high-pressure direct injection system controlled by the ECM (engine control module). A high-pressure fuel pump delivers a uniform level of pressure to the shared fuel rail, which serve all 4 fuel injectors. Pressure is controllable, to the optimum level for smooth operation, up to 150 bar (2175 lbf/in
