Range Rover Evoque: Halfshaft Seal RH Vehicles With: M66 6-Speed Manual Transmission AWD

Special Tool(s)

303-1300
Remover, Crankshaft Seal

303-882
Installer, Halfshaft Seal

Removal

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Front Halfshaft RH - LHD AWD/RHD AWD (205-04 Front Drive Halfshafts, Removal and Installation).

3. CAUTIONS: Make sure that the area around the component is clean and free of foreign material.

Take extra care not to damage the mating faces.

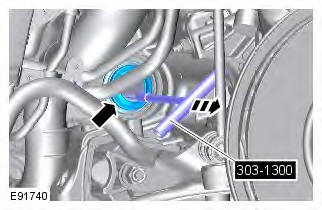

Special Tool(s): 303-1300

Range Rover Evoque. Manual Transmission/Transaxle

Installation

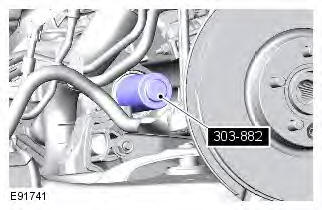

1. Special Tool(s): 303-882

Range Rover Evoque. Manual Transmission/Transaxle

2. Refer to: Front Halfshaft RH - LHD AWD/RHD AWD (205-04 Front Drive Halfshafts, Removal and Installation).

Halfshaft Seal LH

Special Tool(s)

303-1300
Remover, Crankshaft Seal

307-596
Installer, Halfshaft Seal

Removal

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

3. CAUTIONS: Take extra care not to damage the mating faces.

Make sure that the area around the component is clean and free of foreign material.

NOTE: Some oil spillage is inevitable during this operation.

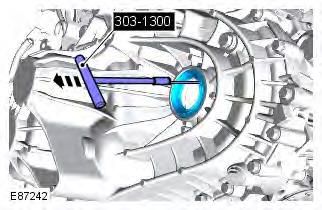

Special Tool(s): 303-1300

Range Rover Evoque. Manual Transmission/Transaxle

Installation

1. CAUTION: Take extra care not to damage the seal.

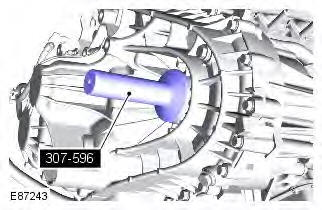

Special Tool(s): 307-596

Range Rover Evoque. Manual Transmission/Transaxle

2. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

Input Shaft Seal

Special Tool(s)

303-538
Remover/Installer, Crankshaft Oil Seal

308-643
Installer, Input Shaft Seal

Removal

1. Refer to: Clutch Slave Cylinder (308-02 Clutch Controls - Vehicles With: M66 6-Speed Manual Transmission AWD, Removal and Installation).

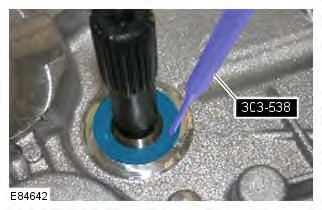

2. CAUTION: Take special care to avoid damaging the bearing. Special Tool(s): 303-538

Range Rover Evoque. Manual Transmission/Transaxle

3. Screw a 2.5 x 15 mm self-tapping screw, a maximum of 2 turns into the input shaft seal and remove the seal using a pair of pliers.

Range Rover Evoque. Manual Transmission/Transaxle

Installation

1. Apply adhesive tape over the splines of the input shaft to prevent the input shaft oil seal being damaged.

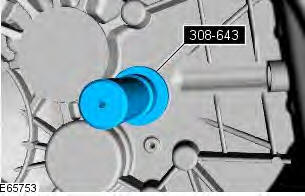

2. Special Tool(s): 308-643

Range Rover Evoque. Manual Transmission/Transaxle

3. Remove the adhesive tape.

4. Refer to: Clutch Slave Cylinder (308-02 Clutch Controls - Vehicles With: M66 6-Speed Manual Transmission AWD, Removal and Installation).
