Range Rover Evoque: Transmission Vehicles With: M66 6-Speed Manual Transmission AWD - Installation

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Manual Transmission & Transaxle / Manual Transmission/Transaxle / Transmission Vehicles With: M66 6-Speed Manual Transmission AWD - Installation

Installation

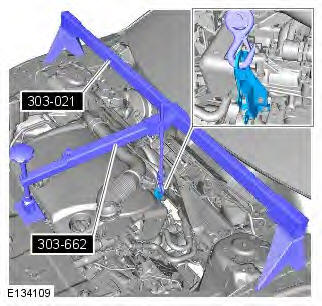

Special Tool(s)

303-021
Engine support bracket

303-662
Support Beam Arm and Hook Assembly, Engine

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

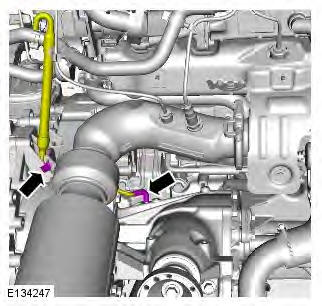

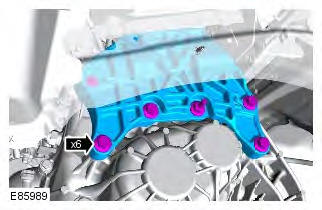

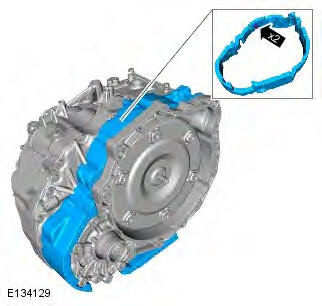

1. NOTE: This step is only required if previously removed.

Range Rover Evoque. Manual Transmission/Transaxle

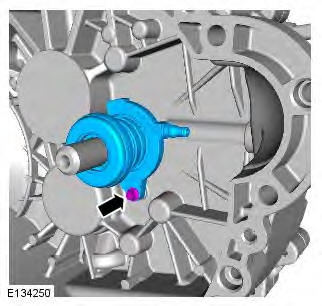

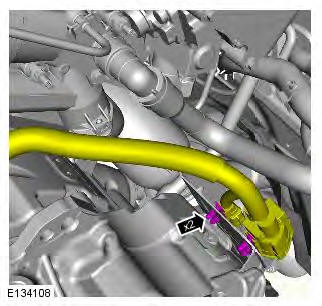

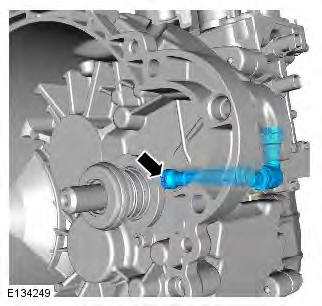

2. NOTE: This step is only required if previously removed.

Torque: 12 Nm

Range Rover Evoque. Manual Transmission/Transaxle

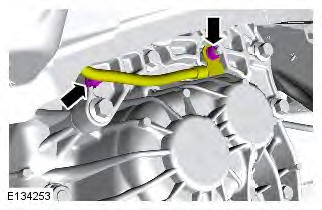

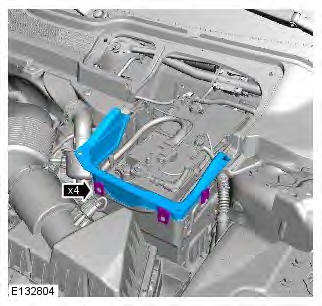

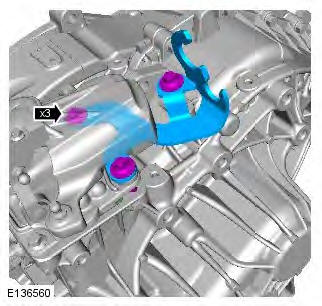

3. NOTE: This step is only required if previously removed.

Torque: 11 Nm

Range Rover Evoque. Manual Transmission/Transaxle

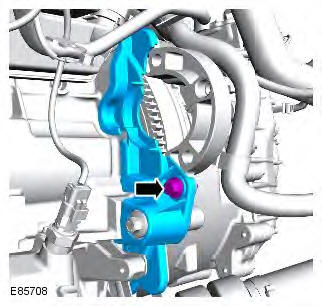

4. NOTE: This step is only required if previously removed.

Range Rover Evoque. Manual Transmission/Transaxle

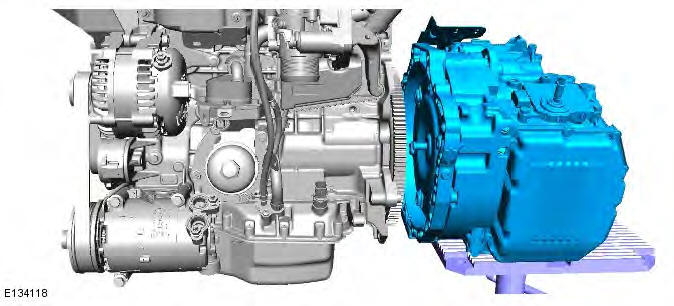

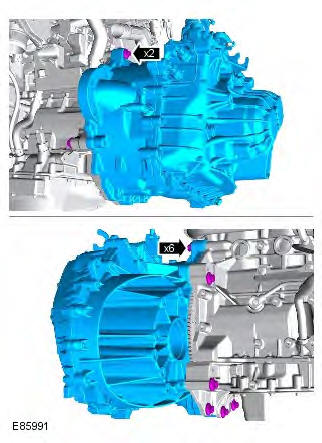

5. CAUTIONS: On removal and installation of the transmission, make sure that the transsmission does not damage the brake pipe.

Make sure that the component is correctly located on the locating dowels.

Make sure that the mating faces are clean and free of corrosion and foreign material.

NOTE: Automatic transmission shown, manual is similar.

Range Rover Evoque. Manual Transmission/Transaxle

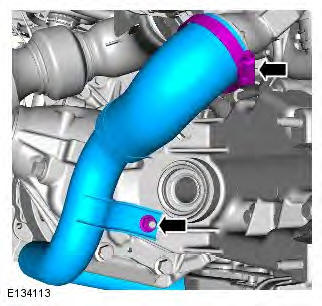

6. Torque: 65 Nm

Range Rover Evoque. Manual Transmission/Transaxle

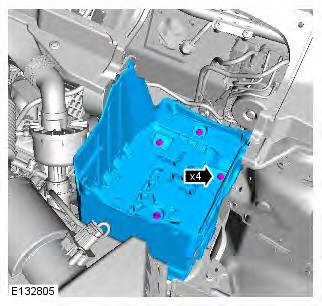

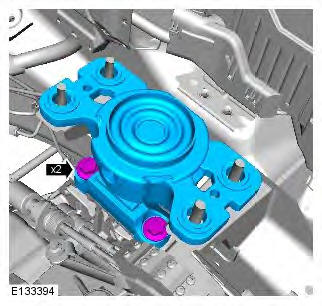

7. Torque: 60 Nm

Range Rover Evoque. Manual Transmission/Transaxle

8. Torque: 24 Nm

Range Rover Evoque. Manual Transmission/Transaxle

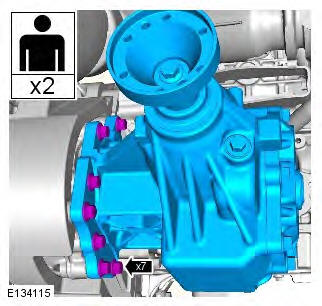

9. Torque:

Range Rover Evoque. Manual Transmission/Transaxle

10. Torque: 24 Nm

Range Rover Evoque. Manual Transmission/Transaxle

11. NOTE: Automatic transmission shown, manual is similar.

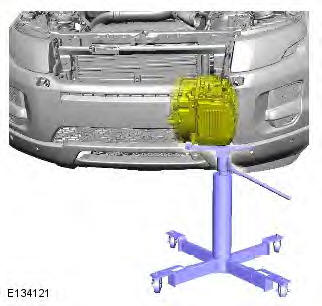

Remove the transmission jack.

Range Rover Evoque. Manual Transmission/Transaxle

12. Torque: 60 Nm

Range Rover Evoque. Manual Transmission/Transaxle

13.

Range Rover Evoque. Manual Transmission/Transaxle

14. Torque: 65 Nm

Range Rover Evoque. Manual Transmission/Transaxle

15. Torque: 24 Nm

Range Rover Evoque. Manual Transmission/Transaxle

16. CAUTION: Make sure that new bolts are installed. Torque: 40 Nm

Range Rover Evoque. Manual Transmission/Transaxle

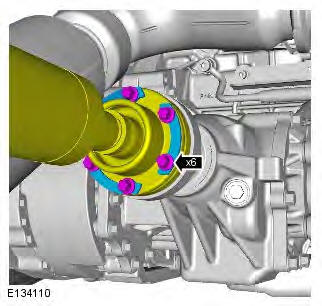

17. Torque:

Range Rover Evoque. Manual Transmission/Transaxle

18. NOTE: Automatic transmission shown, manual is similar.

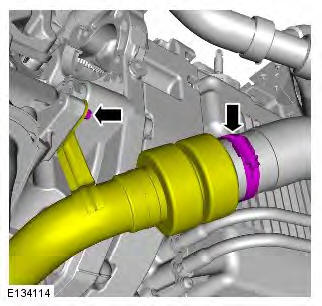

Torque:

Range Rover Evoque. Manual Transmission/Transaxle

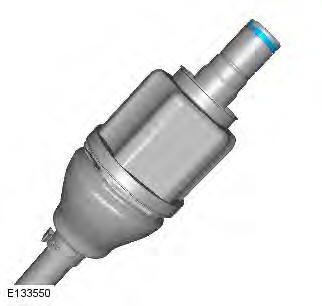

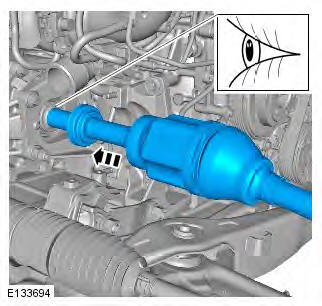

19. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

Range Rover Evoque. Manual Transmission/Transaxle

20. CAUTION: LH illustration shown, RH is similar.

Range Rover Evoque. Manual Transmission/Transaxle

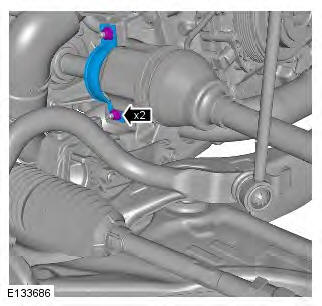

21. Torque: 25 Nm

Range Rover Evoque. Manual Transmission/Transaxle

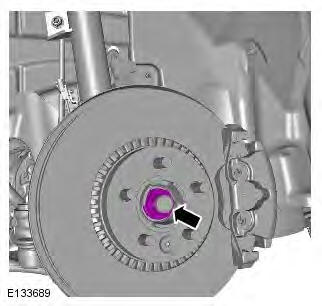

22. WARNING: Make sure that a new nut is installed.

CAUTIONS: Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Install the halfshaft nut finger tight.

Torque: 120 Nm

Range Rover Evoque. Manual Transmission/Transaxle

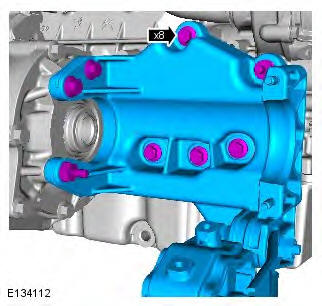

23. NOTES: This step is only required if previously removed.

Automatic transmission shown, manual is similar

Range Rover Evoque. Manual Transmission/Transaxle

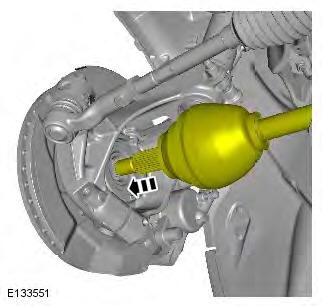

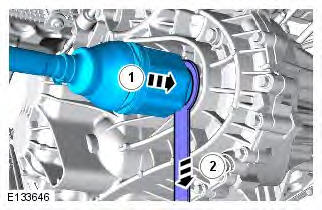

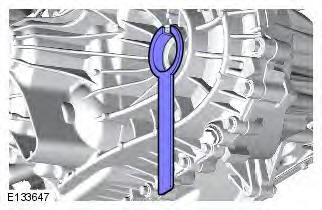

24. NOTE: Do not fully engage the halfshaft until the oil seal protector has been removed. To prevent oil seal damage use the protector when installing the shaft into the transmission. It is not a special tool but is available from the Parts Catalogue.

Range Rover Evoque. Manual Transmission/Transaxle

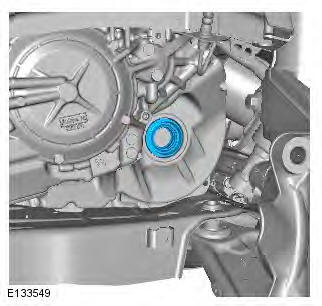

25.

Range Rover Evoque. Manual Transmission/Transaxle

26. CAUTION: Keep the halfshaft horizontal to avoid damaging the oil seal.

NOTE: Do not fully engage the halfshaft until the oil seal protector has been removed.

Range Rover Evoque. Manual Transmission/Transaxle

27.

Range Rover Evoque. Manual Transmission/Transaxle

28. WARNING: Make sure that a new nut is installed.

CAUTIONS: Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.

Install the halfshaft nut finger tight.

Torque: 120 Nm

Range Rover Evoque. Manual Transmission/Transaxle

29. Refer to: Transmission Draining and Filling (308-03 Manual Transmission/Transaxle, General Procedures).

30. Refer to: Front Subframe (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

31. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

32. Install the front wheels and tires.

Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

33. Lower the vehicle.

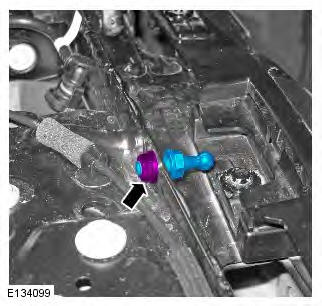

34.

Range Rover Evoque. Manual Transmission/Transaxle

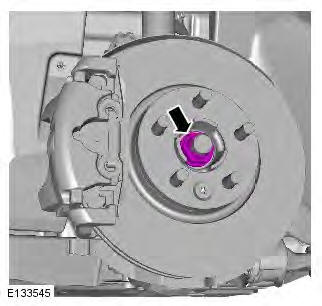

35. Torque: 175 Nm

Range Rover Evoque. Manual Transmission/Transaxle

36. Torque:

Range Rover Evoque. Manual Transmission/Transaxle

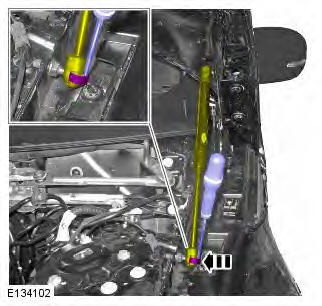

37. Remove the special tools.

Special Tool(s): 303-021, 303-662

Range Rover Evoque. Manual Transmission/Transaxle

38. Repeat the above step for the other side.

Range Rover Evoque. Manual Transmission/Transaxle

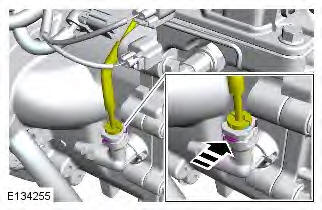

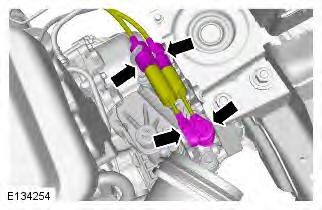

39.

Range Rover Evoque. Manual Transmission/Transaxle

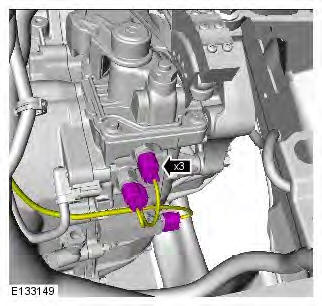

40.

Range Rover Evoque. Manual Transmission/Transaxle

41.

Range Rover Evoque. Manual Transmission/Transaxle

42.

Range Rover Evoque. Manual Transmission/Transaxle

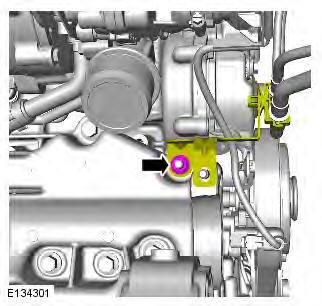

43. Torque: 10 Nm

Range Rover Evoque. Manual Transmission/Transaxle

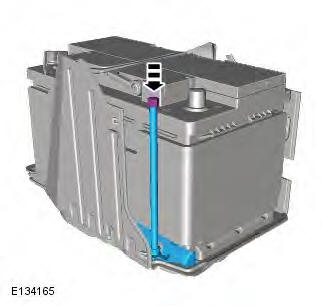

44.

Range Rover Evoque. Manual Transmission/Transaxle

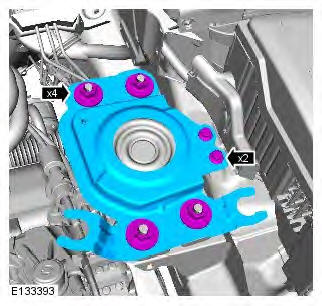

45. Torque: 12 Nm

Range Rover Evoque. Manual Transmission/Transaxle

46.

Range Rover Evoque. Manual Transmission/Transaxle

47.

Range Rover Evoque. Manual Transmission/Transaxle

48.

Range Rover Evoque. Manual Transmission/Transaxle

49. Refer to: Starter Motor (303-06A Starting System - TD4 2.2L Diesel, Removal and Installation).

50. Refer to: Plenum Chamber (412-01 Climate Control, Removal and Installation).

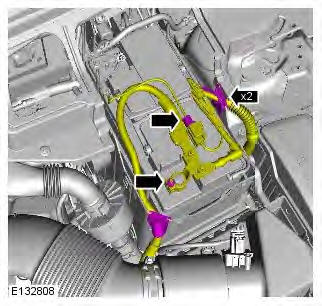

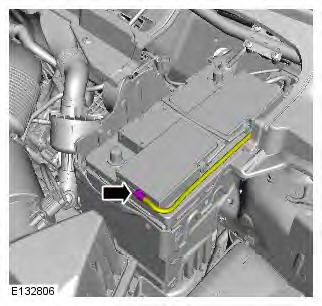

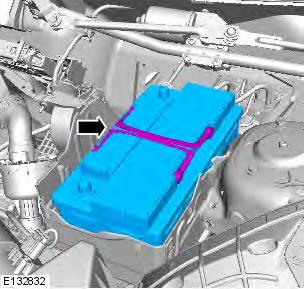

51. Connect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

52. Refer to: Clutch System Bleeding (308-00 Manual Transmission/Transaxle and Clutch - General Information, General Procedures).
