Range Rover Evoque: Parking Aid - Component Location

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Instrumentation and Warning Systems / Parking Aid / Parking Aid - Component Location

NOTE: Park assist is not available to all markets.

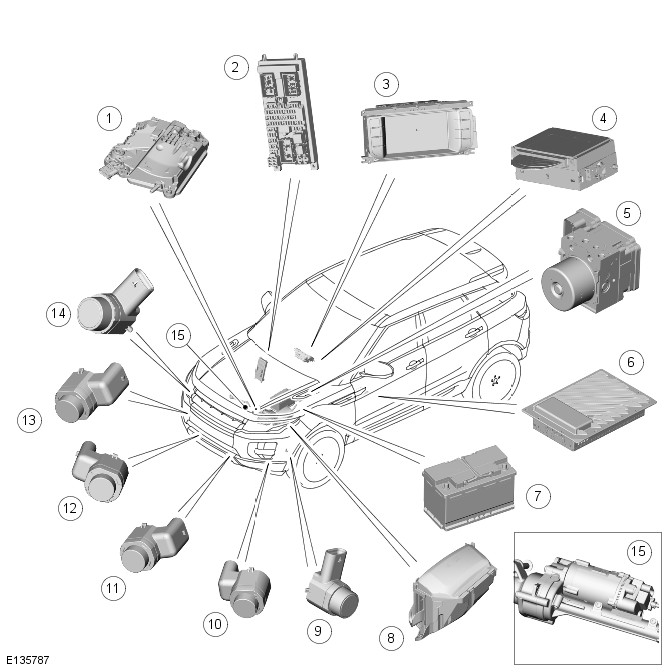

COMPONENT LOCATION - SHEET 1 OF 4 - PARKING AID AND PARK ASSIST

Range Rover Evoque. Parking Aid

  1. TCM (transmission control module)
  2. CJB (central junction box)
  3. Touch Screen Display (TSD)
  4. Integrated Audio Module (IAM)
  5. ABS (anti-lock brake system) module
  6. Audio power amplifier (Hi-Line only)
  7. Battery
  8. BJB (battery junction box)
  9. LH (left-hand) front slot detect parking aid sensor
  10. LH front outer parking aid sensor
  11. LH front inner parking aid sensor
  12. RH (right-hand) front inner parking aid sensor
  13. RH front outer parking aid sensor
  14. RH front slot detect parking aid sensor
  15. Electric power assisted steering rack

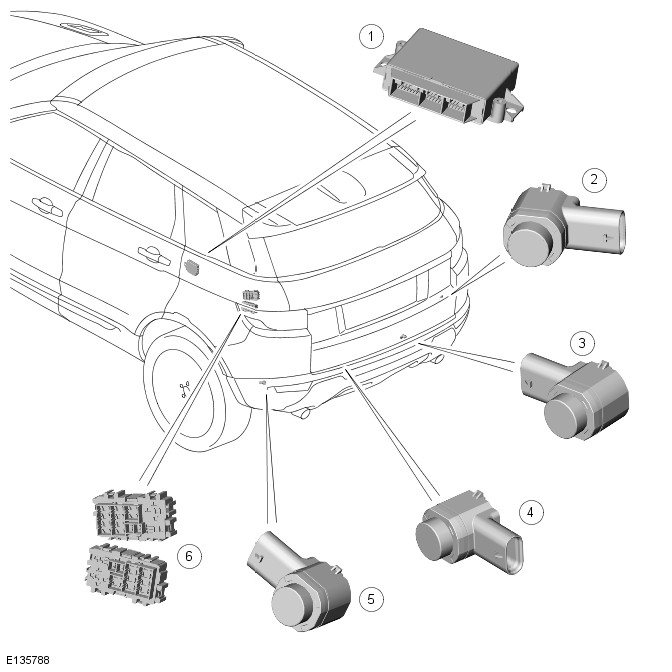

COMPONENT LOCATION - SHEET 2 OF 4 - PARKING AID AND PARK ASSIST

Range Rover Evoque. Parking Aid

  1. Park distance control module
  2. RH rear outer parking aid sensor
  3. RH rear inner parking aid sensor
  4. LH rear inner parking aid sensor
  5. LH rear outer parking aid sensor
  6. RJB (rear junction box)

COMPONENT LOCATION - SHEET 3 OF 4 - REAR VIEW CAMERA SYSTEM (LOW-LINE)

Range Rover Evoque. Parking Aid

  1. CJB
  2. Touch Screen Display (TSD)
  3. Rear view camera
  4. BJB
  5. Battery

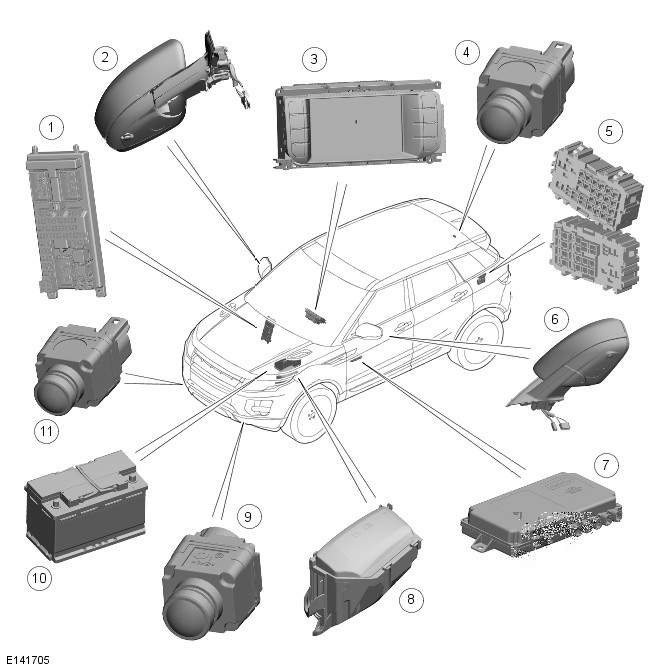

COMPONENT LOCATION - SHEET 4 OF 4 - PROXIMITY CAMERA SYSTEM (HI-LINE)

Range Rover Evoque. Parking Aid

  1. CJB
  2. RH mirror camera
  3. Touch Screen Display (TSD)
  4. Rear view camera
  5. RJB
  6. LH mirror camera
  7. Proximity camera control module
  8. BJB
  9. LH front bumper camera
  10. Battery
  11. RH front bumper camera
