Range Rover Evoque: Transmission Fluid Drain and Refill

Draining

WARNING: Observe due care when draining, as the fluid can be very hot.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. Make sure that the automatic transmission is in the PARK position and the handbrake is fully applied.

2. Refer to: Gear Shift Module (307-05 Automatic Transmission/Transaxle External Controls - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

3. WARNING: Make sure to support the vehicle with axle stands.

NOTE: Make sure that the vehicle is standing on a level surface.

Raise and support the vehicle.

4. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

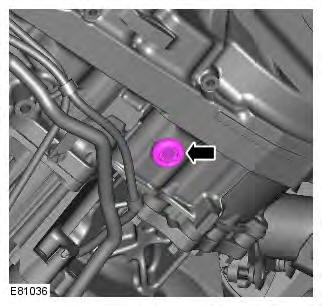

5. CAUTION: Make sure that the area around the component is clean and free of foreign material.

NOTE: Remove and discard the O-ring seal.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

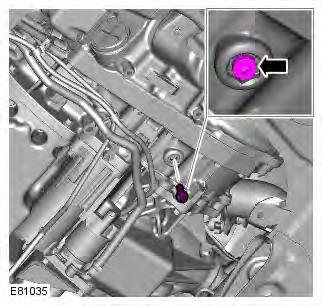

6. CAUTION: The fluid level plug and drain plug both use the same point on the transmission. The inner plug is for level indication and the outer plug is to drain the fluid.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

7. NOTE: Remove and discard the sealing washer.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

8. NOTE: Install a new sealing washer. Torque: 47 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Filling

WARNING: Observe due care when draining, as the fluid can be very hot.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. Lower the vehicle.

2. Fill the transmission with the correct fluid until it runs from the level plug.

Refer to: Specifications (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Specifications).

3. Raise the vehicle.

4. Torque: 7 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

5. Lower the vehicle.

6. Add an additional 0.5 litres of transmission fluid.

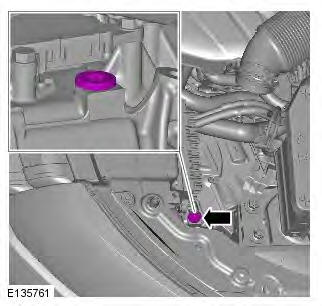

7. CAUTION: A new O-ring seal is to be installed.

Torque: 40 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

8. Refer to: Gear Shift Module (307-05 Automatic Transmission/Transaxle External Controls - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

9. Connect the Land Rover approved diagnostic equipment. Start and run the engine.

10. Using the diagnostic equipment to monitor the transmission fluid temperature, allow the temperature to reach 50 to 60 degrees C.

11. Move the selector lever from the PARK position, through all the gear positions, pausing in each gear position for 2-3 seconds and return to the PARK position.

12. Raise the vehicle.

13. NOTES:

With the engine running a small amount of automatic transmission fluid should drip out of the level plug.

Remove and discard the O-ring seal.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

14. CAUTION: A new O-ring seal is to be installed. Torque: 7 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

15. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

Selector Shaft Seal GTDi 2.0L Petrol

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Transmission Control Module (TCM) - GTDi 2.0L Petrol (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

3. CAUTIONS:

Take extra care not to damage the mating faces.

Make sure that a new component is installed.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

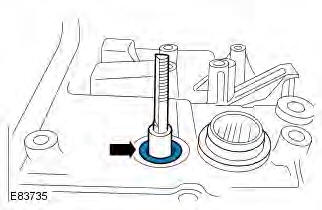

1. CAUTIONS:

Make sure that the mating faces are clean and free of foreign material.

Install the seal, flush with the transmission case.

To install, reverse the removal procedure.
