Range Rover Evoque: Condenser TD4 2.2L Diesel

Removal

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

NOTES: Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - TD4 2.2L Diesel (412-00 Climate Control System - General Information, General Procedures).

3. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

4. Refer to: Charge Air Cooler (303-12A Intake Air Distribution and Filtering - TD4 2.2L Diesel, Removal and Installation).

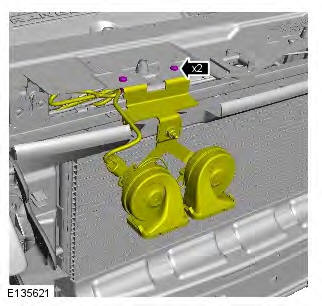

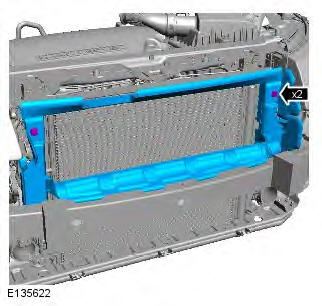

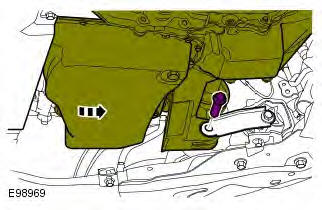

5. Torque: 10 Nm

Range Rover Evoque. Climate Control

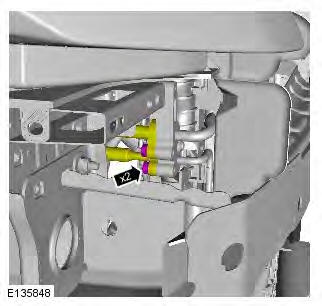

6. CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTES: Remove and discard the O-ring seals.

Lubricate the O-ring seals with clean refrigerant oil.

Torque: 24 Nm

Range Rover Evoque. Climate Control

7.

Range Rover Evoque. Climate Control

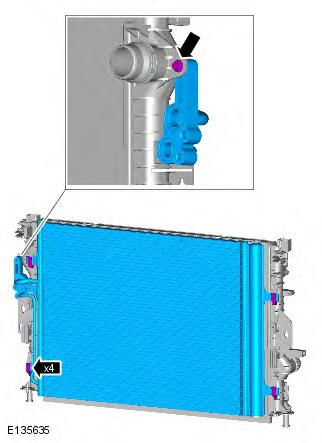

8. CAUTION: Take extra care not to damage the component.

Torque: 5 Nm

Range Rover Evoque. Climate Control

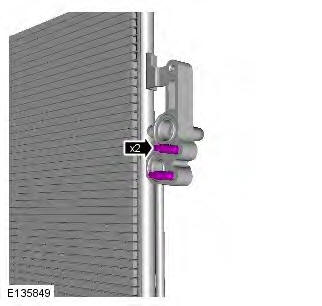

9. NOTE: This step is only required if a new component is installed.

Torque: 6 Nm

Range Rover Evoque. Climate Control

Installation

1. To install, reverse the removal procedure.

Ambient Air Temperature Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. The ambient air temperature sensor is an integral part of the door mirror and cannot be removed. A new door mirror must be installed.

Refer to: Exterior Mirror (501-09 Rear View Mirrors, Removal and Installation).

Installation

1. To install, reverse the removal procedure.

Air Conditioning (A/C) Compressor TD4 2.2L Diesel

Removal

CAUTION: Make sure that the specified amount of refrigerant oil is added.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

3. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - TD4 2.2L Diesel (412-00 Climate Control System - General Information, General Procedures).

4. Refer to: Engine Undershield (501-02 Front End Body Panels, Removal and Installation).

5. Refer to: Accessory Drive Belt (303-05A Accessory Drive - TD4 2.2L Diesel, Removal and Installation).

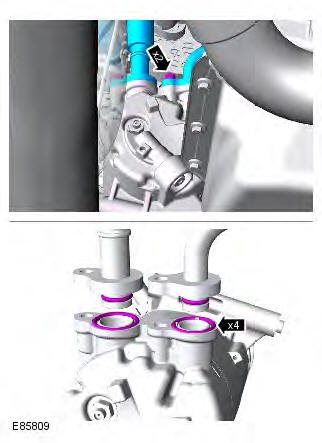

6. CAUTIONS: Make sure that all openings are sealed. Use new blanking caps.

Lubricate the new seals with clean refrigerant oil.

NOTE: Install new O-ring seals.

Torque: 24 Nm

Range Rover Evoque. Climate Control

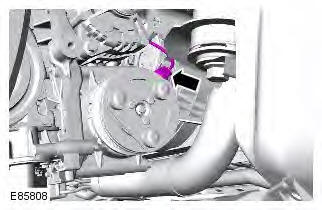

7.

Range Rover Evoque. Climate Control

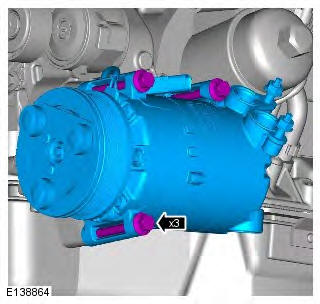

8. Torque: 110 Nm

Range Rover Evoque. Climate Control

9. Torque: 25 Nm

Range Rover Evoque. Climate Control

Installation

1. CAUTION: Make sure that the specified amount of refrigerant oil is added. To install, reverse the removal procedure.
