Range Rover Evoque: Control Components - Component Location

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Climate Control System / Climate Control / Control Components - Component Location

Component Location

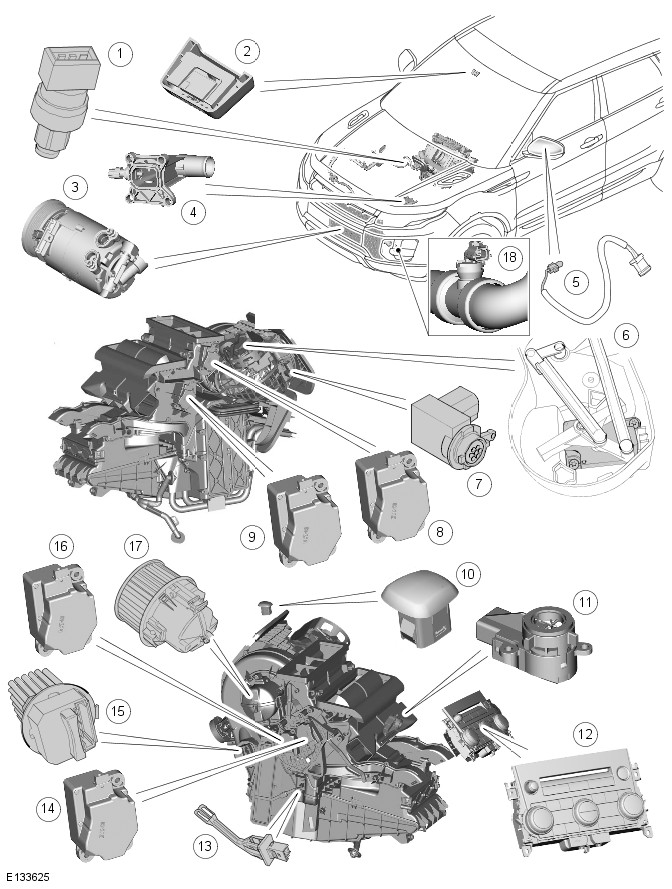

COMPONENT LOCATION (GTDI)

  1. Refrigerant pressure sensor
  2. Cabin humidity sensor (if fitted)
  3. A/C (air conditioning) compressor
  4. ECT (engine coolant temperature) sensor
  5. Ambient air temperature sensor
  6. Air intake stepper motor
  7. Pollution sensor
  8. Windshield distribution (defrost) stepper motor
  9. RH (right-hand) temperature blend stepper motor
  10. Sunload sensor
  11. Cabin temperature sensor
  12. ATC (automatic temperature control) module
  13. Evaporator temperature sensor
  14. LH (left-hand) temperature blend stepper motor
  15. Blower motor control module
  16. Face/feet distribution stepper motor
  17. Blower motor

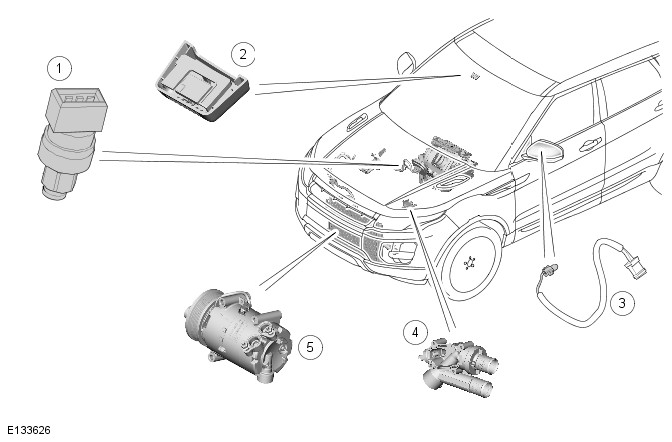

COMPONENT LOCATION (DW12)

  1. Refrigerant pressure sensor
  2. Cabin humidity sensor (if fitted)
  3. A/C compressor
  4. ECT sensor
  5. Ambient air temperature sensor

Control Components AWD - Overview

OVERVIEW

The climate control system incorporates the heating, ventilation and A/C (air conditioning) systems. There are 2 main types of climate control system available:

The climate control functions for both systems are controlled by the ATC (automatic temperature control) module. The ATC module is mounted in the center console and contains both the system electronic software and user controls.

The ATC module works in conjunction with a number of other vehicle control modules, including the ECM (engine control module), which controls a number of climate control sub-systems on receipt of requests from the ATC module.

The dual zone climate control system features automatic control of air temperature, air distribution and blower motor speed. The ATC module is also able to control individual temperature requests for both the driver and passenger side of the cabin.

NOTE: The ATC module can only maintain a maximum temperature difference between the 2 sides of the cabin of up to approximately 3
