Range Rover Evoque: Electric Booster Heater - Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Vehicles with automatic transmission

2. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

Vehicles with manual transmission

3. Refer to: Gearshift Lever (308-06 Manual Transmission/Transaxle External Controls, Removal and Installation).

All vehicles

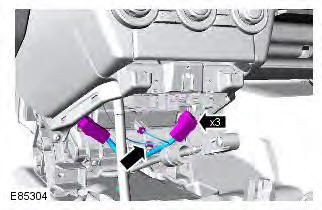

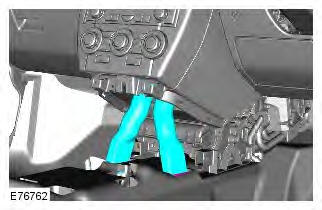

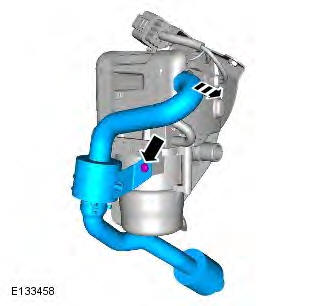

4.

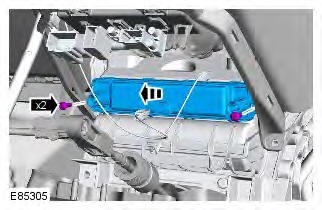

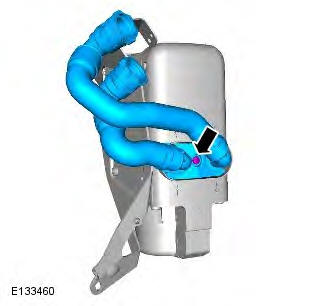

5.

6. Torque: 2 Nm

Installation

1. To install, reverse the removal procedure.

Fuel Fired Booster Heater GTDi 2.0L Petrol

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications)

2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

3. Refer to: Cooling System Partial Draining, Filling and Bleeding (303-03B Engine Cooling - GTDi 2.0L Petrol, General Procedures).

4. Remove the RH fender splash shield.

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

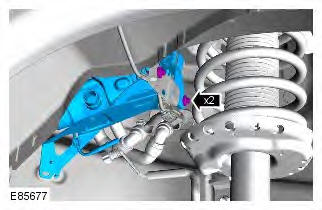

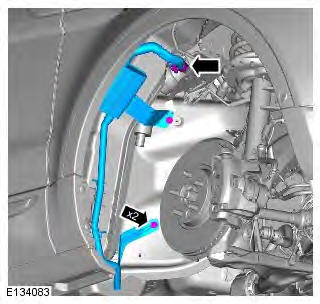

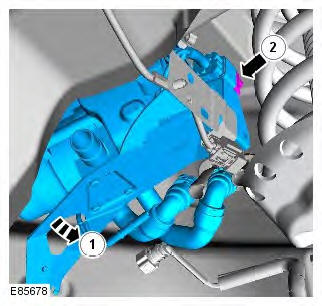

5. Torque: 10 Nm

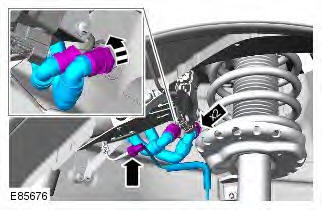

6. CAUTIONS: Be prepared to collect escaping fluids.

Make sure that all openings are sealed. Use new blanking caps.

• Position a container to collect spillage.
• Disconnect the 2 coolant hoses.
• Disconnect the fuel line.

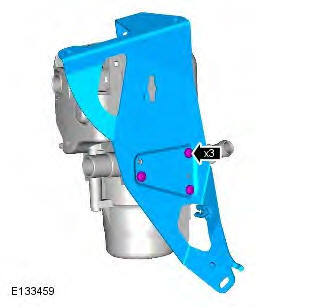

7. Torque: 10 Nm

8.

Installation

1. To install, reverse the removal procedure.

Fuel Fired Booster Heater Coolant Pump GTDi 2.0L Petrol

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Secondary Bulkhead Center Panel - GTDi 2.0L Petrol (501-02 Front End Body Panels, Removal and Installation).

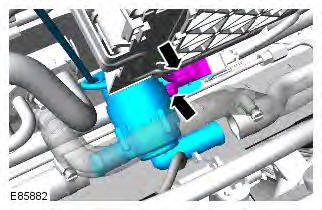

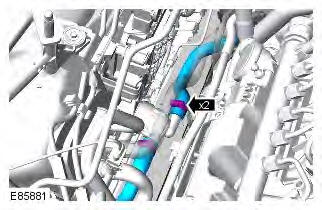

3. CAUTION: Be prepared to collect escaping coolant.

Use new blanking caps. Clamp the hoses to minimize coolant loss.

4. Torque: 8 Nm

Installation

1. To install, reverse the removal procedure.

2. Check and top-up the coolant if required.

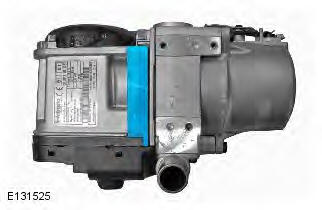

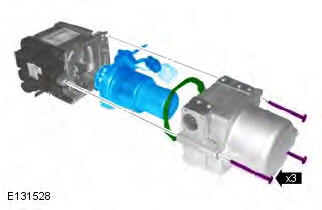

Fuel Fired Booster Heater Glow Plug And Burner Assembly GTDi 2.0L Petrol

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

3. Refer to: Fuel Fired Booster Heater - GTDi 2.0L Petrol (412-02 Auxiliary Climate Control, Removal and Installation).

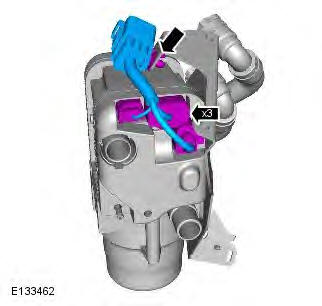

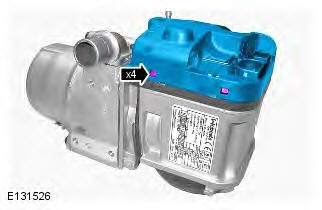

4. Torque: 10 Nm

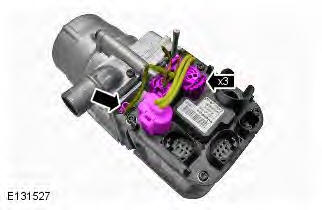

5.

6.

7. Torque: 7.5 Nm

8. Torque: 10 Nm

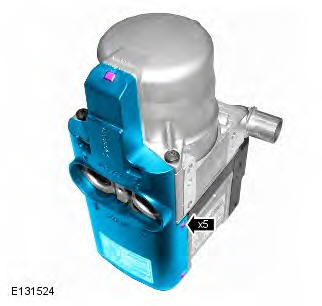

9.

10.

11.

12.

13. Torque: 7 Nm

Installation

1. To install, reverse the removal procedure.

Fuel Fired Booster Heater TD4 2.2L Diesel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

3. Refer to: Cooling System Partial Draining, Filling and Bleeding (303-03A Engine Cooling - TD4 2.2L Diesel, General Procedures).

4. Remove the RH fender splash shield.

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

5. Torque: 10 Nm

6. CAUTIONS: Be prepared to collect escaping fluids.

Make sure that all openings are sealed. Use new blanking caps.

• Position a container to collect spillage.
• Disconnect the 2 coolant hoses.
• Disconnect the fuel line.

7. Torque: 10 Nm

8.

Installation

1. To install, reverse the removal procedure.

Fuel Fired Booster Heater Fuel Pump

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

3. WARNING: Be prepared to collect escaping fuel.

Use new blanking caps.

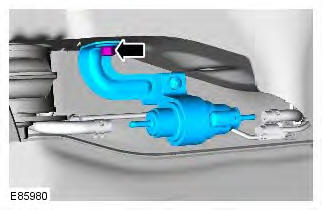

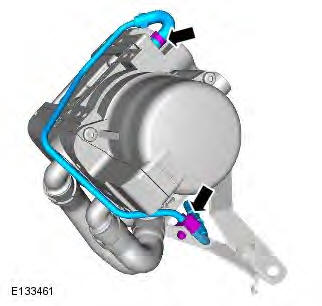

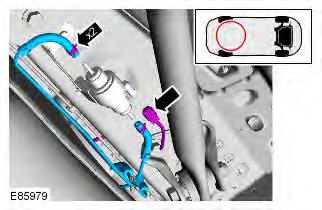

4. Torque: 10 Nm

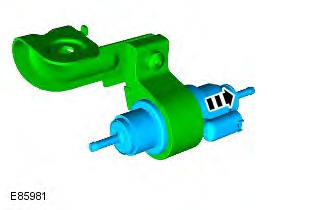

5. NOTE: Do not disassemble further if the component is removed for access only.

Installation

1. To install, reverse the removal procedure.

Fuel Fired Booster Heater Coolant Pump TD4 2.2L Diesel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Secondary Bulkhead Center Panel - TD4 2.2L Diesel (501-02 Front End Body Panels, Removal and Installation).

3. CAUTION: Be prepared to collect escaping coolant.

Use new blanking caps. Clamp the hoses to minimize coolant loss.

4. Torque: 8 Nm

Installation

1. To install, reverse the removal procedure.

2. Check and top-up the coolant if required.

Fuel Fired Booster Heater Glow Plug And Burner Assembly TD4 2.2L Diesel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

3. Refer to: Fuel Fired Booster Heater - TD4 2.2L Diesel (412-02 Auxiliary Climate Control, Removal and Installation).

4. Torque: 10 Nm

5.

6.

7. Torque: 7.5 Nm

8. Torque: 10 Nm

9.

10.

11.

12.

13. Torque: 7 Nm

Installation

1. To install, reverse the removal procedure.

Fuel Fired Booster Heater Receiver Unit

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Parking Aid Module (413-13 Parking Aid, Removal and Installation).

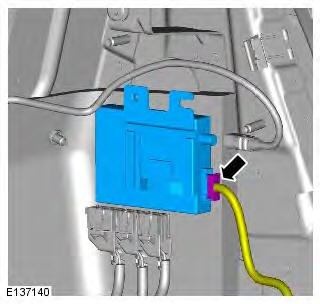

2.

Installation

1. To install, reverse the removal procedure.
