Range Rover Evoque: Front Seat Backrest Cover Vehicles With: Sports Seats

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Body and Paint / Seating / Front Seat Backrest Cover Vehicles With: Sports Seats

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

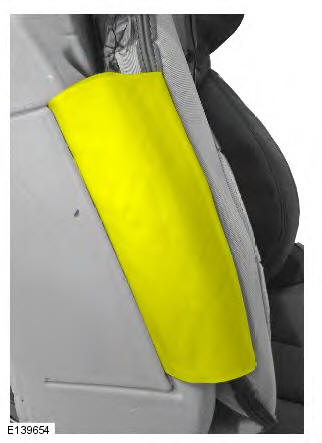

1. Prior to carrying out the step by step procedure below, Steps 2 and 3 must be followed for knowledge on how to correctly install and care for the seat cover.

2.

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

3.

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

4. If required, follow the steps below to carry out the removal and installation procedure.

5. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

6. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

7. Refer to: Side Air Bag Module - Vehicles With: Sports Seats (501-20B Supplemental Restraint System, Removal and Installation).

8.

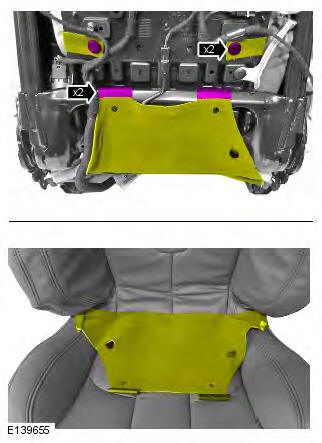

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

9.

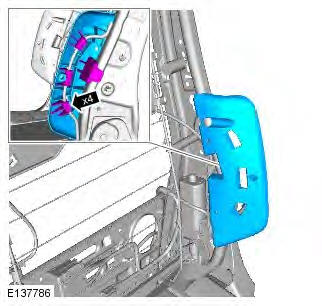

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

Vehicles with heated front seats

10.

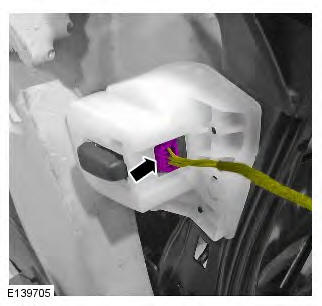

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

All vehicles

11.

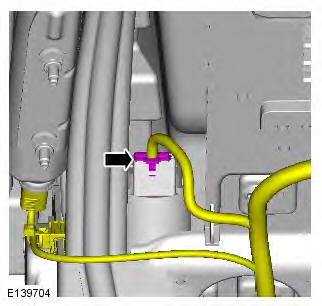

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

12. CAUTION: Take extra care not to damage the component.

NOTE: Do not disassemble further if the component is removed for access only.

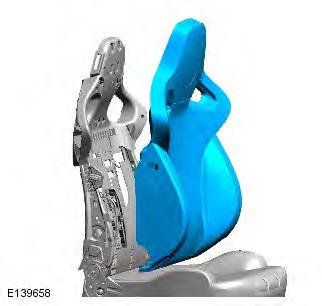

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

13.

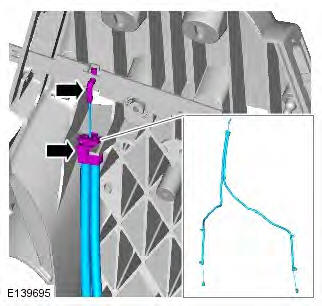

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

14. WARNING: Wear safety goggles and protective gloves.

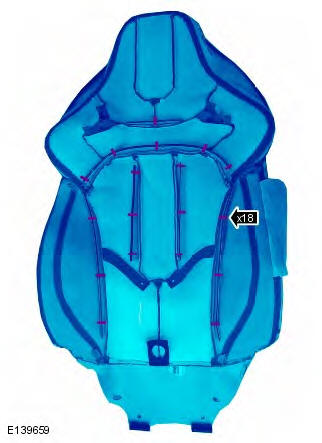

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

Installation

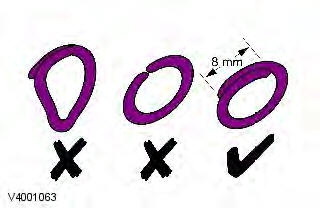

1. NOTES:

Make sure that new hog rings are installed.

Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

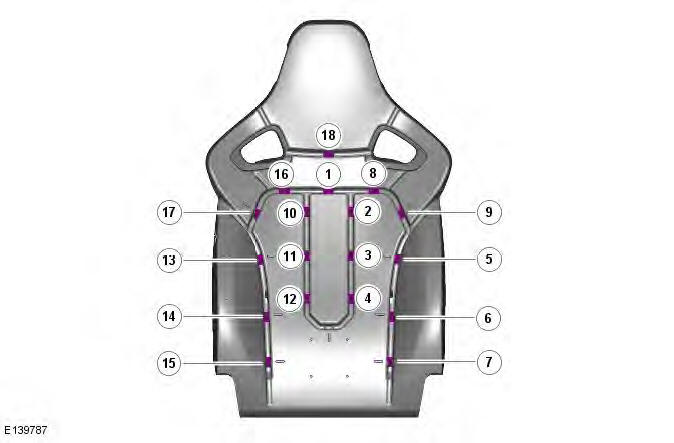

2. NOTE: Make sure that the hogrings are installed in the sequence shown.

Range Rover Evoque. Front Seat Backrest Cover Vehicles With: Sports Seats

3. To install, reverse the removal procedure.

Front Seat Backrest Cushion Vehicles With: Sports Seats

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Front Seat Backrest Cover - Vehicles With: Sports Seats (501-10 Seating, Removal and Installation).

Vehicles with heated front seats

4.

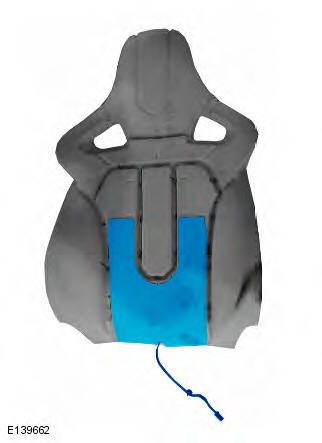

Range Rover Evoque. Front Seat Backrest Cushion Vehicles With: Sports Seats

Installation

1. To install, reverse the removal procedure.

Front Seat Backrest Heater Mat Vehicles With: Sports Seats

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Front Seat Backrest Cover - Vehicles With: Sports Seats (501-10 Seating, Removal and Installation).

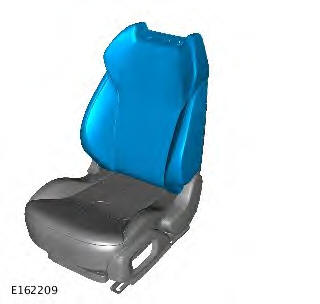

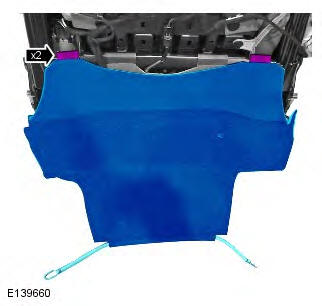

4.

Range Rover Evoque. Front Seat Backrest Heater Mat Vehicles With: Sports Seats

Installation

1. To install, reverse the removal procedure.

Front Seat Recliner Motor Vehicles With: Sports Seats

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Front Seat Backrest Cover - Vehicles With: Sports Seats (501-10 Seating, Removal and Installation).

3-door

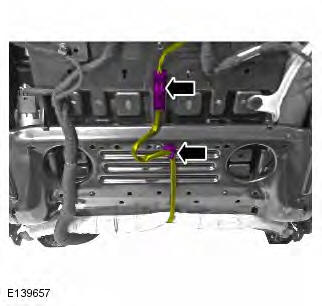

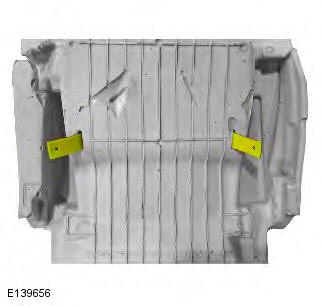

4. NOTE: Repeat the procedure for the other side.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

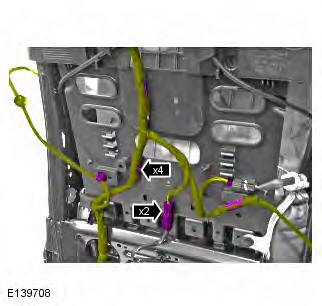

5.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

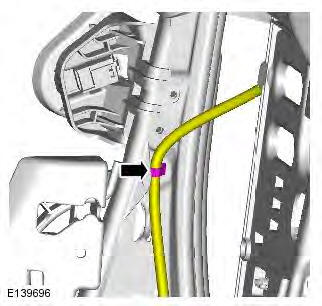

6.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

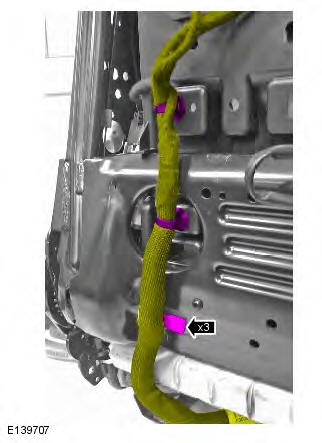

7.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

All vehicles

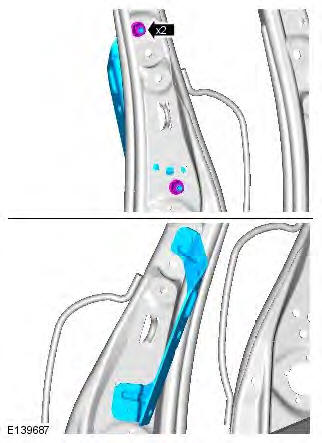

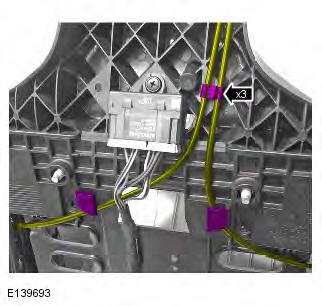

8. NOTE: Repeat the procedure for the other side.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

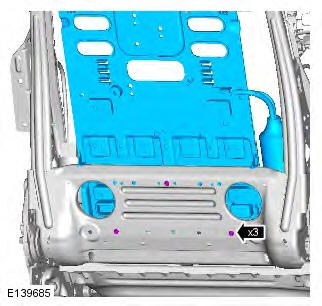

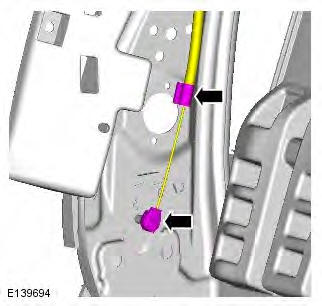

9.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

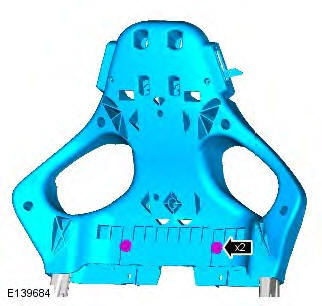

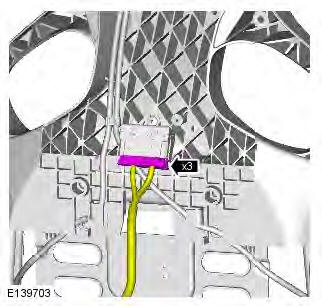

10.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

11.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

12.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

13.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

14.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

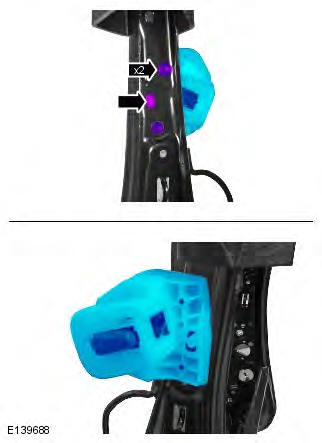

15. Torque: 7 Nm

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

16. Torque: 8 Nm

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

17.

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

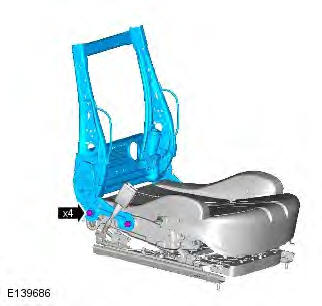

18. Torque: 28 Nm

Range Rover Evoque. Front Seat Recliner Motor Vehicles With: Sports Seats

Installation

1. To install, reverse the removal procedure.
