Range Rover Evoque: Front Seat Backrest Heater Mat

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Control Switch (501-10 Seating, Removal and Installation).

4. Refer to: Front Seat (501-10 Seating, Removal and Installation).

5. NOTE: If equipped.

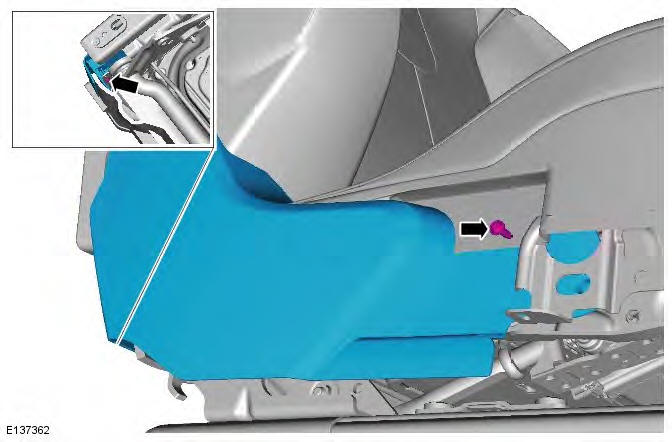

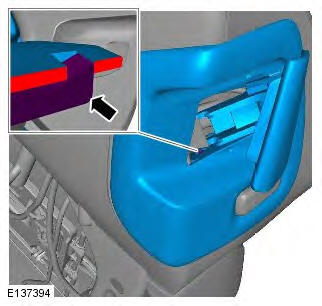

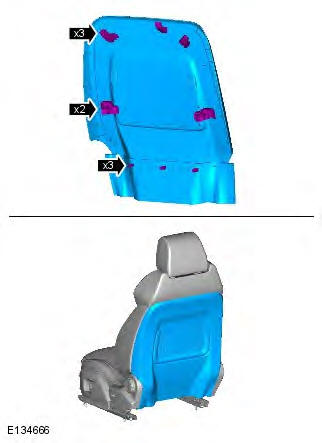

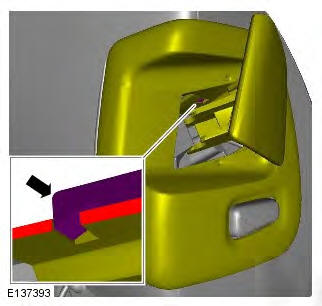

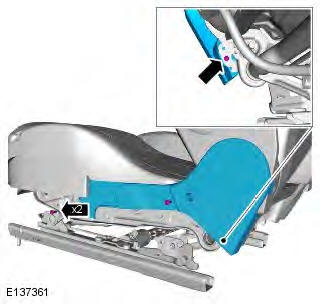

Range Rover Evoque. Front Seat Backrest Heater Mat

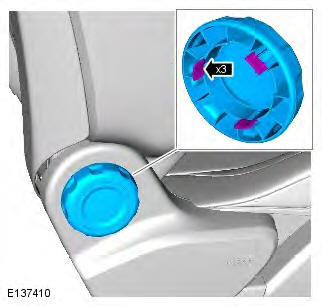

6.

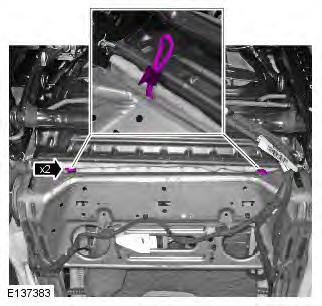

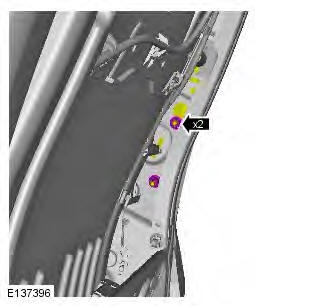

Range Rover Evoque. Front Seat Backrest Heater Mat

7.

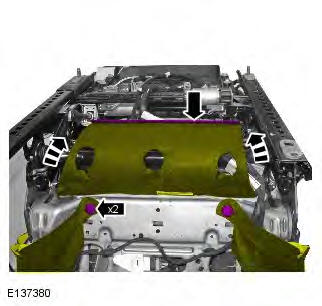

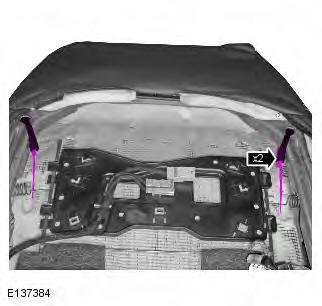

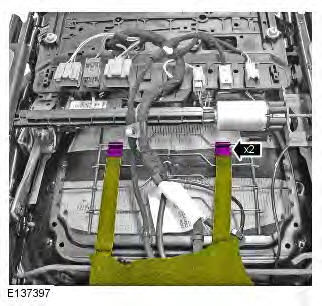

Range Rover Evoque. Front Seat Backrest Heater Mat

8.

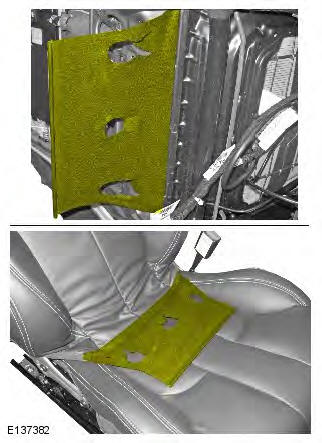

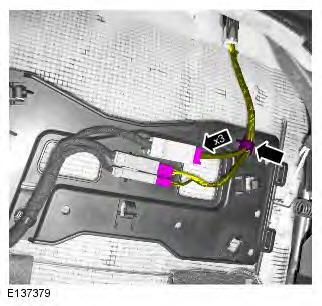

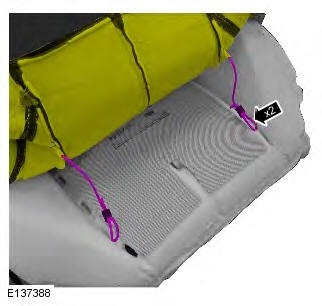

Range Rover Evoque. Front Seat Backrest Heater Mat

9.

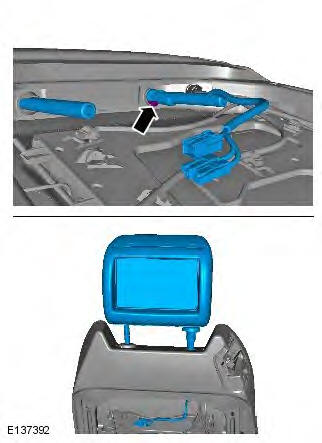

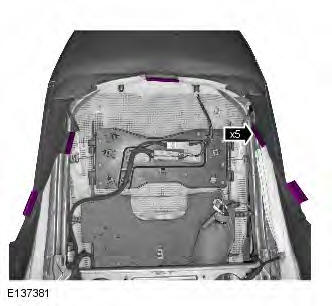

Range Rover Evoque. Front Seat Backrest Heater Mat

10.

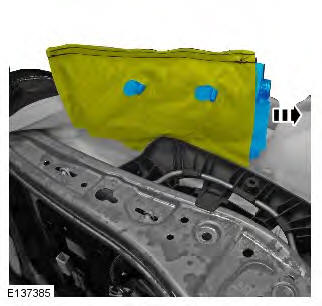

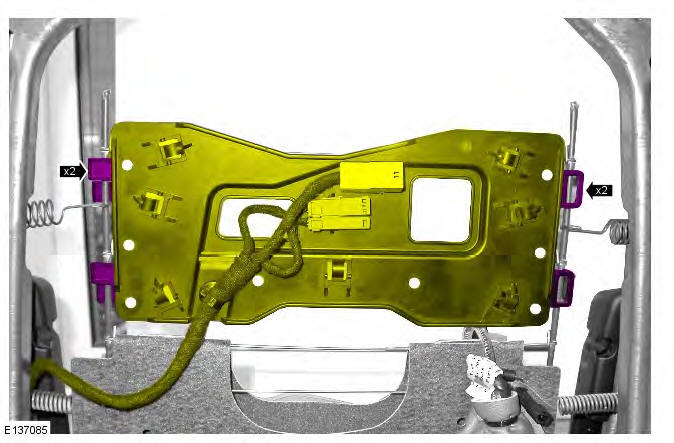

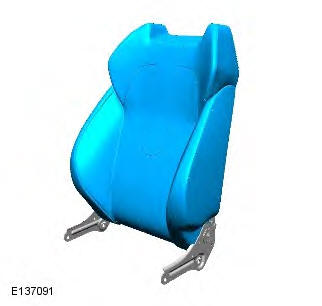

Range Rover Evoque. Front Seat Backrest Heater Mat

11.

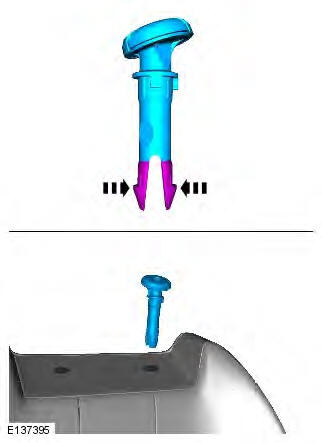

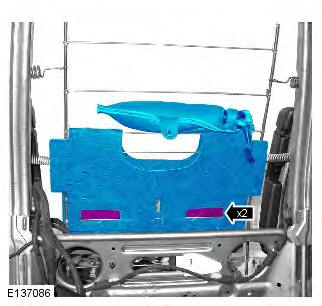

Range Rover Evoque. Front Seat Backrest Heater Mat

12.

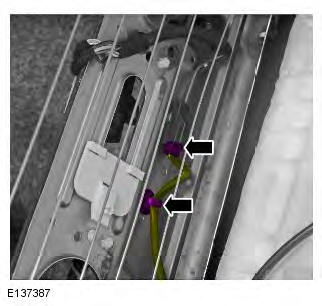

Range Rover Evoque. Front Seat Backrest Heater Mat

3-door

13.

Range Rover Evoque. Front Seat Backrest Heater Mat

14.

Range Rover Evoque. Front Seat Backrest Heater Mat

All vehicles

15.

Range Rover Evoque. Front Seat Backrest Heater Mat

16.

Range Rover Evoque. Front Seat Backrest Heater Mat

17.

Range Rover Evoque. Front Seat Backrest Heater Mat

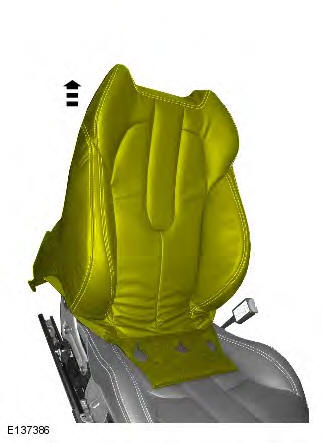

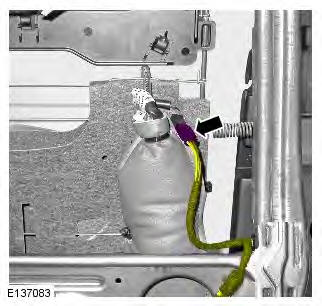

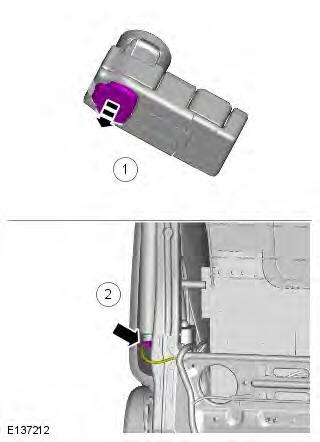

18. WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

Range Rover Evoque. Front Seat Backrest Heater Mat

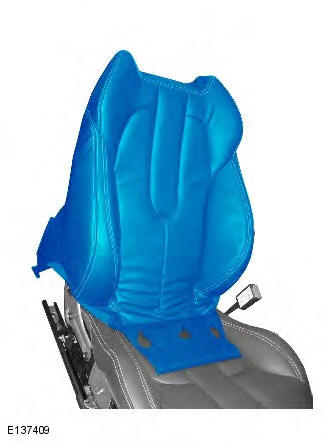

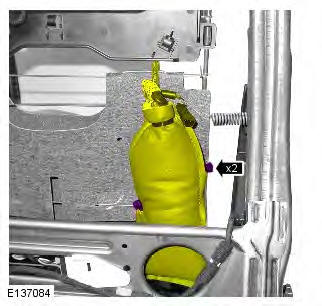

19. WARNING: Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.

Torque: 7 Nm

Range Rover Evoque. Front Seat Backrest Heater Mat

20.

Range Rover Evoque. Front Seat Backrest Heater Mat

21.

Range Rover Evoque. Front Seat Backrest Heater Mat

22.

Range Rover Evoque. Front Seat Backrest Heater Mat

23.

Range Rover Evoque. Front Seat Backrest Heater Mat

24.

Range Rover Evoque. Front Seat Backrest Heater Mat

25.

Range Rover Evoque. Front Seat Backrest Heater Mat

26.

Range Rover Evoque. Front Seat Backrest Heater Mat

27.

Range Rover Evoque. Front Seat Backrest Heater Mat

28.

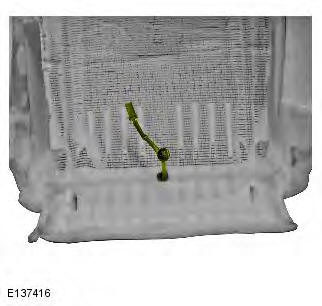

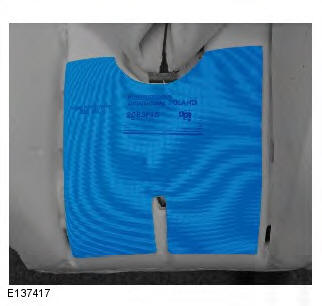

Range Rover Evoque. Front Seat Backrest Heater Mat

Installation

1. To install, reverse the removal procedure.

Rear Seat Cushion

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

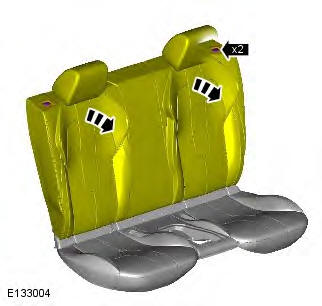

1.

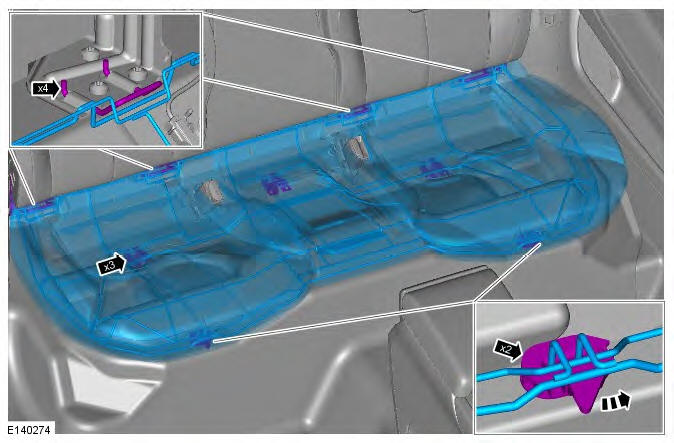

Range Rover Evoque. Rear Seat Cushion

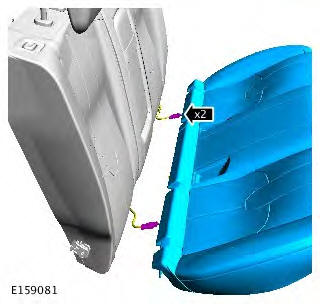

2.

Range Rover Evoque. Rear Seat Cushion

Vehicles with heated rear seat

3.

Range Rover Evoque. Rear Seat Cushion

Installation

1. To install, reverse the removal procedure.

Lumbar Assembly

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).

4.

Range Rover Evoque. Lumbar Assembly

5.

Range Rover Evoque. Lumbar Assembly

6.

Range Rover Evoque. Lumbar Assembly

7.

Range Rover Evoque. Lumbar Assembly

8.

Range Rover Evoque. Lumbar Assembly

Installation

1. To install, reverse the removal procedure.
