Range Rover Evoque: Front Seat Tilt Assembly

Removal

WARNINGS:

To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplemental restraint system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait one minute. Failure to follow this instruction may result in personal injury.

Never probe the electrical connectors of air bag modules or any other supplemental restraint system component.

Failure to follow this instruction may result in personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

3. Refer to: Front Seat Control Switch (501-10 Seating, Removal and Installation).

4. Refer to: Front Seat (501-10 Seating, Removal and Installation).

5. NOTE: If equipped.

Range Rover Evoque. Front Seat Tilt Assembly

6.

Range Rover Evoque. Front Seat Tilt Assembly

7.

Range Rover Evoque. Front Seat Tilt Assembly

8.

Range Rover Evoque. Front Seat Tilt Assembly

9.

Range Rover Evoque. Front Seat Tilt Assembly

10.

Range Rover Evoque. Front Seat Tilt Assembly

11.

Range Rover Evoque. Front Seat Tilt Assembly

12.

Range Rover Evoque. Front Seat Tilt Assembly

13. NOTE: Using suitable tools remove the front seat release lever.

Range Rover Evoque. Front Seat Tilt Assembly

14.

Range Rover Evoque. Front Seat Tilt Assembly

15.

Range Rover Evoque. Front Seat Tilt Assembly

16.

Range Rover Evoque. Front Seat Tilt Assembly

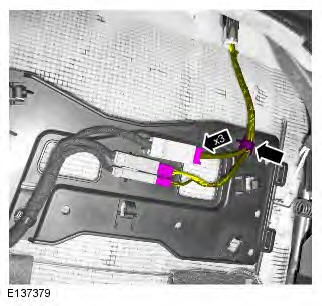

17. WARNING: The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

Range Rover Evoque. Front Seat Tilt Assembly

18. WARNING: Make sure that the air bag is correctly installed in to the fabric chute. Failure to follow this instruction may result in incorrect operation of the air bag.

Torque: 7 Nm

Range Rover Evoque. Front Seat Tilt Assembly

19.

Range Rover Evoque. Front Seat Tilt Assembly

20.

Range Rover Evoque. Front Seat Tilt Assembly

21.

Range Rover Evoque. Front Seat Tilt Assembly

22.

Range Rover Evoque. Front Seat Tilt Assembly

23.

Range Rover Evoque. Front Seat Tilt Assembly

24.

Range Rover Evoque. Front Seat Tilt Assembly

25. NOTE: Repeat the procedure for the other side.

Range Rover Evoque. Front Seat Tilt Assembly

26.

Range Rover Evoque. Front Seat Tilt Assembly

Installation

1. To install, reverse the removal procedure.

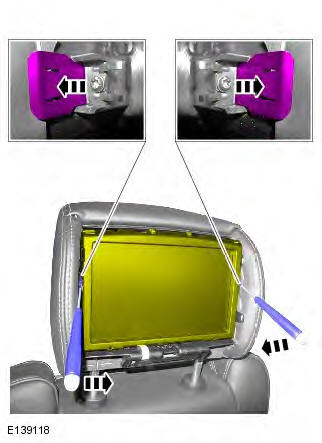

Front Seat Head Restraint

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Front seat shown removed for clarity.

Some variation in the illustrations may occur, but the essential information is always correct.

1.

Range Rover Evoque. Front Seat Head Restraint

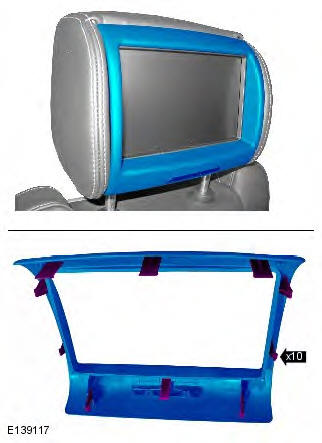

2. CAUTION: Make sure that the trim panel is correctly installed.

NOTE: Make sure that the clips are installed in the correct orientation.

Range Rover Evoque. Front Seat Head Restraint

3.

Range Rover Evoque. Front Seat Head Restraint

4.

Range Rover Evoque. Front Seat Head Restraint

5. NOTE: Do not disassemble further if the component is removed for access only.

Range Rover Evoque. Front Seat Head Restraint

6.

Range Rover Evoque. Front Seat Head Restraint

7.

Range Rover Evoque. Front Seat Head Restraint

8.

Range Rover Evoque. Front Seat Head Restraint

Installation

1. To install, reverse the removal procedure.
