Range Rover Evoque: Fuel Filter

Special Tool(s)

310-123
Locking Ring, Fuel Tank

Removal

WARNINGS:

Wait for a minimum of 1 minute after the engine has stopped before carrying out any repair to the fuel injection system.

Avoid flames, sparks or lighted substances.

CAUTION: Be prepared to collect escaping fuel.

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Fuel Tank (310-01B Fuel Tank and Lines - GTDi 2.0L Petrol, Removal and Installation).

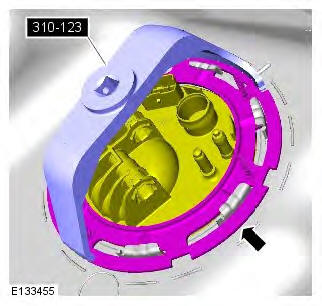

4.

Range Rover Evoque. Fuel Tank and Lines - GTDi 2.0L Petrol

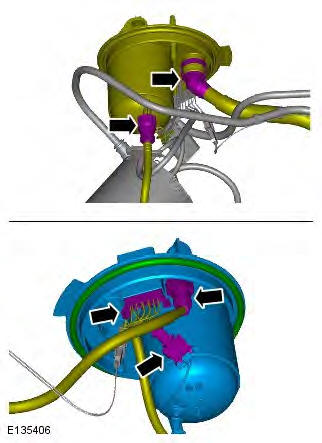

5. CAUTIONS: Extreme cleanliness must be exercised when handling these components.

Make sure that the seal is correctly positioned.

Failure to follow this instruction may result in damage to the vehicle.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Range Rover Evoque. Fuel Tank and Lines - GTDi 2.0L Petrol

6.

Range Rover Evoque. Fuel Tank and Lines - GTDi 2.0L Petrol

Installation

1. To install, reverse the removal procedure.

Fuel Level Sender

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Fuel Pump and Sender Unit (310-01B Fuel Tank and Lines - GTDi 2.0L Petrol, Removal and Installation).

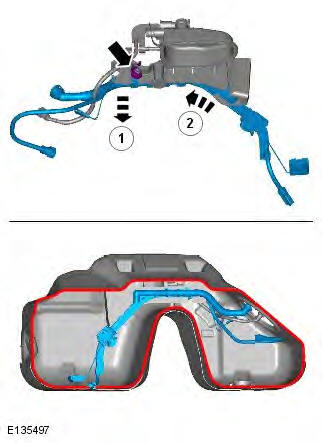

4.

Range Rover Evoque. Fuel Tank and Lines - GTDi 2.0L Petrol

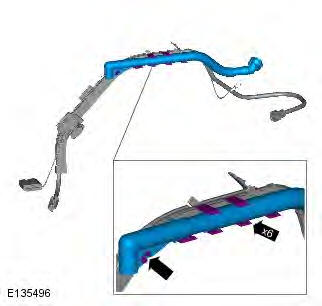

5. NOTE: Do not disassemble further if the component is removed for access only.

Range Rover Evoque. Fuel Tank and Lines - GTDi 2.0L Petrol

Installation

1. To install, reverse the removal procedure.

Fuel Pump and Sender Unit

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Fuel Filter (310-01B Fuel Tank and Lines - GTDi 2.0L Petrol, Removal and Installation).

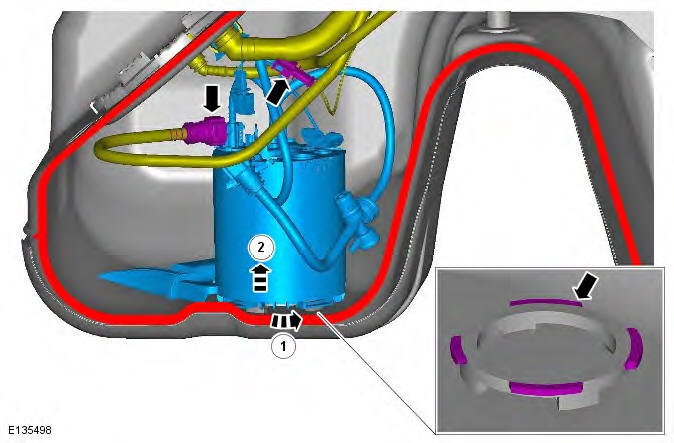

4.

Range Rover Evoque. Fuel Tank and Lines - GTDi 2.0L Petrol

Installation

1. To install, reverse the removal procedure.
