Range Rover Evoque: Rear Seat Backrest Cover 5-Door

Removal

NOTES:

This procedure covers the removal and installation of both rear seat backrests and the LH rear seat backrest cover.

The RH rear seat backrest cover is similar. All notes and cautions must be followed strictly to avoid any chance of NVH or failure of the rear seat backrests.

Some variation in the illustrations may occur, but the essential information is always correct.

1. Prior to carrying out the step by step procedure below, Steps 2 and 3 must be followed for knowledge on how to correctly install and care for the seat cover.

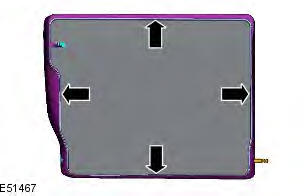

2.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

3.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

4. If required, follow the steps below to carry 4. out the removal and installation procedure.

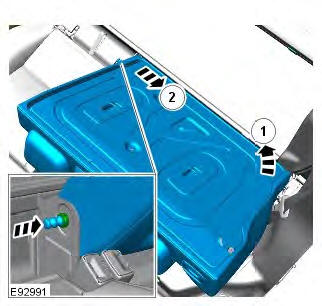

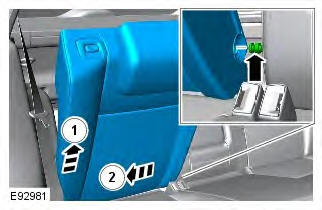

5.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

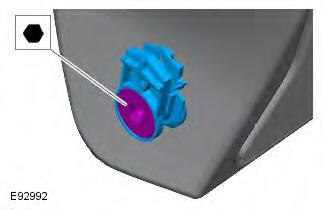

6.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

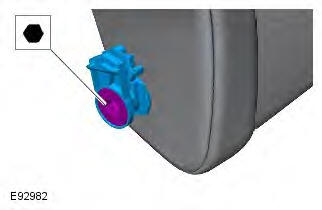

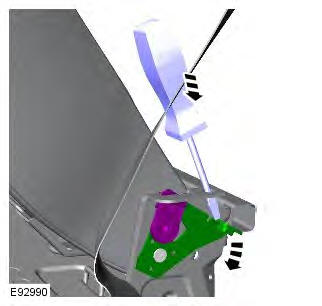

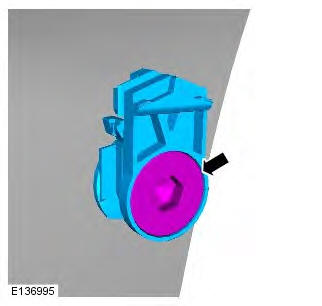

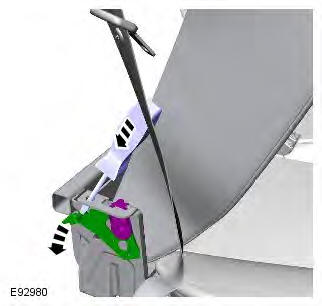

7. Using a screwdriver, release the outer pivot pin bushing locking arm.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

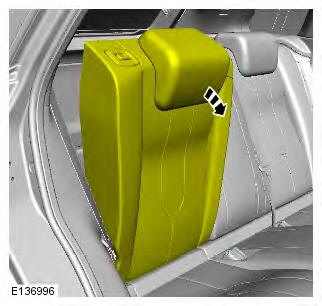

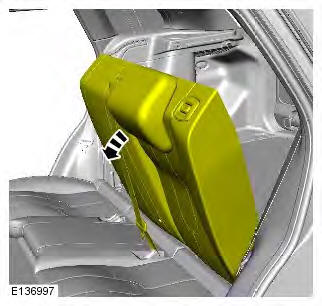

8. CAUTION: The left-hand rear seat backrest inner pivot pin has radial grooves. When removing the RH backrest from the LH backrest take care not to damage the RH backrest inner pivot bushing.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

9. Remove and discard the RH rear seat backrest outer pivot pin bushing.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

10.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

11.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

12.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

13. CAUTION: Make sure that a webbing retainer is installed at least 200 mm towards the rear center safety belt retractor from the webbing stop.

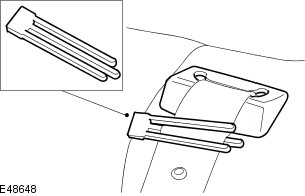

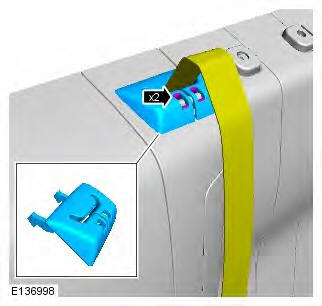

Install the safety belt webbing retainer.

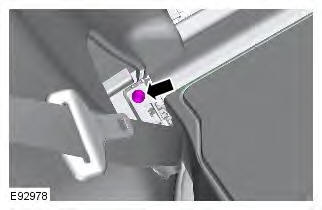

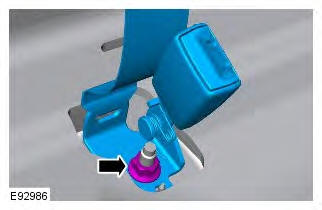

14. Remove the rear center safety belt lower anchor nut.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

15.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

16.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

17. Using a screwdriver, release the outer pivot pin bushing locking arm.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

18. CAUTION: The left-hand rear seat backrest inner pivot pin has radial grooves. Take care not to damage the center hinge pivot bushing.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

19. Remove and discard the LH rear seat backrest outer pivot pin bushing.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

20.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

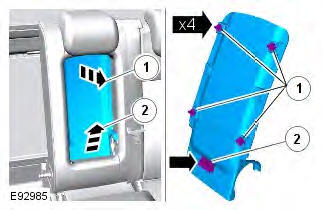

21. Remove the center safety belt trim panel.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

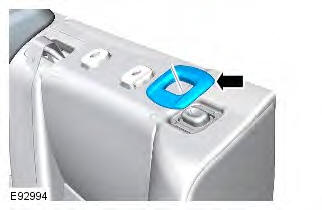

22. Remove the rear seat backrest release button trim panel.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

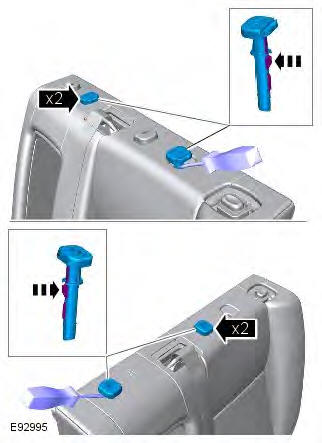

23. CAUTION: Make sure that the head restraint guide tube locking tang is fully depressed before removal.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

24. Release the rear seat backrest cover from the rear seat backrest frame.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

25. Release the rear seat backrest cover and pad assembly from the rear seat backrest release button.

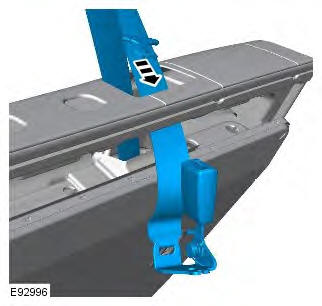

26. Release the rear center safety belt and lower anchor from the backrest cover.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

27. Remove the rear seat backrest cover and pad assembly.

28.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

Installation

1. NOTES:

If a replacement rear seat backrest cover is to be installed, cut out holes for the head restraint guide tubes and center safety belt trim panel. Use the existing rear seat backrest cover as a template. This also applies to the backrest squab foam.

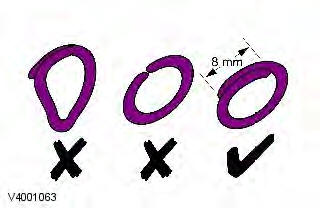

Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.

Make sure that new hog rings are installed.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

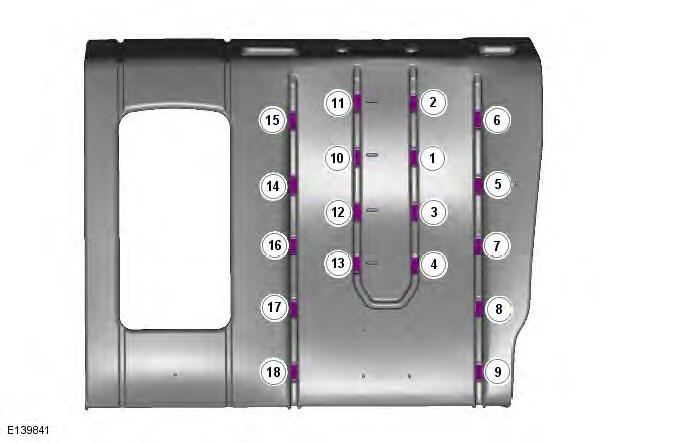

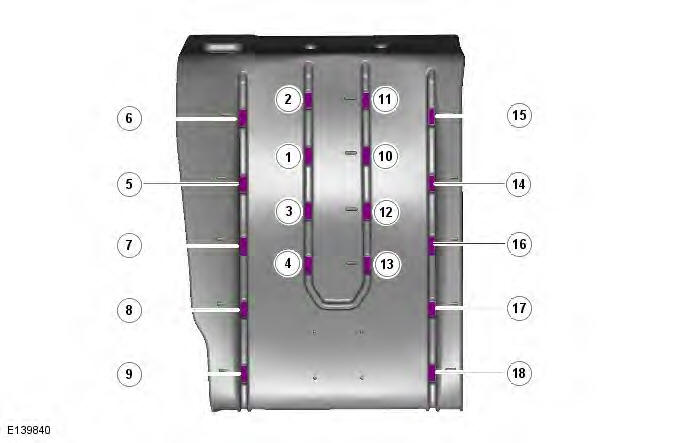

2. NOTE: Make sure that the hogrings are installed in the sequence shown.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

3. NOTE: Make sure that the hogrings are installed in the sequence shown.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

4. Guide the rear center safety belt and lower anchor through the backrest cover.

5. Install the rear seat backrest cover and pad assembly.

6. Secure the rear seat backrest cover and pad assembly around the rear seat backrest release button.

7. Secure the rear seat backrest cover to the rear seat backrest frame.

8. Install new head restraint guide tubes.

9. Install the rear seat backrest release button trim panel.

10. Install the center safety belt trim panel.

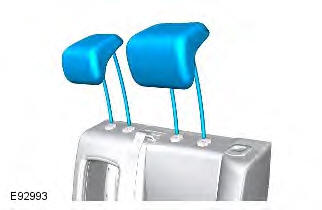

11. Install the head restraints.

12. Install a new LH rear seat backrest outer pivot pin bushing.

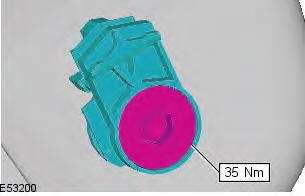

Torque: 35 Nm

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

13.

CAUTIONS:

The center hinge pivot bushing must be replaced if excessive damage or wear is present.

The left-hand rear seat backrest inner pivot pin has radial grooves. Take care not to damage the center hinge pivot bushing.

14. Install a new bolt to the outer pivot pin bushing locking arm.

Torque: 23 Nm

15. WARNING: Make sure that the safety belt anchor is correctly installed.

Secure the rear center safety belt lower anchor.

Torque: 40 Nm

16. CAUTION: Check for correct operation of the rear center safety belt retractor.

Remove the safety belt webbing retainer.

17.

18. NOTE: Make sure that the armrest pivot bushing spring clips locate in the armrest pivot bushing grooves.

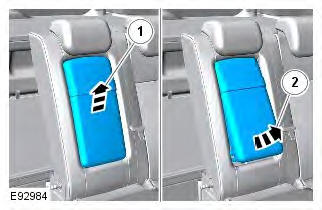

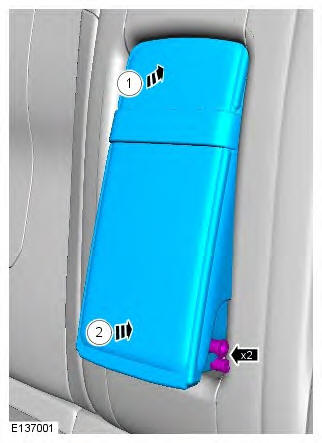

Install the armrest.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

19. Install a new RH rear seat backrest outer pivot pin bushing.

Torque: 35 Nm

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

20. CAUTION: If the existing right-hand rear seat backrest is to be installed, the condition of the inner pivot bushing must be checked and a service pad installed. If excessive damage is present to the inner pivot bushing the right-hand rear seat backrest frame must be replaced.

NOTE: This step is not necessary if a new right-hand rear seat backrest is to be installed.

Install the service pad to the RH rear seat backrest inner pivot bushing.

Range Rover Evoque. Rear Seat Backrest Cover 5-Door

21. CAUTION: The left-hand rear seat backrest inner pivot pin has radial grooves. When installing the RH backrest, take care not to damage the inner pivot bushing.

22. Install a new bolt to the outer pivot pin bushing locking arm.
