Range Rover Evoque: Transfer Case Connecting Sleeve Seals GTDi 2.0L Petrol

Special Tool(s)

100-012
Slide Hammer

307-594
Installer, Seal

308-005
Remover, Axle oil seal

Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Power Transfer Unit - GTDi 2.0L Petrol (308-07B Transfer Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual Transmission AWD, Removal and Installation).

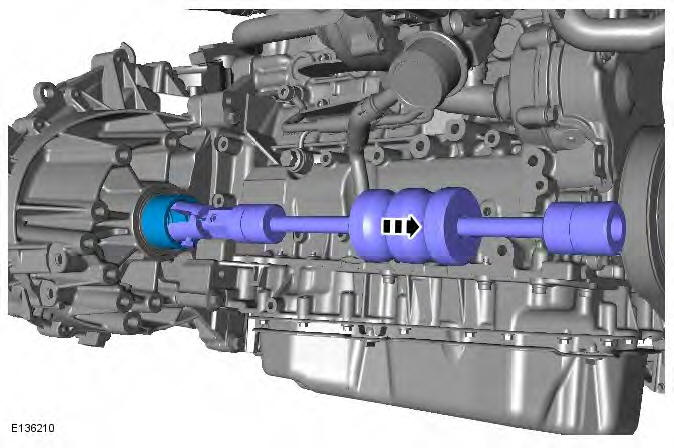

3.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

4. CAUTIONS: Make sure that the area around the component is clean and free of foreign material.

Take extra care not to damage the mating faces.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

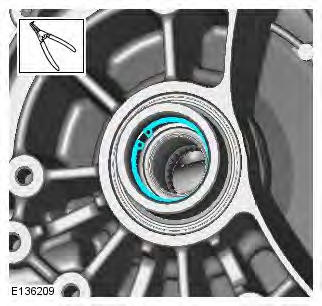

5.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

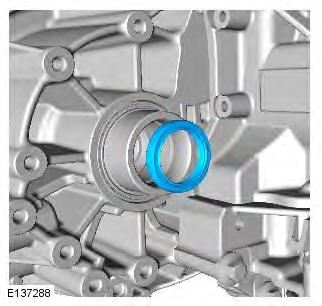

6. CAUTION: Take extra care not to damage the mating faces.

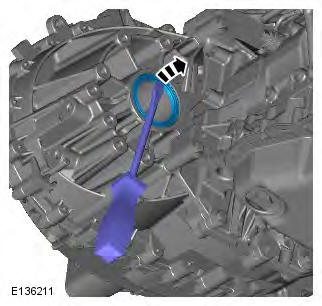

NOTE: Using a suitable tool, remove the oil seal.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

Installation

1.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

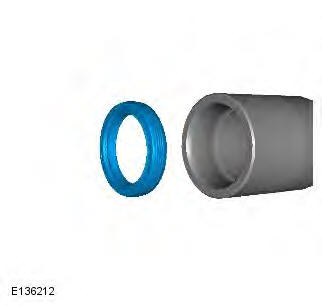

2. CAUTIONS: Take extra care not to damage the seal.

Make sure that the mating faces are clean and free of foreign material.

Only use the specified material to lubricate the seals.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

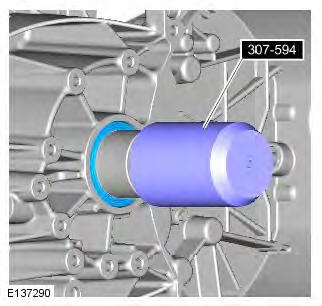

3. CAUTIONS: Take extra care not to damage the mating faces.

Make sure that the mating faces are clean and free of foreign material.

Take extra care not to damage the seal.

Only use the specified material to lubricate the seals.

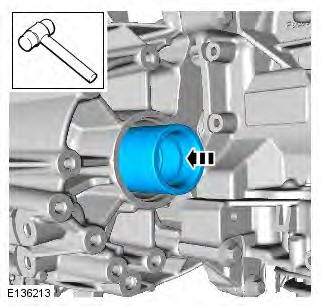

NOTE: Using a suitable tool, install the oil seal.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

4.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

5. Refer to: Power Transfer Unit - GTDi 2.0L Petrol (308-07B Transfer Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual Transmission AWD, Removal and Installation).
