Range Rover Evoque: Transfer Case Connecting Sleeve Seals TD4 2.2L Diesel, Vehicles With: M66 6-Speed Manual Transmission AWD

Special Tool(s)

100-012
Slide Hammer

303-1300

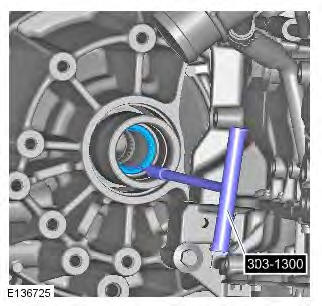

Remover, Crankshaft Seal

303-538
Remover/Installer, Crankshaft Oil Seal

307-594

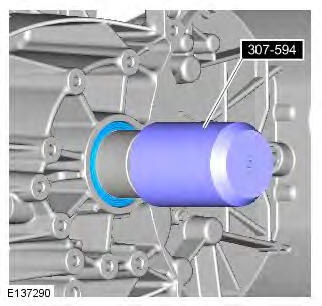

Installer, Seal

307-595

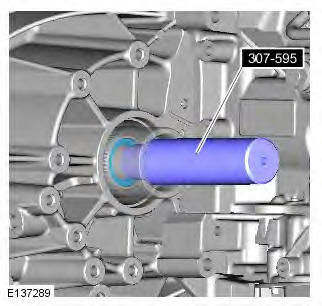

Installer, Intermediate Shaft Seal

308-615

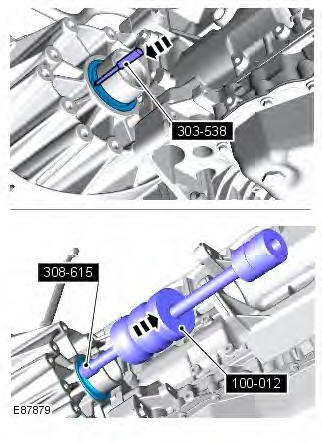

Remover, Seals

Removal

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

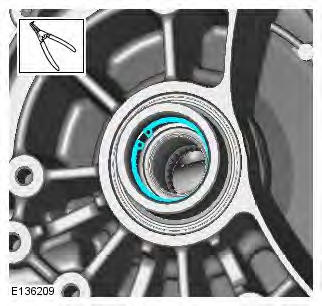

2. Refer to: Power Transfer Unit - TD4 2.2L Diesel (308-07B Transfer Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual Transmission AWD, Removal and Installation).

3.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

4. CAUTIONS: Make sure that the area around the component is clean and free of foreign material.

Take extra care not to damage the mating faces.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

5. CAUTIONS: Take extra care not to damage the mating faces.

Make sure that the area around the component is clean and free of foreign material.

NOTE: Some oil spillage is inevitable during this operation.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

Installation

1. CAUTION: Take extra care not to damage the seal.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

3. CAUTIONS: Take extra care not to damage the seal.

Make sure that the mating faces are clean and free of corrosion and foreign material.

Make sure that the area around the component is clean and free of foreign material.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

3.

Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD

4. Refer to: Power Transfer Unit - TD4 2.2L Diesel (308-07B Transfer Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual Transmission AWD, Removal and Installation).
