Range Rover Evoque: Transfer Case Seal
LH GTDi 2.0L Petrol
Special Tool(s)
100-012
Slide Hammer
205-873/1
Remover/Installer, Transfer Case Seal
205-873/2
Protector, Transfer Case Seal
205-873/3
Punch/Screws, Transfer Case Seal
Removal
NOTES:
Removal steps in this procedure may contain installation details.
Some variation in the illustrations may occur, but the essential information is
always correct.
1. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
2. Refer to: Power Transfer Unit - GTDi 2.0L Petrol (308-07B Transfer
Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66
6-Speed Manual Transmission AWD, Removal and Installation).

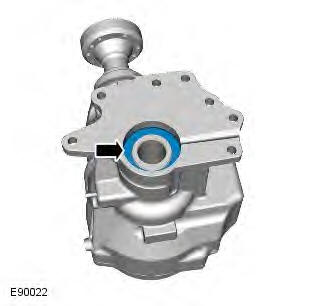

3. CAUTIONS:
Take extra care not to damage the seal.
Inspect the seal, replace if damaged
![Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD](images/books/3096/evoque_lh_gtdi_2_0l_petrol_4766.jpg)

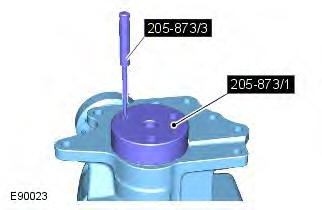

4. CAUTIONS:
Make sure that the area around the component is
clean and free of foreign material.
Take extra care not to damage the mating faces.
- Special Tool(s): 205-873/1
- Special Tool(s): 205-873/2
- Special Tool(s): 205-873/3
![Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD](images/books/3096/evoque_lh_gtdi_2_0l_petrol_4767.jpg)

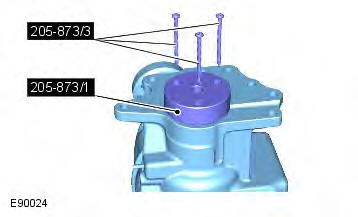

5.
- Special Tool(s): 205-873/1
- Special Tool(s): 205-873/2
- Special Tool(s): 205-873/3
![Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD](images/books/3096/evoque_lh_gtdi_2_0l_petrol_4768.jpg)

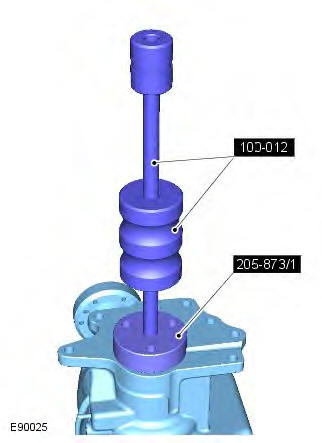

6.
- Special Tool(s): 205-873/1
- Special Tool(s): 205-873/2
- Special Tool(s): 205-873/3
- Special Tool(s): 100-012
![Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD](images/books/3096/evoque_lh_gtdi_2_0l_petrol_4769.jpg)
Installation

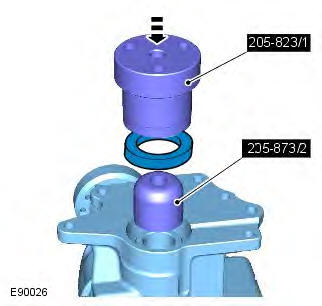

1. CAUTION: A soft faced hammer should be used to
avoid damaging the special tool and creating debris.
- Special Tool(s): 205-873/1
- Special Tool(s): 205-873/2
- Special Tool(s): 205-873/3
![Range Rover Evoque. Transfer Case - Vehicles With: AWF21 6-Speed Automatic
Transmission/M66 6-Speed Manual Transmission AWD](images/books/3096/evoque_lh_gtdi_2_0l_petrol_4770.jpg)
2. To install, reverse the removal procedure.
3. Refer to: Power Transfer Unit - GTDi 2.0L Petrol (308-07B Transfer
Case - Vehicles With: AWF21 6-Speed Automatic Transmission/M66
6-Speed Manual Transmission AWD, Removal and Installation).
4. Check and top-up the transfer case fluid level.
Refer to: Transfer Case Fluid Level Check (308-07B Transfer Case -
Vehicles With: AWF21 6-Speed Automatic Transmission/M66 6-Speed Manual
Transmission AWD, General Procedures).
