Range Rover Evoque: Transmission Fluid Pan GTDi 2.0L Petrol

Removal

CAUTION: Extreme cleanliness must be exercised when handling this component.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. Refer to: Transmission Fluid Drain and Refill (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, General Procedures).

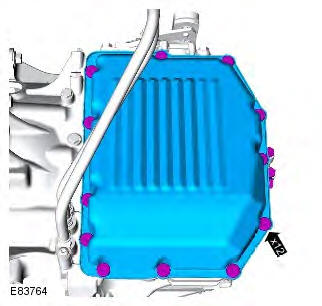

4.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

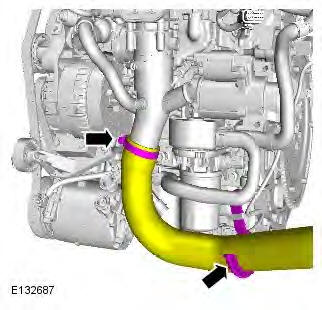

5. CAUTION: Be prepared to collect escaping oil.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

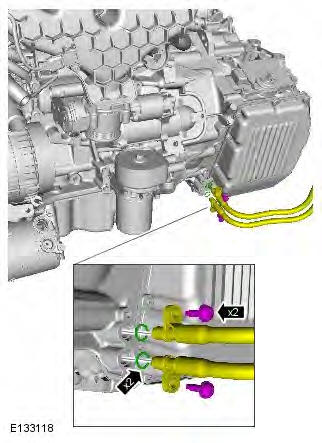

6. CAUTION: Be prepared to collect escaping oil.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

7. Carefully remove the sealant.

Installation

1. For sealant specification, refer to the specifications section.

Refer to: Specifications (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Specifications).

2. CAUTION: Make sure that the mating faces are clean and free of foreign material.

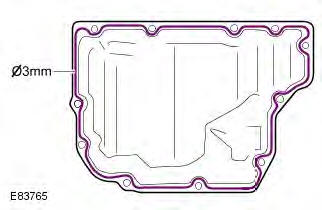

Apply a bead of sealant, 3 mm diameter, to the area indicated.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

3. Torque: 14 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

4. Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

5.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

6. Refer to: Engine Cover - GTDi 2.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).

7. Refer to: Transmission Fluid Drain and Refill (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, General Procedures).

Main Control Valve Body TD4 2.2L Diesel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Transmission Fluid Pan - TD4 2 2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

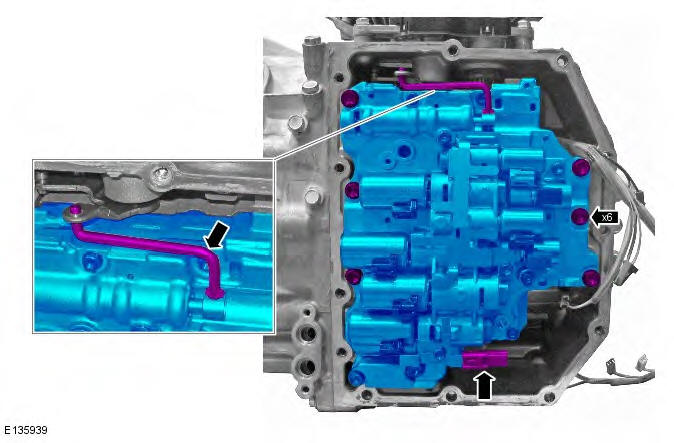

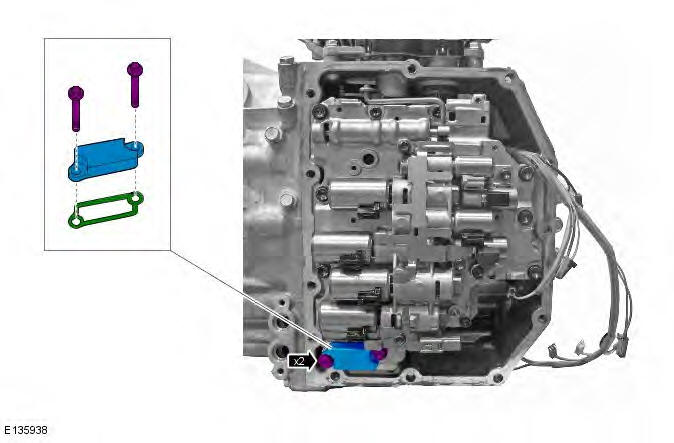

4. CAUTIONS: Take extra care not to damage the wiring harnesses.

Note the fitted position of the component prior to removal.

Torque: 10 Nm

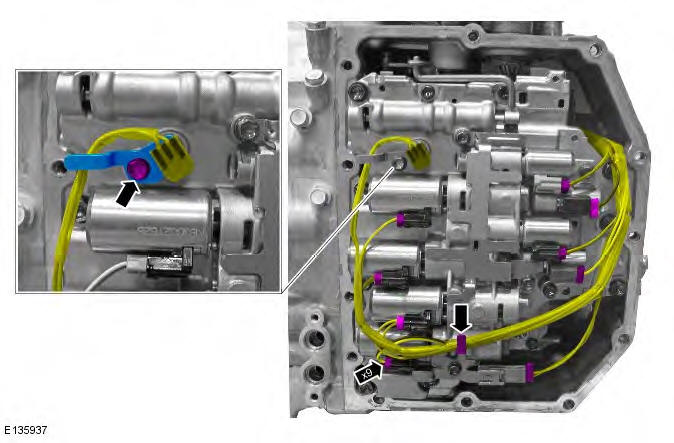

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

5.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

6.

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

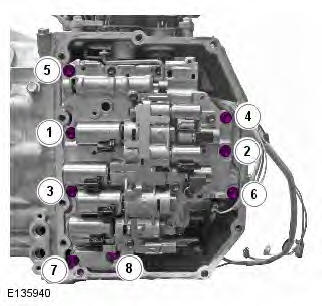

1. CAUTION: Tighten the bolts in the sequence shown.

Torque: 10 Nm

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

2. To install, reverse the removal procedure.

Halfshaft Seal LH

Special Tool(s)

303-1300
Remover, Crankshaft Seal

307-596
Installer, Halfshaft Seal

Removal

NOTE: Manual transmission shown, automatic transmission is similar.

1. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.

2. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

3. CAUTIONS: Take extra care not to damage the mating faces.

Make sure that the area around the component is clean and free of foreign material.

NOTE: Some oil spillage is inevitable during this operation.

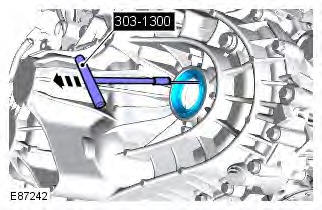

Special Tool(s): 303-1300

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Installation

1. CAUTION: Take extra care not to damage the seal.

Special Tool(s): 307-596

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

2. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

Lubricants, Fluids, Sealers and Adhesives

CAUTIONS:

* Do not use any lubricant other than that specified
+ Do not over lubricate

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

Capacities

CAUTION: * A final oil level/check/top-up must be carried out when the unit has been installed

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

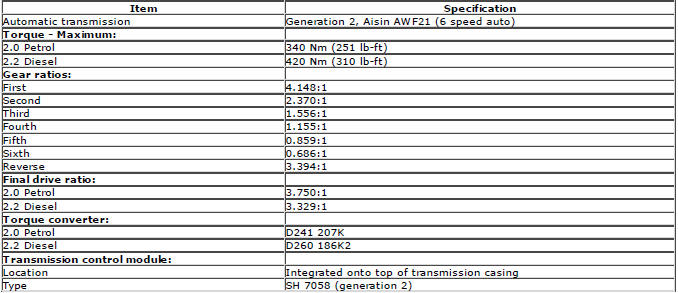

General Specification

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission

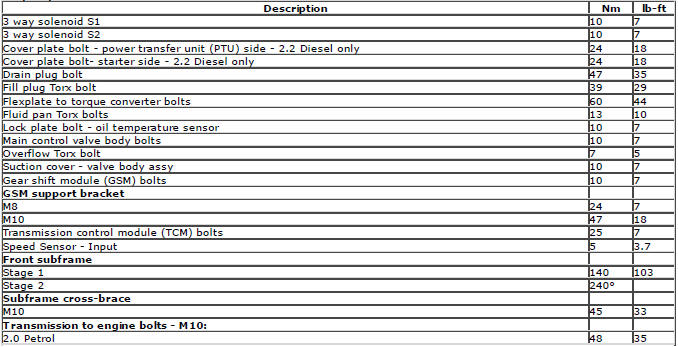

Torque Specifications

Range Rover Evoque. Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission
