Range Rover Evoque: Blower Motor RHD AWD/RHD FWD, RHD

Special Tool(s)

412-140
Remover/Installer, Blower Motor

Removal

NOTES:

Removal steps in this procedure may contain installation details.

Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

1. NOTE: The recirculation blend door must be closed in order for the removal of the recirculation blend door housing. Activate recirculation.

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

Vehicles with manual transmission

3. Refer to: Clutch Pedal - RHD (308-02 Clutch Controls - Vehicles With: M66 6-Speed Manual Transmission AWD, Removal and Installation).

All vehicles

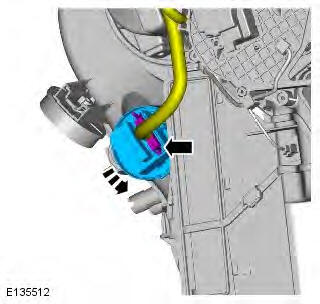

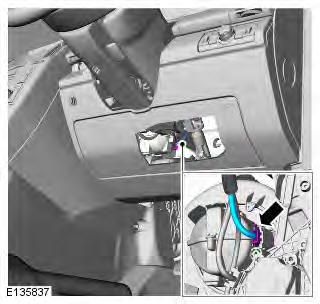

4.

Range Rover Evoque. Climate Control

5. Refer to: Central Junction Box (CJB) (418-00 Module Communications Network, Removal and Installation).

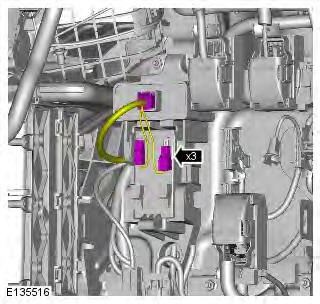

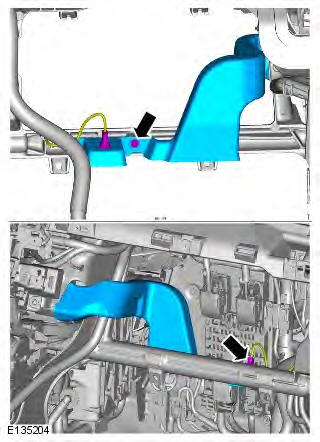

6. NOTE: LHD illustration shown, RHD is similar.

Range Rover Evoque. Climate Control

7.

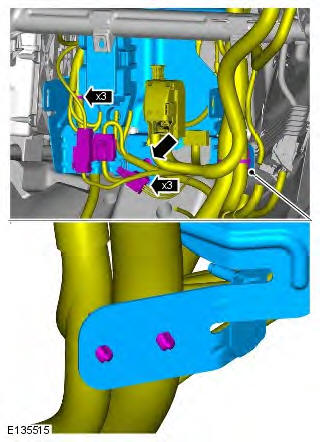

Range Rover Evoque. Climate Control

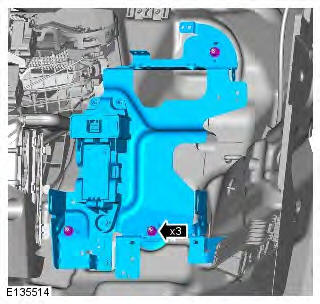

8. NOTE: LHD illustration shown, RHD is similar.

Torque: 10 Nm

Range Rover Evoque. Climate Control

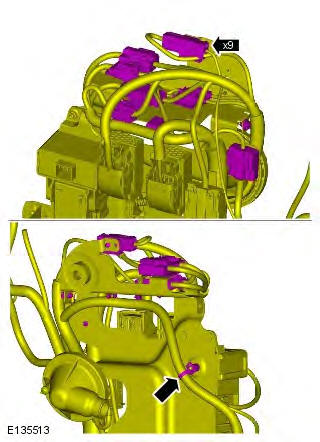

9.

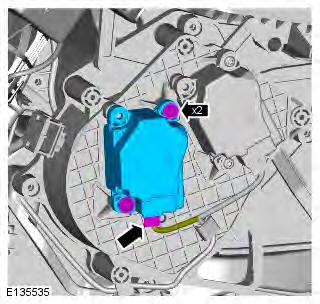

Range Rover Evoque. Climate Control

10.

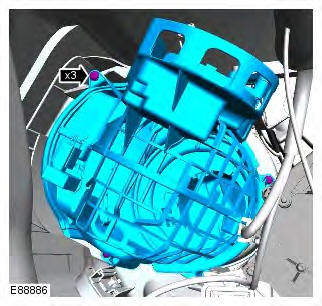

Range Rover Evoque. Climate Control

11.

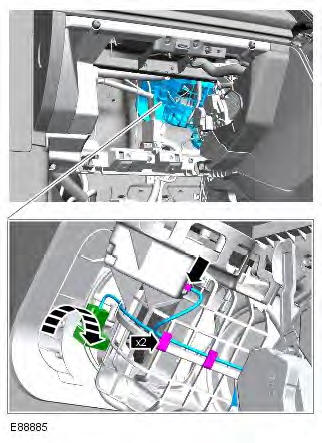

Range Rover Evoque. Climate Control

12.

Range Rover Evoque. Climate Control

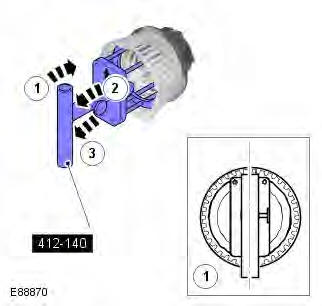

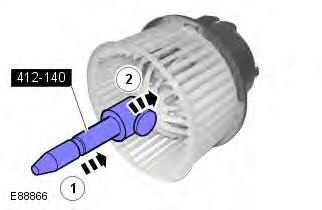

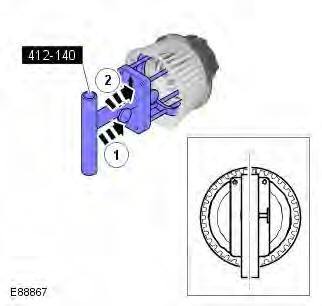

13. Special Tool(s): 412-140

Range Rover Evoque. Climate Control

14.

Range Rover Evoque. Climate Control

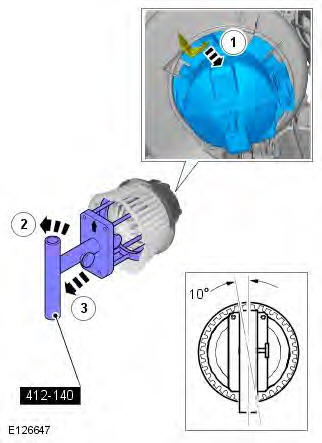

15. CAUTION: Make sure that the special tool is correctly located.

NOTE: With assistance remove the component.

Range Rover Evoque. Climate Control

Installation

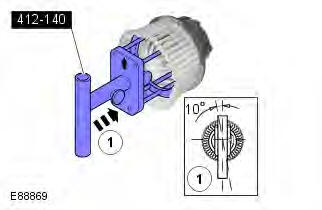

1.

Range Rover Evoque. Climate Control

2.

Range Rover Evoque. Climate Control

3. To install, reverse the removal procedure.

Blower Motor Resistor LHD AWD/LHD FWD

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

2. Refer to: Accelerator Pedal (310-02 Acceleration Control, Removal and Installation).

3.

Range Rover Evoque. Climate Control

Installation

1. To install, reverse the removal procedure.

Footwell Vent/Duct Blend Door Actuator LHD AWD/LHD FWD

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Refer to: Heater Core and Evaporator Core Housing (412-01 Climate Control, Removal and Installation).

3.

Range Rover Evoque. Climate Control

Installation

1. To install, reverse the removal procedure.

2. If a new component has been installed, configure using Land Rover approved diagnostic equipment.
