Range Rover Evoque: Engine Wiring Harness TD4 2.2L Diesel, Vehicles With: AWF21 6-Speed Automatic Transmission

Land Rover Range Rover Evoque L538 (2011–2018) Service Manual / Electrical Distribution & Electronic Feature Group / Wiring Harnesses / Engine Wiring Harness TD4 2.2L Diesel, Vehicles With: AWF21 6-Speed Automatic Transmission

Removal

CAUTIONS: Make sure that the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.

Take extra care not to damage the wiring harness clips.

NOTES: Some variation in the illustrations may occur, but the essential information is always correct.

Removal steps in this procedure may contain installation details.

Note the position of the wiring harnesses to aid installation.

1. Raise and support the vehicle.

2. Refer to: Battery Tray (414-01 Battery, Mounting and Cables, Removal and Installation).

3. Refer to: Secondary Bulkhead Center Panel - TD4 2.2L Diesel (501-02 Front End Body Panels, Removal and Installation).

4. Refer to: Transmission Control Module (TCM) - TD4 2.2L Diesel (307-01 Automatic Transmission/Transaxle - Vehicles With: AWF21 6-Speed Automatic Transmission, Removal and Installation).

5. Refer to: Starter Motor (303-06A Starting System - TD4 2.2L Diesel, Removal and Installation).

6. Refer to: Fuel Filter (310-01A Fuel Tank and Lines - TD4 2.2L Diesel, Removal and Installation).

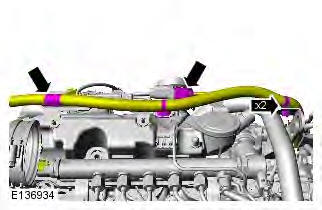

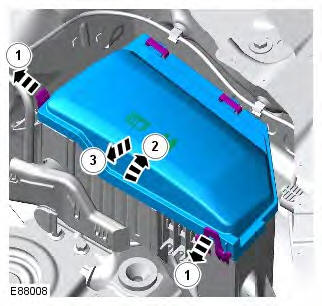

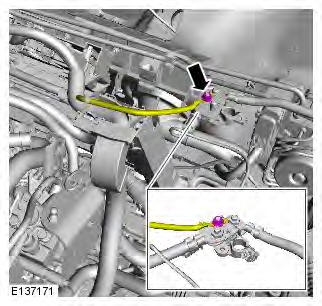

7.

Range Rover Evoque. Wiring Harnesses

8. Remove the LH front wheel arch liner.

Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

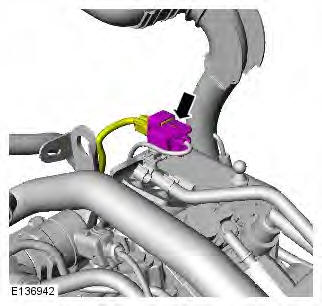

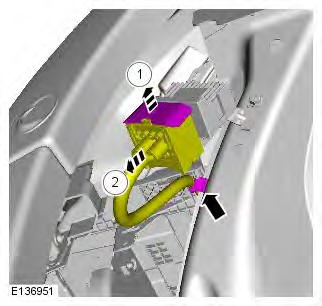

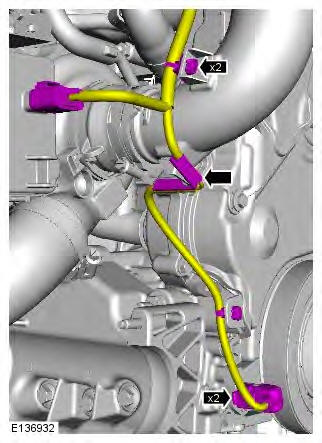

9.

Range Rover Evoque. Wiring Harnesses

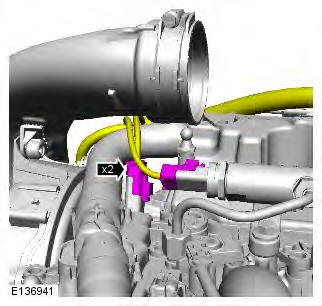

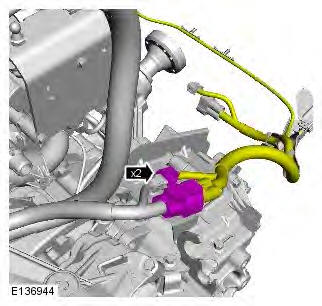

10.

Range Rover Evoque. Wiring Harnesses

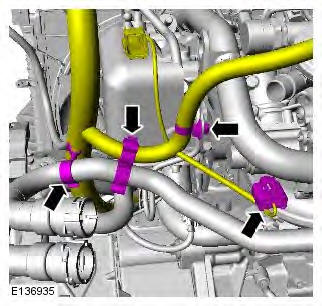

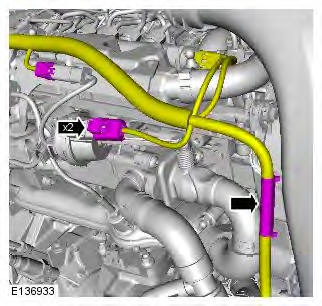

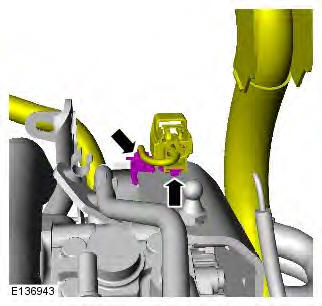

11.

Range Rover Evoque. Wiring Harnesses

12.

Range Rover Evoque. Wiring Harnesses

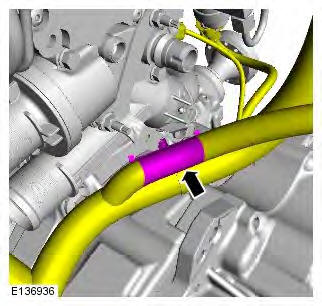

13.

Range Rover Evoque. Wiring Harnesses

14.

Range Rover Evoque. Wiring Harnesses

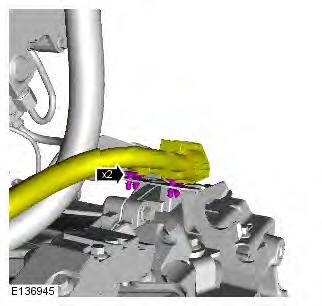

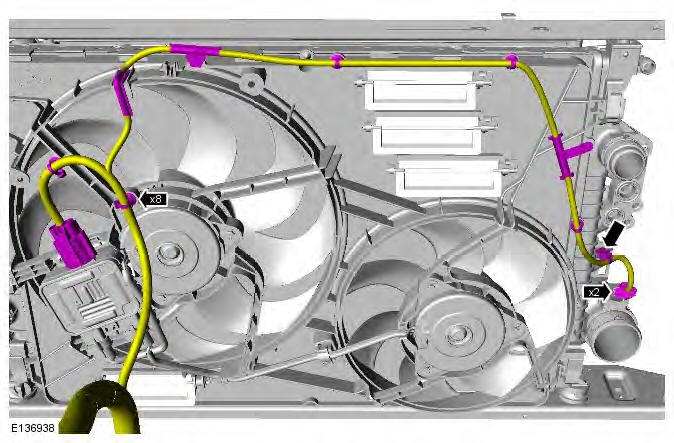

15.

Range Rover Evoque. Wiring Harnesses

16. Torque: 10 Nm

Range Rover Evoque. Wiring Harnesses

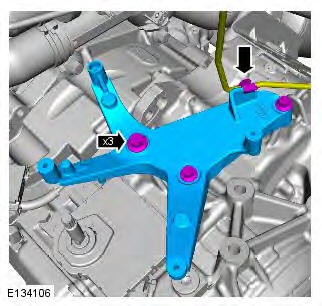

17. Torque:

Range Rover Evoque. Wiring Harnesses

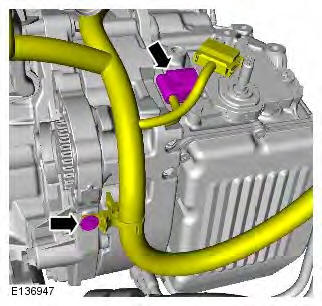

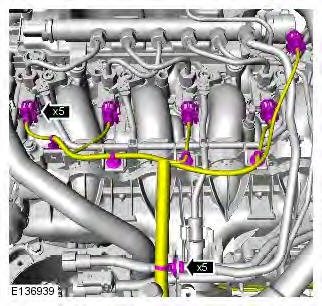

18.

Range Rover Evoque. Wiring Harnesses

19.

Range Rover Evoque. Wiring Harnesses

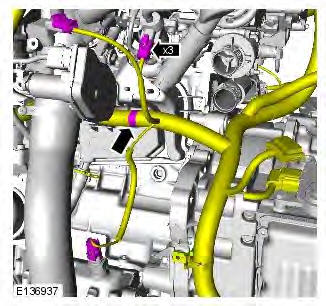

20.

Range Rover Evoque. Wiring Harnesses

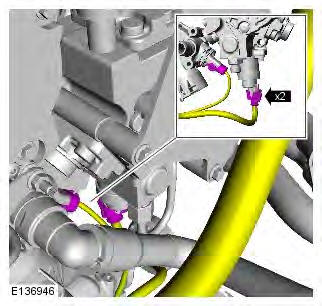

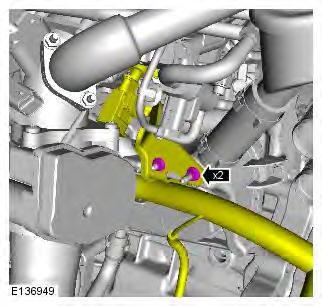

21.

Range Rover Evoque. Wiring Harnesses

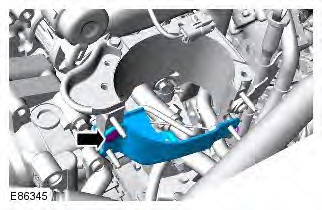

22. Torque: 10 Nm

Range Rover Evoque. Wiring Harnesses

23.

Range Rover Evoque. Wiring Harnesses

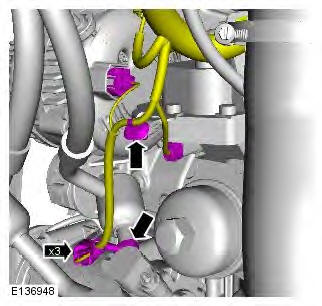

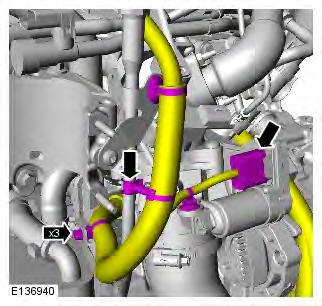

24.

Range Rover Evoque. Wiring Harnesses

25.

Range Rover Evoque. Wiring Harnesses

26.

Range Rover Evoque. Wiring Harnesses

27.

Range Rover Evoque. Wiring Harnesses

28.

Range Rover Evoque. Wiring Harnesses

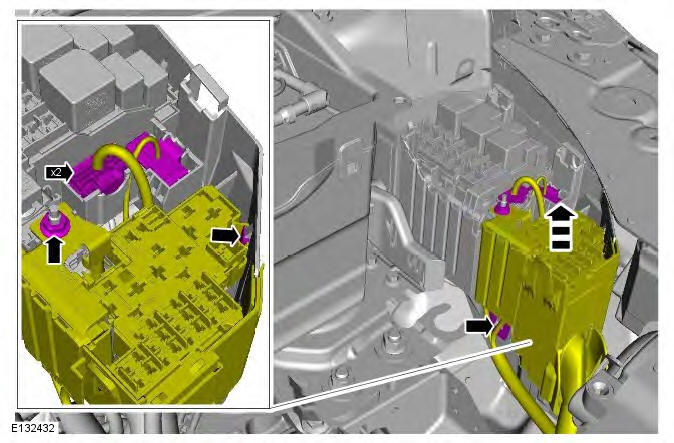

29. Torque: 8 Nm

Range Rover Evoque. Wiring Harnesses

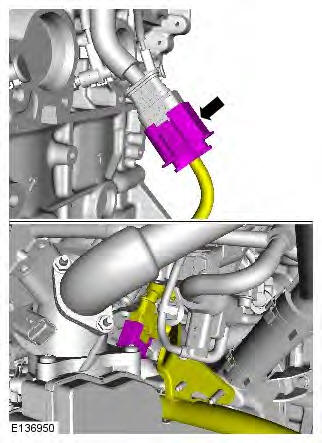

30.

Range Rover Evoque. Wiring Harnesses

31.

Range Rover Evoque. Wiring Harnesses

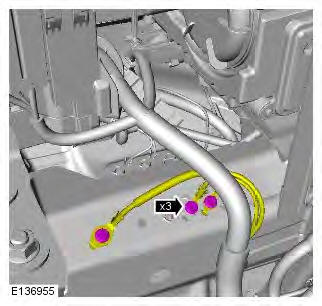

32. Torque: 10 Nm

Range Rover Evoque. Wiring Harnesses

33. Torque: 10 Nm

Range Rover Evoque. Wiring Harnesses

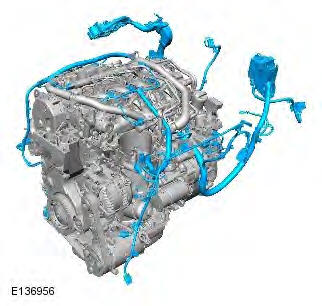

34. NOTE: Note the position of the wiring harnesses to aid installation.

Range Rover Evoque. Wiring Harnesses

Installation

1. CAUTIONS: Make sure that the wiring harness is not twisted or damaged on installation. Failure to follow this instruction may result in damage to the vehicle.

Make sure the the electrical harness is not trapped during the installation.

NOTE: Make sure that the harness is routed to the position noted on removal.

To install, reverse the removal procedure.
