Range Rover Evoque: Identification Codes
VIN Number
NOTES:
Some variation in the illustrations may occur, but the essential
information is always correct.
The body VIN is located behind the spare wheel well under the rear carpet.

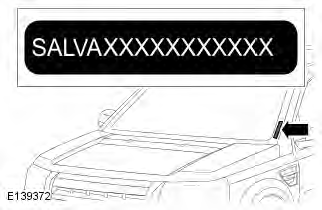

Windscreen VIN - UK, Europe and ROW
![Range Rover Evoque. Windscreen VIN - UK, Europe and ROW](images/books/3096/evoque_identification_codes_379.gif)

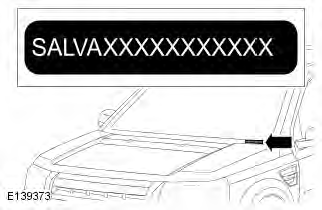

Windscreen VIN - China only
![Range Rover Evoque. Windscreen VIN - China only](images/books/3096/evoque_identification_codes_380.gif)

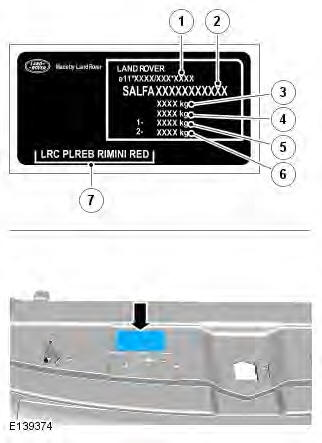

VIN label - UK, Europe and ROW
![Range Rover Evoque. VIN label - UK, Europe and ROW](images/books/3096/evoque_identification_codes_381.jpg)
- Type/Approval Number - If shown
- VIN Number
- Gross Vehicle Weight
- Gross Trailer Weight
- Front Axle Weight
- Rear Axle Weight
- Colour Code Group

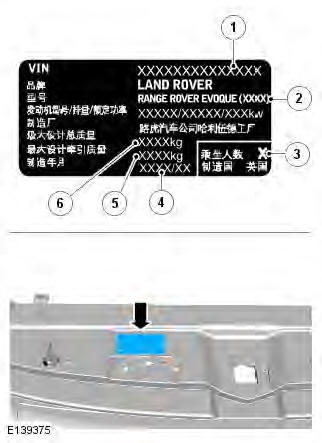

VIN label - China
![Range Rover Evoque. VIN label - China](images/books/3096/evoque_identification_codes_382.jpg)
- Vehicle VIN Number
- Engine Type/Capacity/Power
- Occupancy
- Build Date
- Gross Vehicle Weight
- Gross Trailer Weight

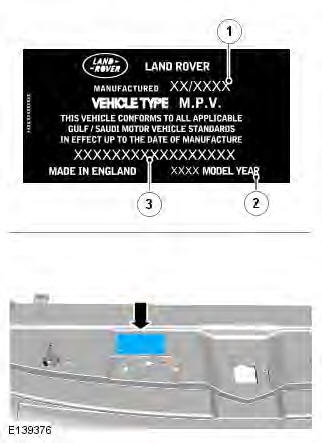

VIN label - Gulf markets
![Range Rover Evoque. VIN label - Gulf markets](images/books/3096/evoque_identification_codes_383.jpg)
- Build Date
- Model year
- Vehicle VIN Number

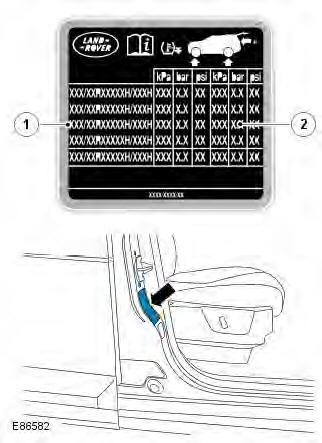

Tire Data Label - UK, Europe and ROW
![Range Rover Evoque. Tire Data Label - UK, Europe and ROW](images/books/3096/evoque_identification_codes_384.jpg)
- Tire Size
- Tire Pressures

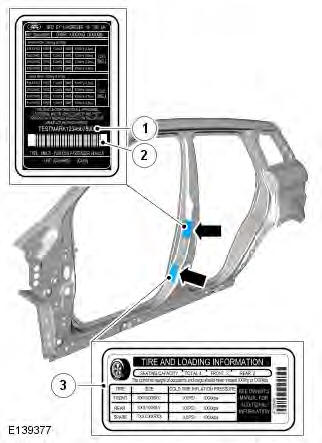

Certification/Tire data label - NAS only
![Range Rover Evoque. Certification/Tire data label - NAS only](images/books/3096/evoque_identification_codes_385.jpg)
- Vehicle VIN Number
- Bar Code Identification
- Tire Pressures

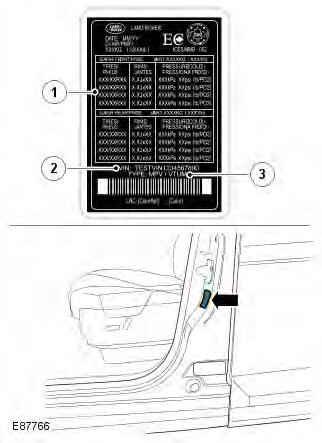

Tire pressure label - Canada only
![Range Rover Evoque. Tire pressure label - Canada only](images/books/3096/evoque_identification_codes_386.jpg)
- Tire Pressures
- Vehicle VIN Number
- Vehicle Type

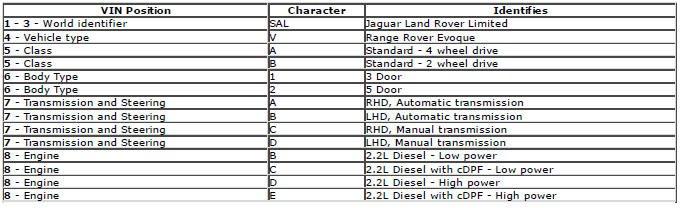

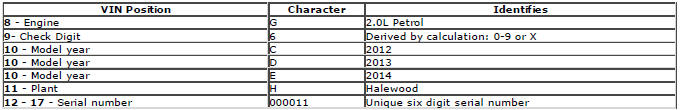

VIN number identification
VIN number - UK, EU and ROW
![Range Rover Evoque. VIN number identification](images/books/3096/evoque_identification_codes_387.gif)
![Range Rover Evoque. VIN number identification](images/books/3096/evoque_identification_codes_388.jpg)
![Range Rover Evoque. VIN number identification](images/books/3096/evoque_identification_codes_389.jpg)

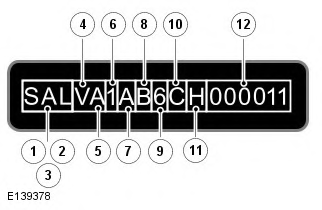

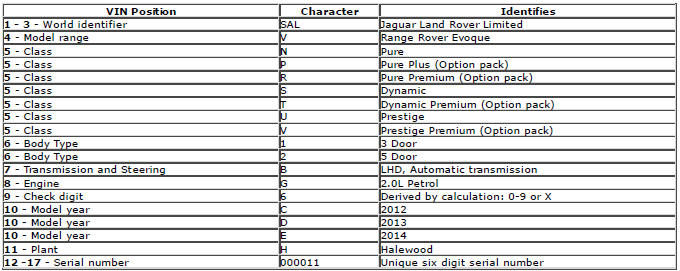

VIN number - NAS and Canada
![Range Rover Evoque. VIN number - NAS and Canada](images/books/3096/evoque_identification_codes_390.gif)
![Range Rover Evoque. VIN number - NAS and Canada](images/books/3096/evoque_identification_codes_391.jpg)
2.2 Liter Diesel Engine Serial Number
![Range Rover Evoque. 2.2 Liter Diesel Engine Serial Number](images/books/3096/evoque_identification_codes_392.jpg)
The 2.2 Liter Diesel Engine Serial Number is stamped on the RH side of the
cylinder block.
2.0 Liter Petrol Engine Serial Number
![Range Rover Evoque. 2.0 Liter Petrol Engine Serial Number](images/books/3096/evoque_identification_codes_393.jpg)
The 2.0 Liter Petrol Engine Serial Number is etched into the RH side of the
engine block.

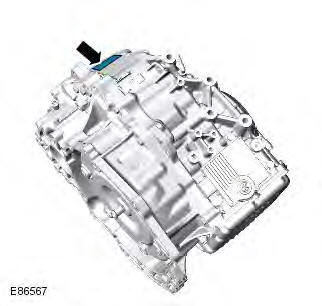

Automatic Transmission Serial Number
![Range Rover Evoque. Automatic Transmission Serial Number](images/books/3096/evoque_identification_codes_394.jpg)
The Automatic Transmission Serial Number is stamped on the LH side of the
transmission casing.

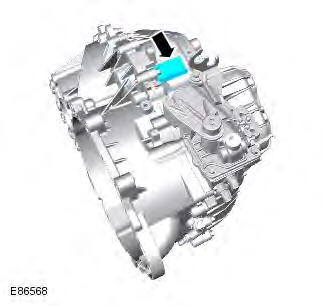

Manual Transmission Serial Number
![Range Rover Evoque. Manual Transmission Serial Number](images/books/3096/evoque_identification_codes_395.jpg)
The Manual Transmission Serial Number is stamped on the transmission casing.

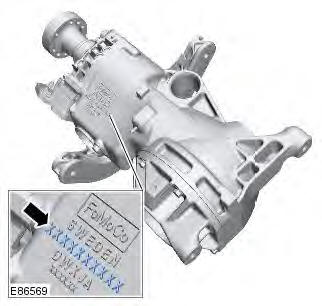

Rear Differential Serial Number
![Range Rover Evoque. Rear Differential Serial Number](images/books/3096/evoque_identification_codes_396.jpg)
The Rear Differential Serial Number is stamped on the side of the
differential casing.

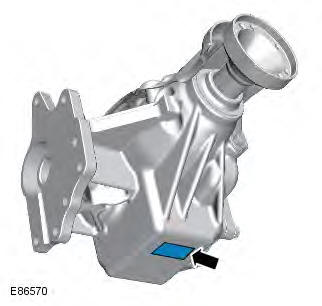

Power transfer unit
![Range Rover Evoque. Power transfer unit](images/books/3096/evoque_identification_codes_397.jpg)
The number is stamped on the underside of the casing.
