Range Rover Evoque: Instrument Panel GTDi 2.0L Petrol

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. NOTE: The procedure must be carried out on both sides. Refer to: Cowl Side Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

4. Refer to: Steering Column (211-04 Steering Column, Removal and Installation).

5. Refer to: Windshield Wiper Motor (501-16 Wipers and Washers, Removal and Installation).

6. Refer to: Thermostatic Expansion Valve - GTDi 2.0L Petrol (412-01 Climate Control, Removal and Installation).

7. NOTE: The procedure must be carried out on both sides. Refer to: Front Door (501-03 Body Closures, Removal and Installation).

8. Refer to: Glove Compartment (501-12 Instrument Panel and Console, Removal and Installation).

9. Refer to: Front Seat (501-10 Seating, Removal and Installation).

10. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

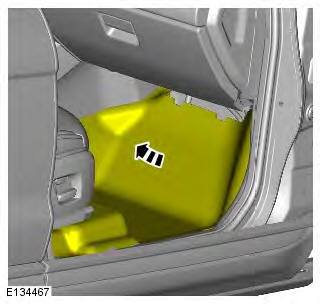

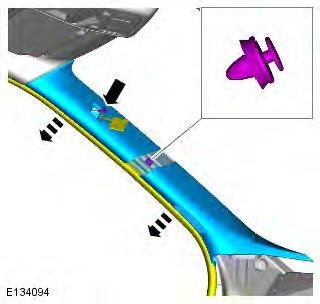

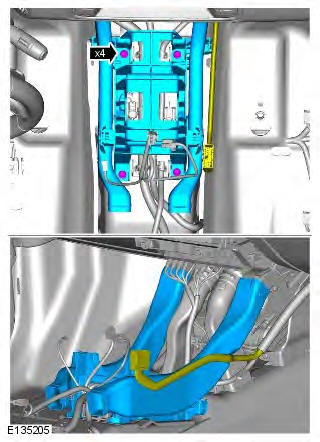

11. NOTE: The step must be carried out on both sides.

Torque: 6 Nm

Range Rover Evoque. Instrument Panel and Console

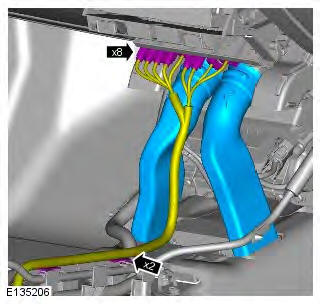

12. NOTE: The step must be carried out on both sides.

Range Rover Evoque. Instrument Panel and Console

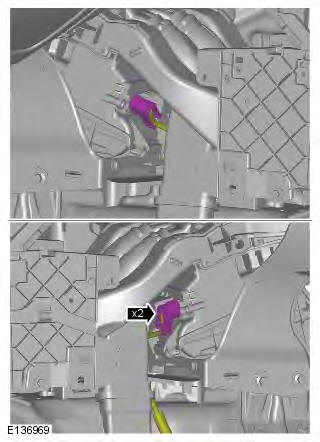

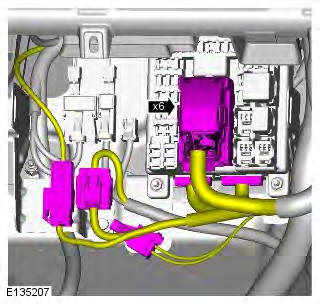

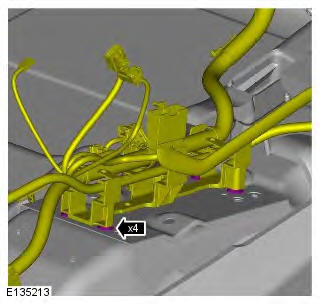

13.

Range Rover Evoque. Instrument Panel and Console

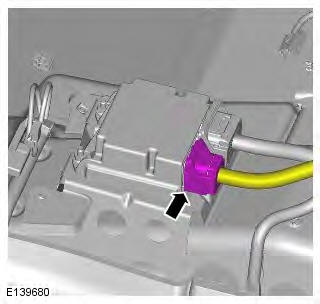

14.

Range Rover Evoque. Instrument Panel and Console

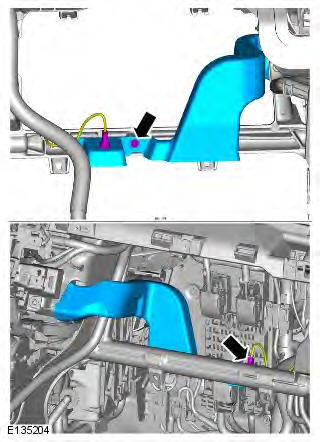

15.

Range Rover Evoque. Instrument Panel and Console

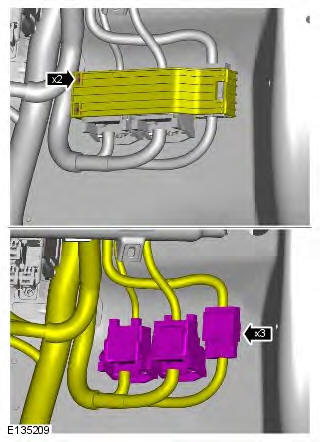

16.

Range Rover Evoque. Instrument Panel and Console

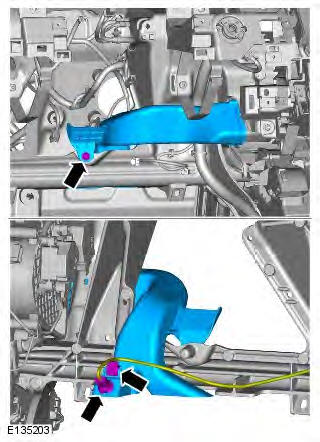

17.

Range Rover Evoque. Instrument Panel and Console

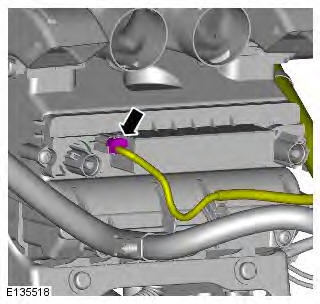

18.

Range Rover Evoque. Instrument Panel and Console

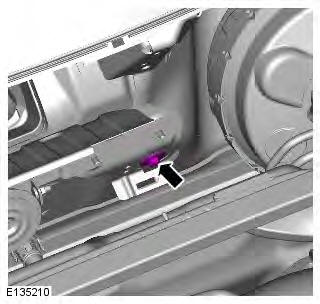

19.

Range Rover Evoque. Instrument Panel and Console

20.

Range Rover Evoque. Instrument Panel and Console

21.

Range Rover Evoque. Instrument Panel and Console

22.

Range Rover Evoque. Instrument Panel and Console

23.

Range Rover Evoque. Instrument Panel and Console

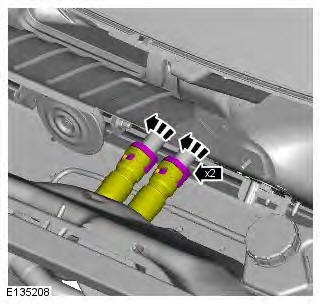

24. CAUTION: Make sure that all openings are sealed.

Use new blanking caps.

Clamp the hoses to minimize coolant loss.

Range Rover Evoque. Instrument Panel and Console

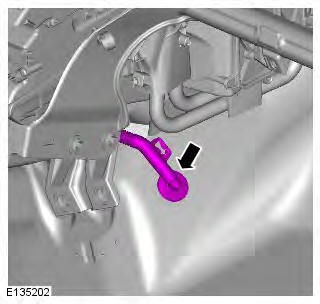

25. Torque: 40 Nm

Range Rover Evoque. Instrument Panel and Console

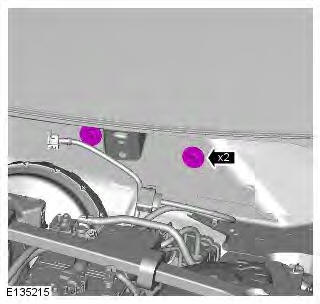

26. Torque: 24 Nm

Range Rover Evoque. Instrument Panel and Console

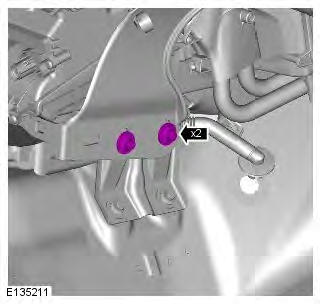

27. NOTES:

Right-hand shown, left-hand similar.

The step must be carried out on both sides.

Torque: 24 Nm

Range Rover Evoque. Instrument Panel and Console

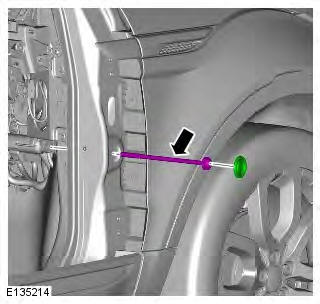

28. NOTES:

Right-hand shown, left-hand similar.

The step must be carried out on both sides.

Torque: 40 Nm

Range Rover Evoque. Instrument Panel and Console

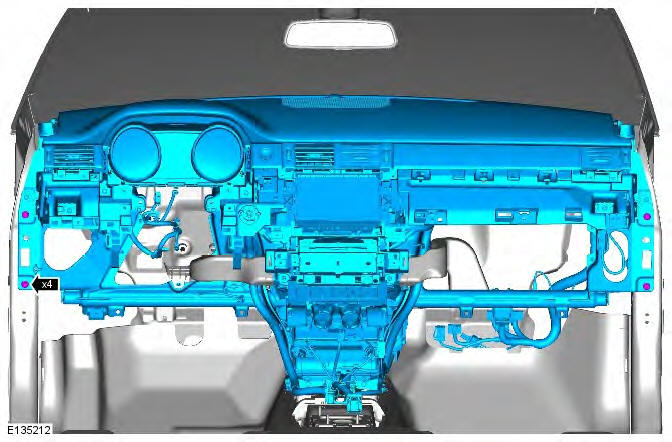

29. CAUTION: Protect the surrounding trim to avoid damage.

NOTE: With assistance remove the component.

Torque: 24 Nm

Range Rover Evoque. Instrument Panel and Console

Installation

1. To install, reverse the removal procedure.

2. Check and top-up the coolant if required.
