Range Rover Evoque: Oil Pump
Removal
NOTES:
Some illustrations may show the engine removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.
1. Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).
2. WARNING: Make sure to support the vehicle with axle stands. Raise and support the vehicle.
3. Refer to: Timing Cover (303-01B Engine - GTDi 2.0L Petrol, Removal and Installation).
4. Refer to: Air Cleaner (303-12B Intake Air Distribution and Filtering - GTDi 2.0L Petrol, Removal and Installation).
5. Refer to: Air Conditioning (A/C) Compressor - GTDi 2.0L Petrol (412-01 Climate Control, Removal and Installation).
6. Refer to: Engine Oil Draining and Filling (303-01B Engine - GTDi 2.0L Petrol, General Procedures).

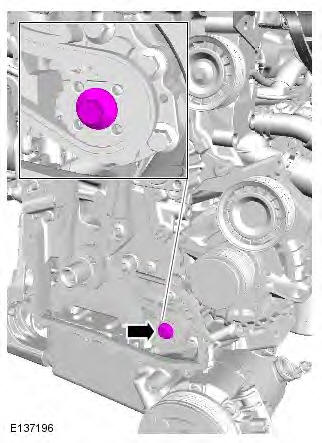

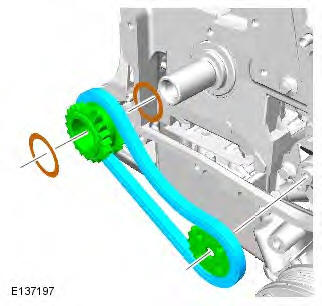

7. CAUTION: Using a suitable tool, hold the oil pump gear when removing the centre bolt.
- Torque: 25 Nm

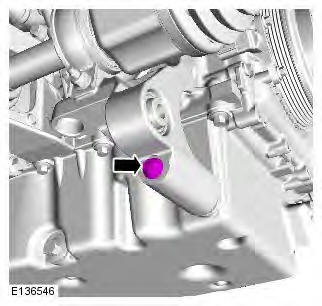

8.

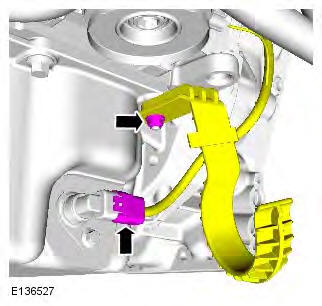

9. Torque: 8 Nm

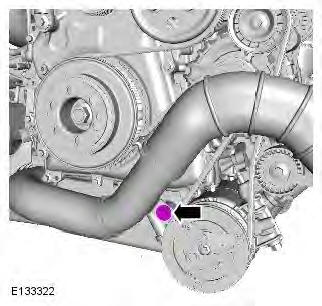

10. Torque: 25 Nm

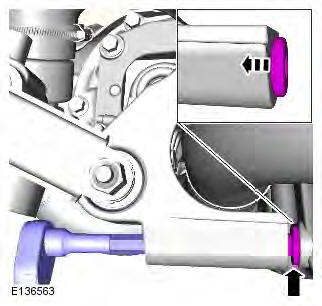

11. Torque: 35 Nm
12. Torque: 4 Nm
13.

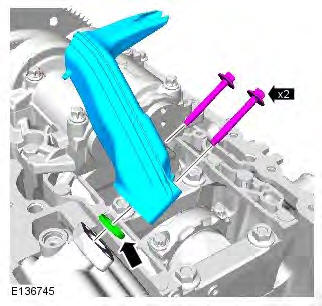

14. Torque: 10 Nm

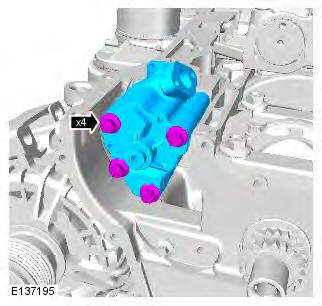

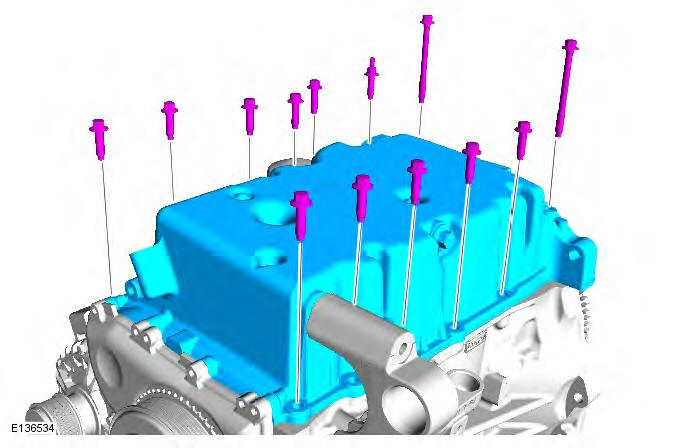

15. NOTE: During installation tighten the bolts simultaneously or crosswise.
Torque:
- Stage 1: 10 Nm
- Stage 2: 20 Nm
Installation
1. NOTE: Make sure that all traces of the old sealant are removed from the mating faces. To install, reverse the removal procedure.
2. NOTES: Install a new gasket.

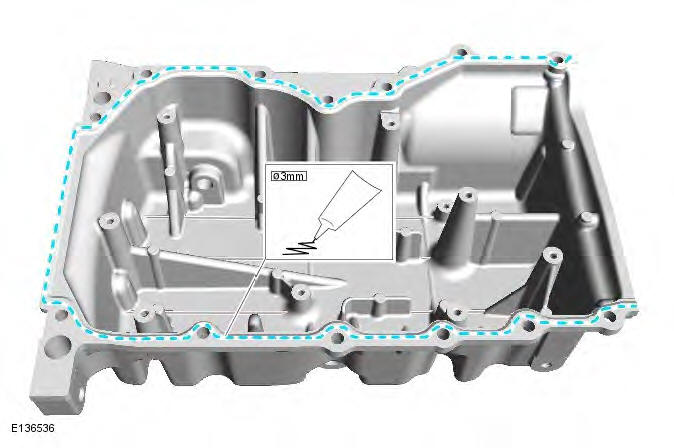

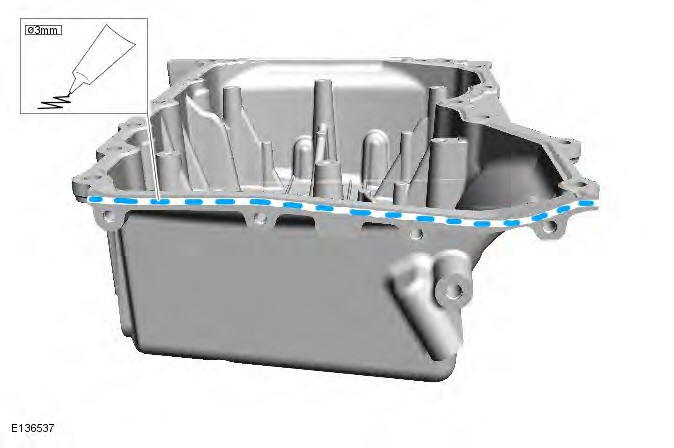

Note - Apply sealant WSE-M4G323-A6 in a 2-3mm diameter on the engine oil sump as shown. The component must be installed and tightened within 10 minutes of sealant application.
3. NOTE: Note - TAS | Engine | Apply sealant WSE-M4G323-A6 in a 2-3mm diameter on the engine front cover as shown. The component must be installed and tightened within 10 minutes of sealant application.
