Range Rover Evoque: Rear Quarter Trim Panel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Rear Seat Cushion (501-10 Seating, Removal and Installation).

2. Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

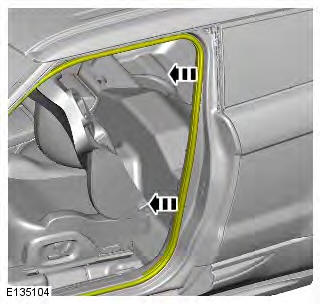

3.

Range Rover Evoque. Interior Trim and Ornamentation

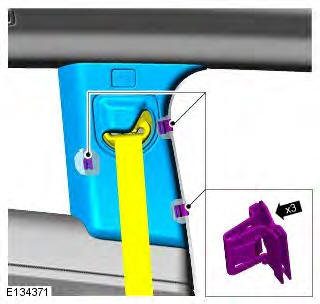

4.

Range Rover Evoque. Interior Trim and Ornamentation

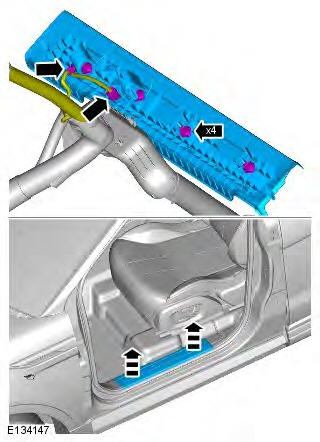

5.

Range Rover Evoque. Interior Trim and Ornamentation

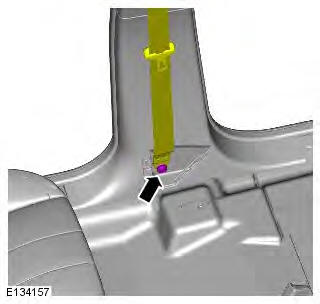

6. CAUTION: Discard the bolt.

NOTE: 5-door illustration shown, 3-door is similar.

Torque: 45 Nm

Range Rover Evoque. Interior Trim and Ornamentation

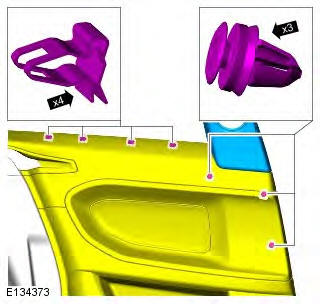

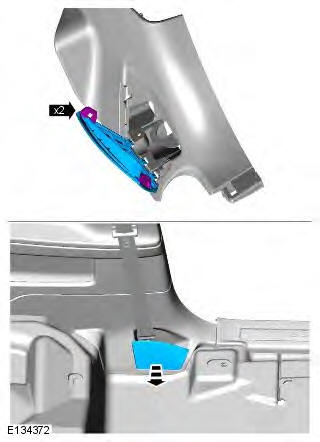

7.

Range Rover Evoque. Interior Trim and Ornamentation

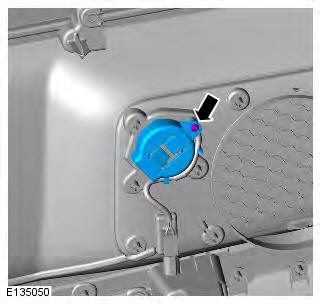

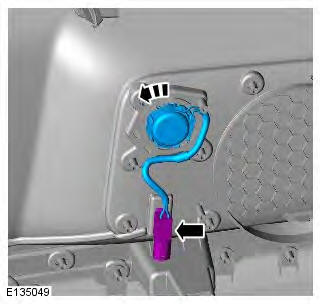

8. NOTE: Do not disassemble further if the component is removed for access only.

Range Rover Evoque. Interior Trim and Ornamentation

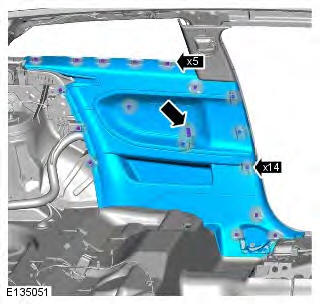

9.

Range Rover Evoque. Interior Trim and Ornamentation

Installation

1. CAUTIONS:

Make sure that a new bolt is installed.

Make sure the safety belt is secure and correctly installed.

NOTE: Make sure the safety belt is operating correctly.

To install, reverse the removal procedure.

B-Pillar Upper Trim Panel 3-Door

Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Range Rover Evoque. Interior Trim and Ornamentation

2.

Range Rover Evoque. Interior Trim and Ornamentation

3. CAUTION: Discard the bolt.

NOTE: 5-door illustration shown, 3-door is similar.

Torque: 45 Nm

Range Rover Evoque. Interior Trim and Ornamentation

4.

Range Rover Evoque. Interior Trim and Ornamentation

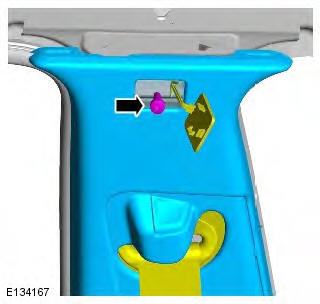

5. Torque: 6 Nm

Range Rover Evoque. Interior Trim and Ornamentation

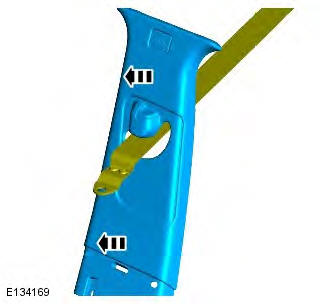

6.

Range Rover Evoque. Interior Trim and Ornamentation

7. NOTE: 5-door illustration shown, 3-door is similar.

Range Rover Evoque. Interior Trim and Ornamentation

Installation

1. WARNING: Make sure that a new bolt is installed.

CAUTION: Make sure the safety belt is secure and correctly installed.

NOTE: Make sure the safety belt is operating correctly.

To install, reverse the removal procedure.

Interior Trim and Ornamentation

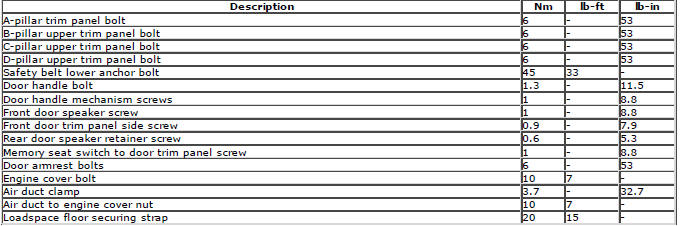

Torque Specifications

Range Rover Evoque. Interior Trim and Ornamentation
