Range Rover Evoque: Restraints Control Module (RCM)

Removal

NOTES:

The RCM must be replaced after every time any SRS component has been deployed.

Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect the battery ground cable.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

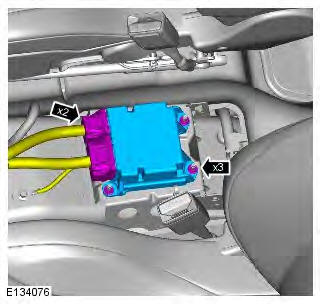

3. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

4. Torque: 10 Nm

Range Rover Evoque. Supplemental Restraint System

Installation

1. CAUTION: If a new component has been installed, configure using Land Rover approved diagnostic equipment. To install, reverse the removal procedure.

Driver Air Bag Module

Removal

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

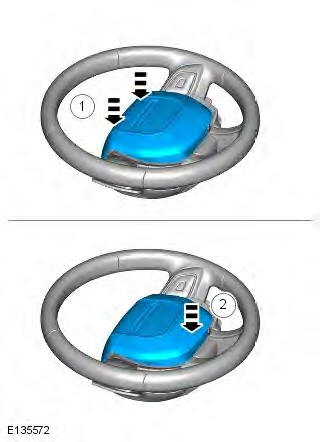

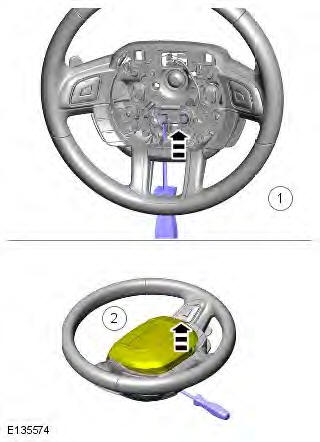

2.

Range Rover Evoque. Supplemental Restraint System

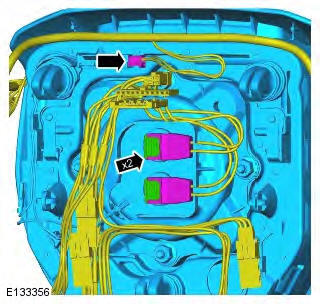

3.

Range Rover Evoque. Supplemental Restraint System

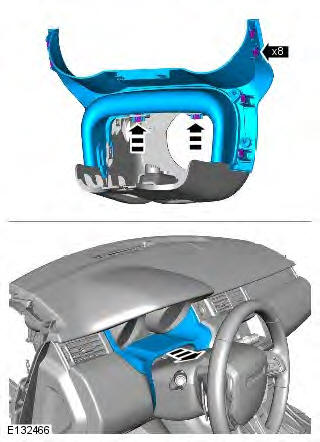

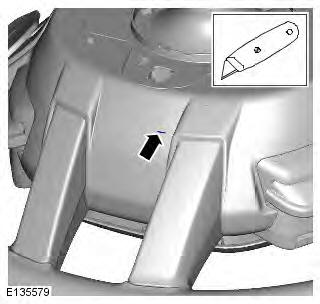

4.

Range Rover Evoque. Supplemental Restraint System

5. CAUTION: Take extra care not to damage the wiring harnesses.

Range Rover Evoque. Supplemental Restraint System

Installation

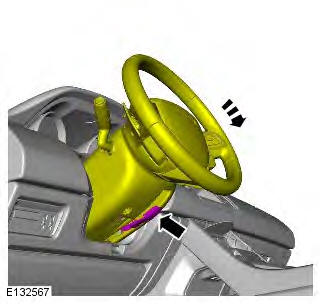

1. CAUTION: Take extra care not to damage the wiring harnesses.

Range Rover Evoque. Supplemental Restraint System

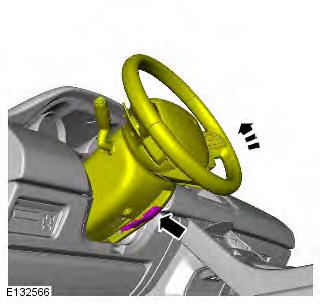

2. WARNING: Driver air bag module installation can be confirmed by hearing 3 audible clicks, 1 for each clip.

CAUTION: Make sure the wiring harness is installed to its original position.

Range Rover Evoque. Supplemental Restraint System

3. If a new component has been installed, configure using Land Rover approved diagnostic equipment.

Driver Lower Air Bag Module

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the SRS system safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

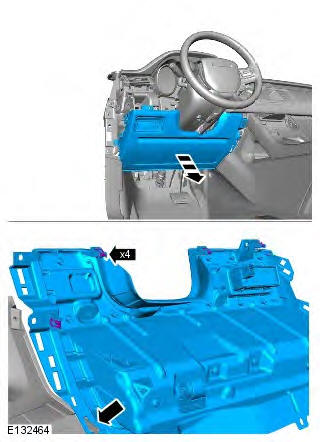

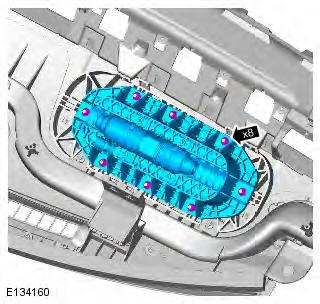

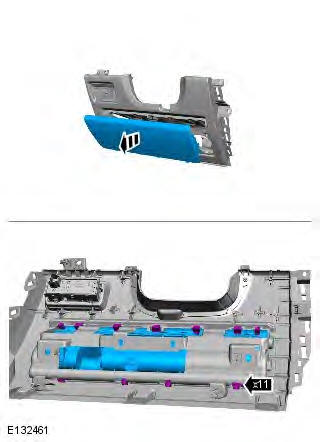

2.

Range Rover Evoque. Supplemental Restraint System

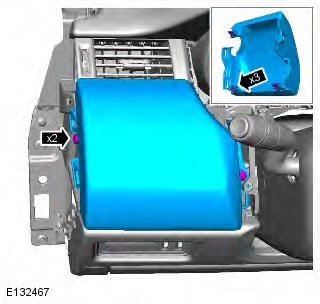

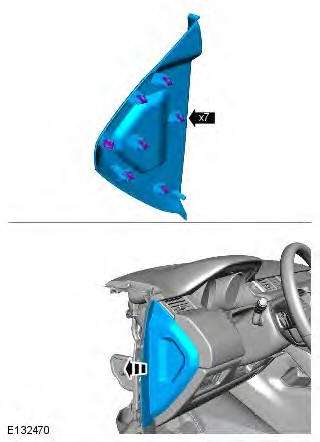

3.

Range Rover Evoque. Supplemental Restraint System

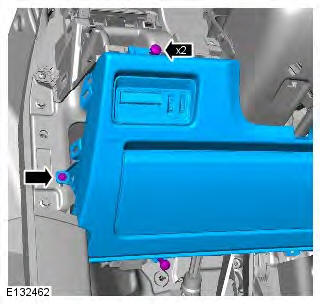

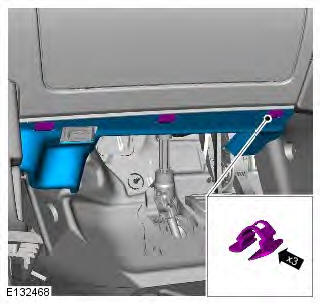

4.

Range Rover Evoque. Supplemental Restraint System

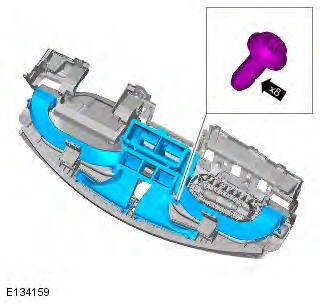

5.

Range Rover Evoque. Supplemental Restraint System

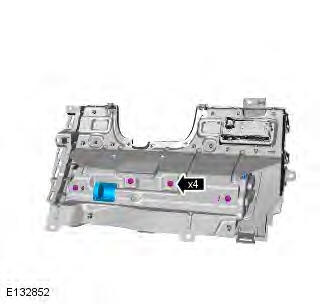

6. Torque: 6 Nm

Range Rover Evoque. Supplemental Restraint System

7.

Range Rover Evoque. Supplemental Restraint System

8.

Range Rover Evoque. Supplemental Restraint System

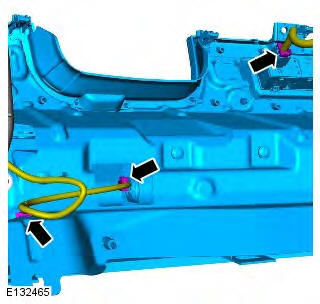

9. Torque:

M6 bolt 6 Nm
Screw 8 Nm

Range Rover Evoque. Supplemental Restraint System

10. Torque: 6 Nm

Range Rover Evoque. Supplemental Restraint System

11.

Range Rover Evoque. Supplemental Restraint System

12.

Range Rover Evoque. Supplemental Restraint System

13. Torque: 6 Nm

Range Rover Evoque. Supplemental Restraint System

14.

Range Rover Evoque. Supplemental Restraint System

Installation

1. To install, reverse the removal procedure.

Passenger Air Bag Module

Removal

WARNINGS:

It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.

Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first.

Never reverse connect the battery.

NOTES:

Removal steps in this procedure may contain installation details.

If the SRS component is to be replaced, the bar code of the new unit must be recorded.

1. Make the air bag supplemental restraint system (SRS) safe.

Refer to: Standard Workshop Practices (100-00 General Information, Description and Operation).

2. Disconnect both battery cables. Disconnect the ground cable first.

Refer to: Specifications (414-01 Battery, Mounting and Cables, Specifications).

3. Refer to: Instrument Panel Upper Section (501-12 Instrument Panel and Console, Removal and Installation).

4. NOTE: LHD illustration shown, RHD is similar.

Range Rover Evoque. Supplemental Restraint System

5. NOTE: LHD illustration shown, RHD is similar. Torque: 4.8 Nm

Range Rover Evoque. Supplemental Restraint System

Installation

1. To install, reverse the removal procedure.
