Range Rover Evoque: Using the interior lights

Interior lights list

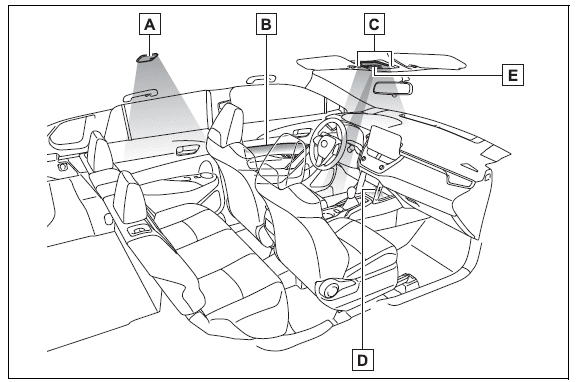

Location of the interior lights

Interior lights list

  1. Rear interior light
  2. Door trim lights (if equipped)
  3. Front interior/personal lights
  4. Center tray light (if equipped)
  5. Front cup holder light (if equipped)

Operating the interior lights

■ Front

Interior lights list

  1. Turns the door position on/off

When a door is opened while the door position is on, the lights turn on.

  1. Turns the lights on/off

■ Rear

Interior lights list

Turns the lights on/off

When the door position is on for the front interior lights, the rear interior light will turn on when a door is open and turn off when all of them are closed.

When the rear interior light is on linked to the door position for the front interior lights, it will not turn off even though the switch is pressed.

Operating the personal lights

Interior lights list

Turns the lights on/off

■Illuminated entry system

The lights automatically turn on/off according to the engine switch mode (position), the presence of the electronic key (vehicles with a smart key system), whether the doors are locked/unlocked, and whether the doors are opened/closed.

■To prevent the battery from being discharged

If the interior lights remain on when the engine switch is turned off, the lights will go off automatically after 20 minutes.

■Battery-saving function

In the following situations, the illuminated entry system may not operate properly.

The electronic key has been left in an area of approximately 11 ft. (3.5 m) of the outside of the vehicle for 40 seconds or longer.

■Automatic illumination of the interior lights

If any of the SRS airbags deploy (inflate) or in the event of a strong rear impact, the interior lights will turn on automatically. The interior lights will turn off automatically after approximately 20 minutes.

The interior lights can be turned off manually. However, in order to help prevent further collisions, it is recommended that they be left on until safety can be ensured. (The interior lights may not turn on automatically depending on the force of the impact and conditions of the collision.)


Some functions can be customized.


■To prevent battery discharge

Do not leave the lights on longer than necessary when the engine is not running.
